EX50-SA / EX55-SA / EX5310-AU / EX5810-AU
4
-
36
For agricultural tires, make sure to
install them with their arrow marks on
their side pointing to the front driving
direction.
The tire is correctly installed if the
tread mark "V" on the ground is
shown correctly, not up side down,
while the tractor is moving forward.
WHEEL INSTALLATION DIRECTION
ADDITIONAL WEIGHT(OPTIONAL)
ADDITIONAL FRONT WEIGHT

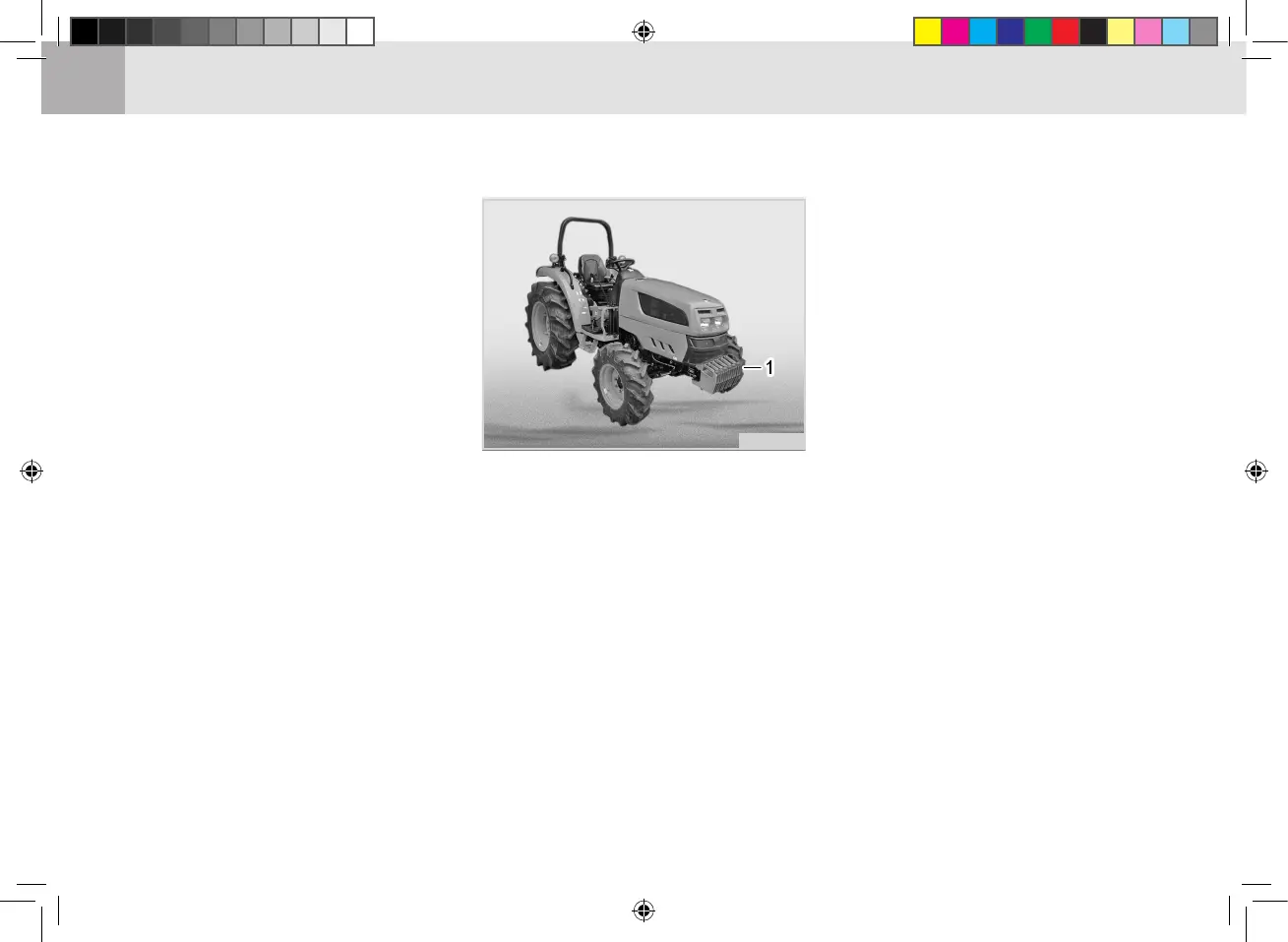

(1) Additional Front Weight
If the loader is not installed, attach a
weight to the front frame of the trac-
tor as a safety measure.
If a heavy implement is installed at
the rear or when towing a heavy
trailer, the front wheels may be lifted.
Add sufficient weight to keep steer
ability and to prevent rollover.
If sufficient weight, such as front
loader, is applied to the front wheels,
remove the extra front weight.
If the front tires are heavily loaded
and it becomes hard to steer the
tractor, the tires can be worn faster
and the durability of the front axle
can be deteriorated.
TE5O413A
