DESCRIPTION OF OPERATING SYSTEM
4
-
37
H11O4D4A

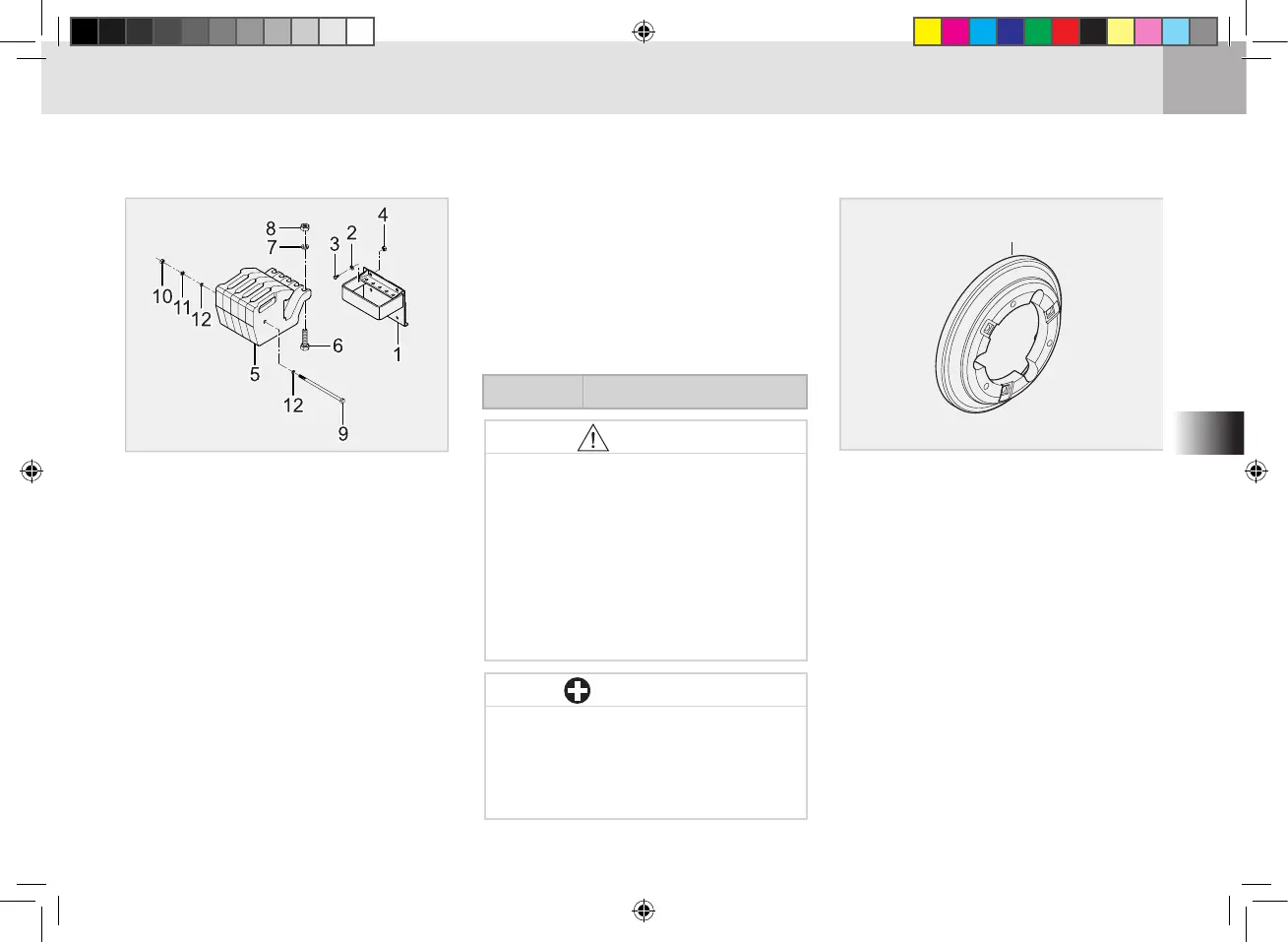

(1) Front Bracket
(2) Spring Washer
(3) Bolt
(4) Nut
(5) Balance Weight
(6) Bolt
(7) Spring Washer
(8) Nut
(9) Front Weight Bolt
(10) Nut
(11) Spring Washer
(12) Plain Washer
COMPONENTS FOR ADDITIONAL
FRONT WEIGHT
1
H11O4E1A
(1) Rear Weight
ADDITIONAL REAR WEIGHT
The rear weight is used to maximize
the draft of the tractor by increasing
the grip of the rear wheels when us-
ing a heavy trailer or plow.
When installing or removing a
weight,alwayscheckthetireination
pressure and adjust it as necessary.
The front weights are available at the
KIOTI
Dealer.
For required number
of weights, consult your local
KIOTI
Dealer.
•
Additional weight might be
needed for transporting heavy
implements.
•
Reduce the speed regardless
of additional weight when
driving on a bumpy or rough
road with the implement lifted.
The tractor can roll over.
CAUTION
•
Attach only required amount
of weight.
•
The life of the axle or wheel
can be shortened.
IMPORTANT
Max. load
17 kg x 6 Pieces (224 lbs)
