3. When the cylinder is contracted,
the hydraulic fluid returned from
the cylinder is drained to the trans-
mission through the draining circuit
as the operating lever is operated
to the opposite direction from the
expansion position.
It is recommended to use the
double acting cylinder instead
of the single acting cylinder if
the implement will be operated
frequently and continuously.
If using the single acting cyl-
inder too frequently or for an
extended period of time, the
hydraulic fluid can be over-
heated, resulting in deteriora-
tion of the hydraulic parts’ du-
rability as the main relief valve
opens at cylinder contraction.
IMPORTANT

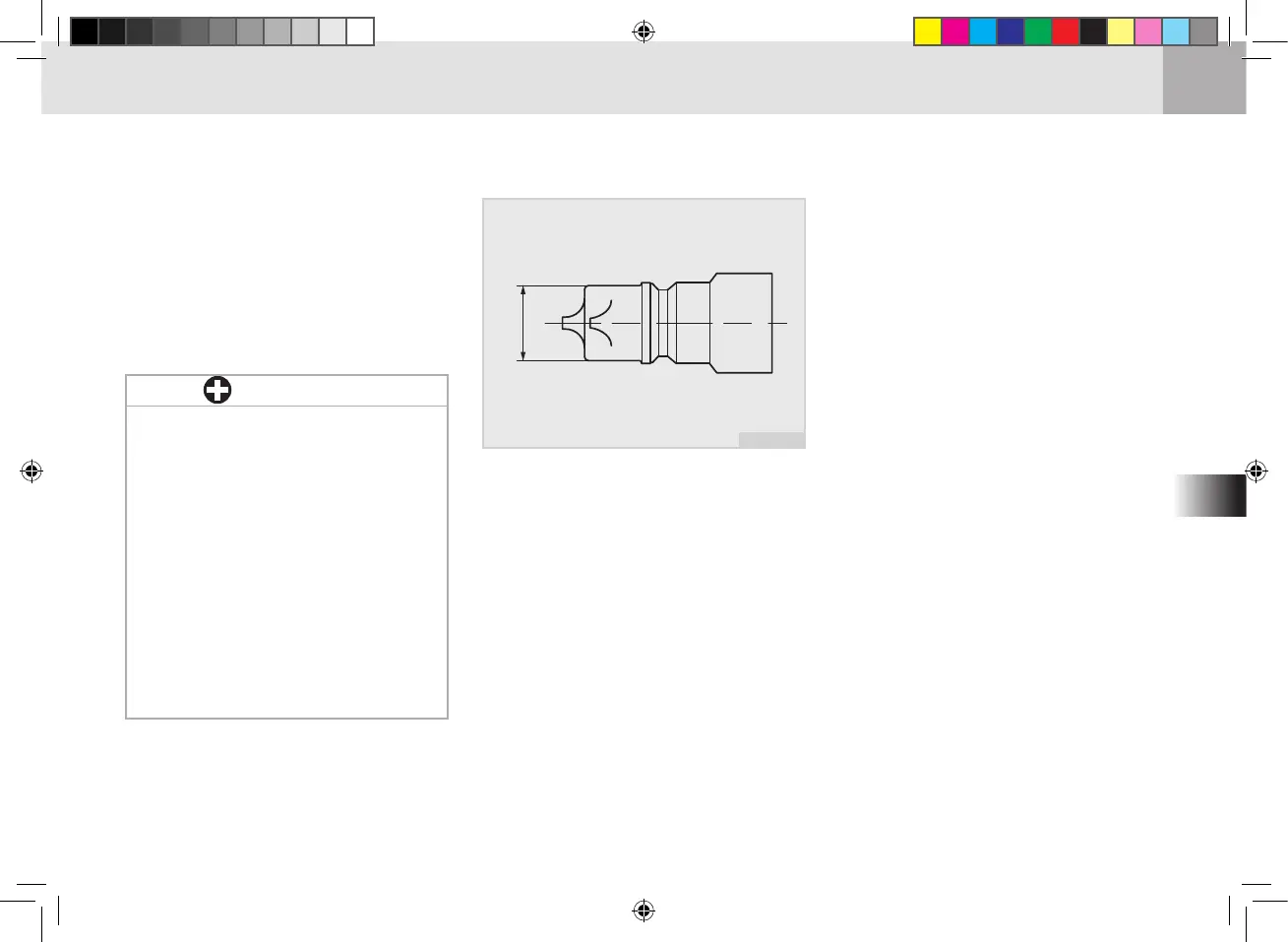

(A) Diameter
A
TC2O525A
The hose unions used must comply
with ISO standards.
Dimension (A) must be between
0.806 and 0.809 in. (20.48 and 20.56
mm)
PT1/2 COUPLER SOCKET (IMPLE-
MENT)
CONNECTING AND DISCONNECT-
ING IMPLEMENT HYDRAULIC HOSE
▶
CONNECTION
1. Make sure to stop the engine be-
fore connecting it.
2. Move the double acting valve le-
ver forward and backward for 4
to 5 times to release the pressure
in the hydraulic line of the tractor.
Otherwise, it is hard to connect the
couplers, and hydraulic uid can be
sprayed from the line and get in to
your eyes while connecting them.
3. Remove any foreign material
around the male and female cou-
plers. If foreign material enters the
hydraulic components, it can lead
to malfunction of the system.
4. Open the dust-proof cover of the
female coupler of the tractor and
insert the male coupler of the im-
plement. A clicking sound is heard
when the couplers are engaged.
5. Pull the hydraulic hose of the im-
plement to check that the couplers
are properly connected.
6. Start the engine and check the op-
erating status and leakage.
