3-POINT HITCH IMPLEMENT OPERATION
H11O566A

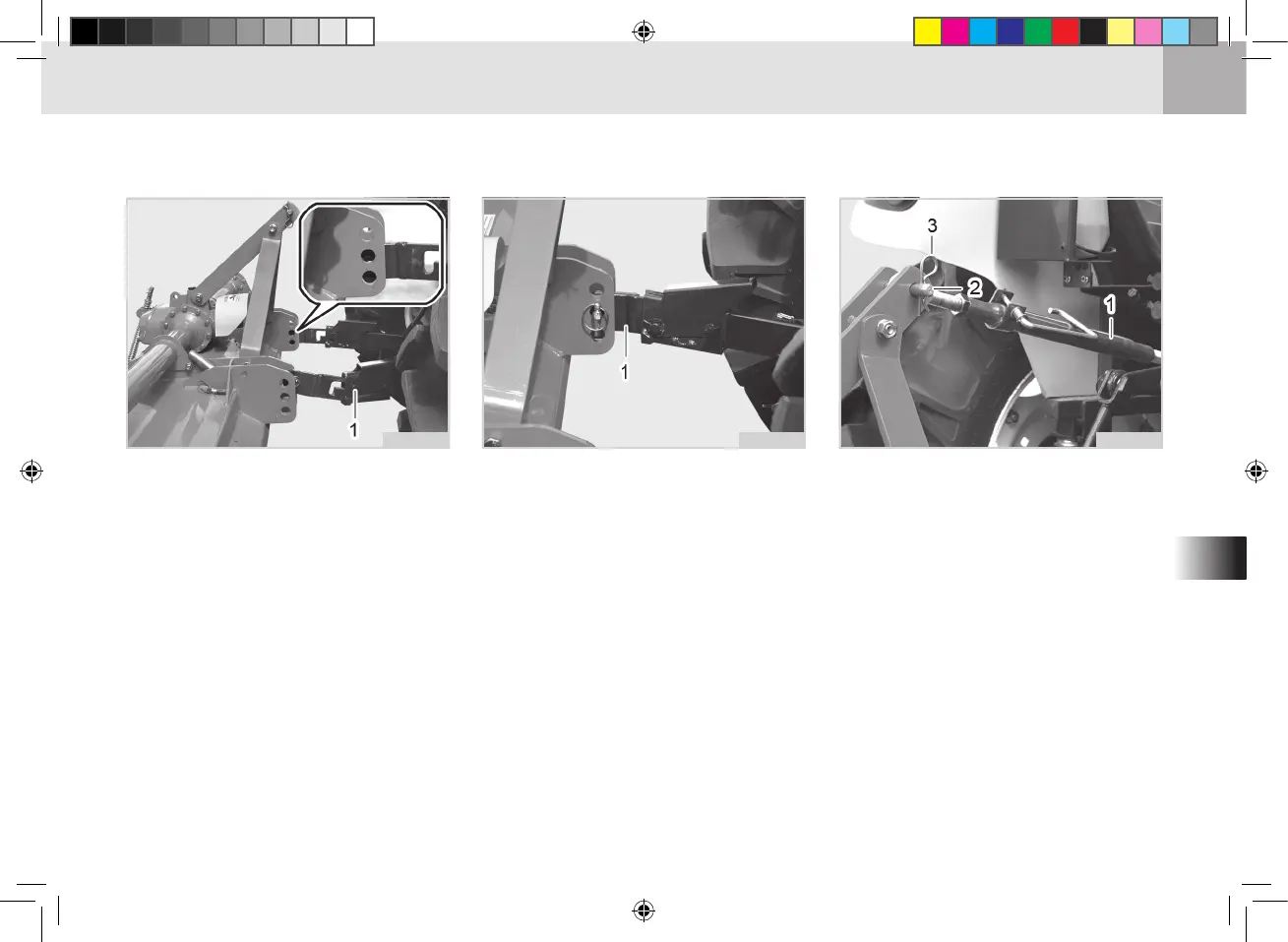

5. Install the lower link to the imple-
ment and t the pins.
(1) Lower Link
6. Start the engine and drive back-
ward toward the implement. Then,
the lower link end is inserted to its
original position.
(1) Lower Link End
H11O569A
7. Separate the top link from its brack-
et and turn it to adjust its length so
that it becomes close to the upper
bracket mounting hole of the im-
plement. Then, t it to the mount-
ing hole, insert the lock pins, and
x it with the snap pin. Remove the
implement support as necessary.
(1) Top Link (2) Lock Pin
(3) Snap Pin
