EX50-SA / EX55-SA / EX5310-AU / EX5810-AU
M55O626A

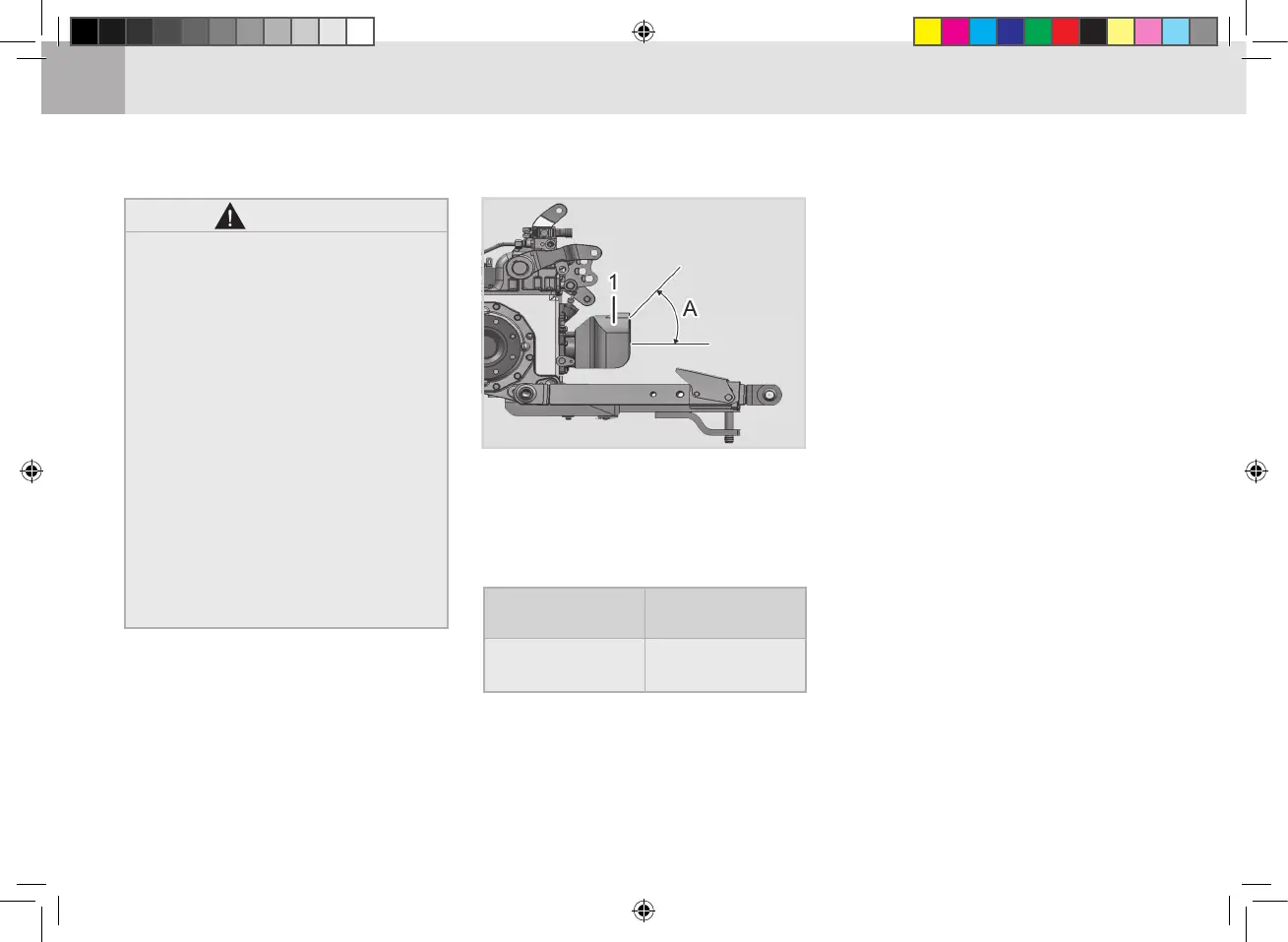

Ref to the chart below as to installing
of an universal joint.
(1) PTO Cover
(A) Allowable angle of universal joint : 50˚
The type of PTO
shaft
Allowable angle
of universal joint
SAE 1-3 / 8
"
6
splines
50 degree
•
Before starting up any PTO-
driven implement hitched to
the three-point linkage, lift the
implement to its full height
and check that at least 1/4 of
the total length of the tele-
scopic section of the drive
shaft is engaged.
•
Before starting up any PTO-
driven implement hitched to
the three-point linkage, lift the
implement to its full height
and check that at least 1/4 of
the total length of the tele-
scopic section of the drive
shaft is engaged.
