7
-
37

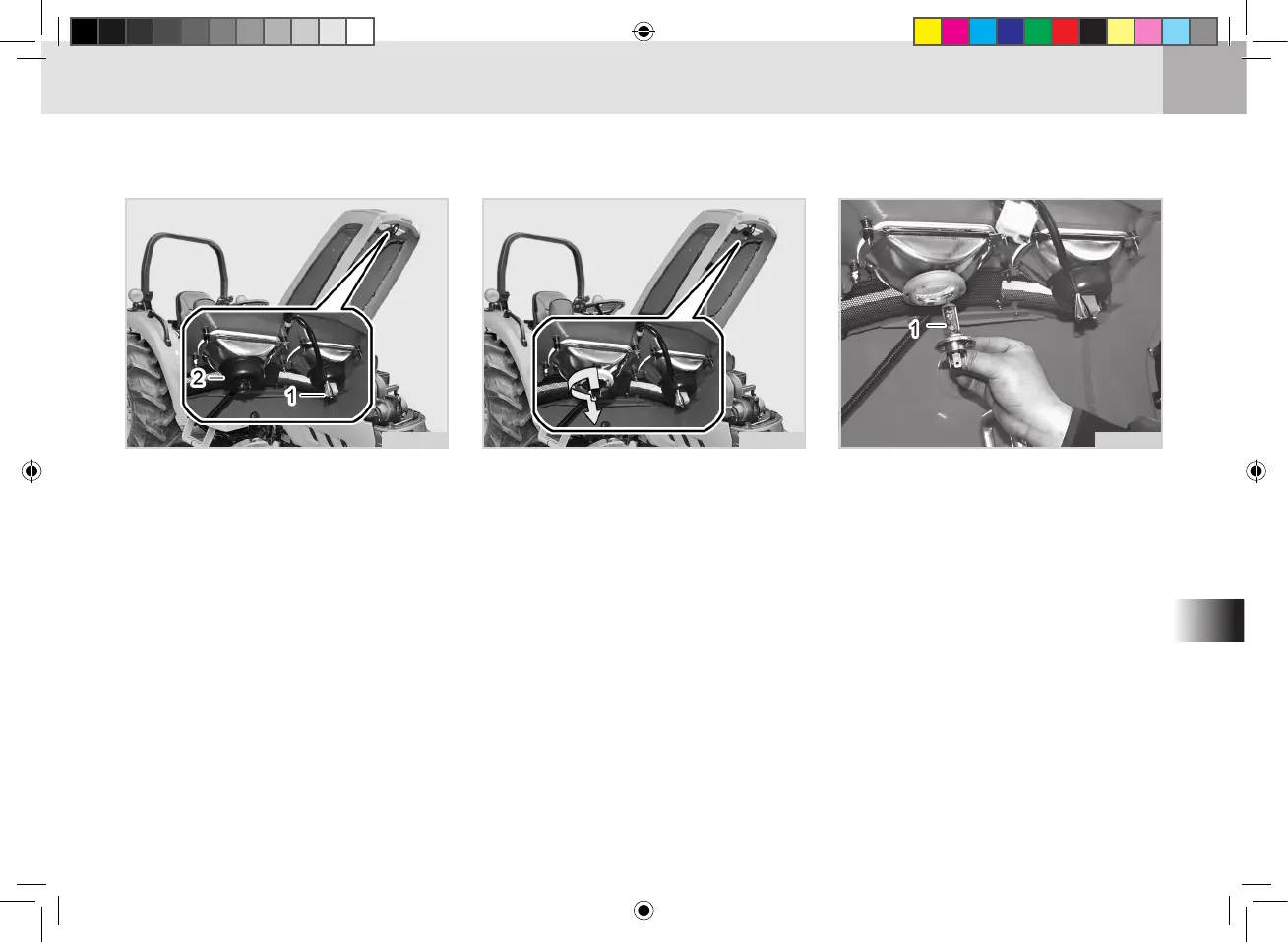

(1) Connector (2) Rubber Cover
2. Disconnect the wire connector.
3. Remove the rubber cover.
TE5O710A
4. Press down the safety spring and
turn it counterclockwise to remove
the bulb. If the bulb is blown, re-
place it with a new one with the
same capacity.
5. Installation is carried out in reverse
order of removal.
TE5O711A
6. Installation is carried out in reverse
order of removal.
H11O662A
(1) Head Lamp Bulb
TE150 (EX50, EX55)-���-07.indd 37 2019-03-19 �� 4:36:32
