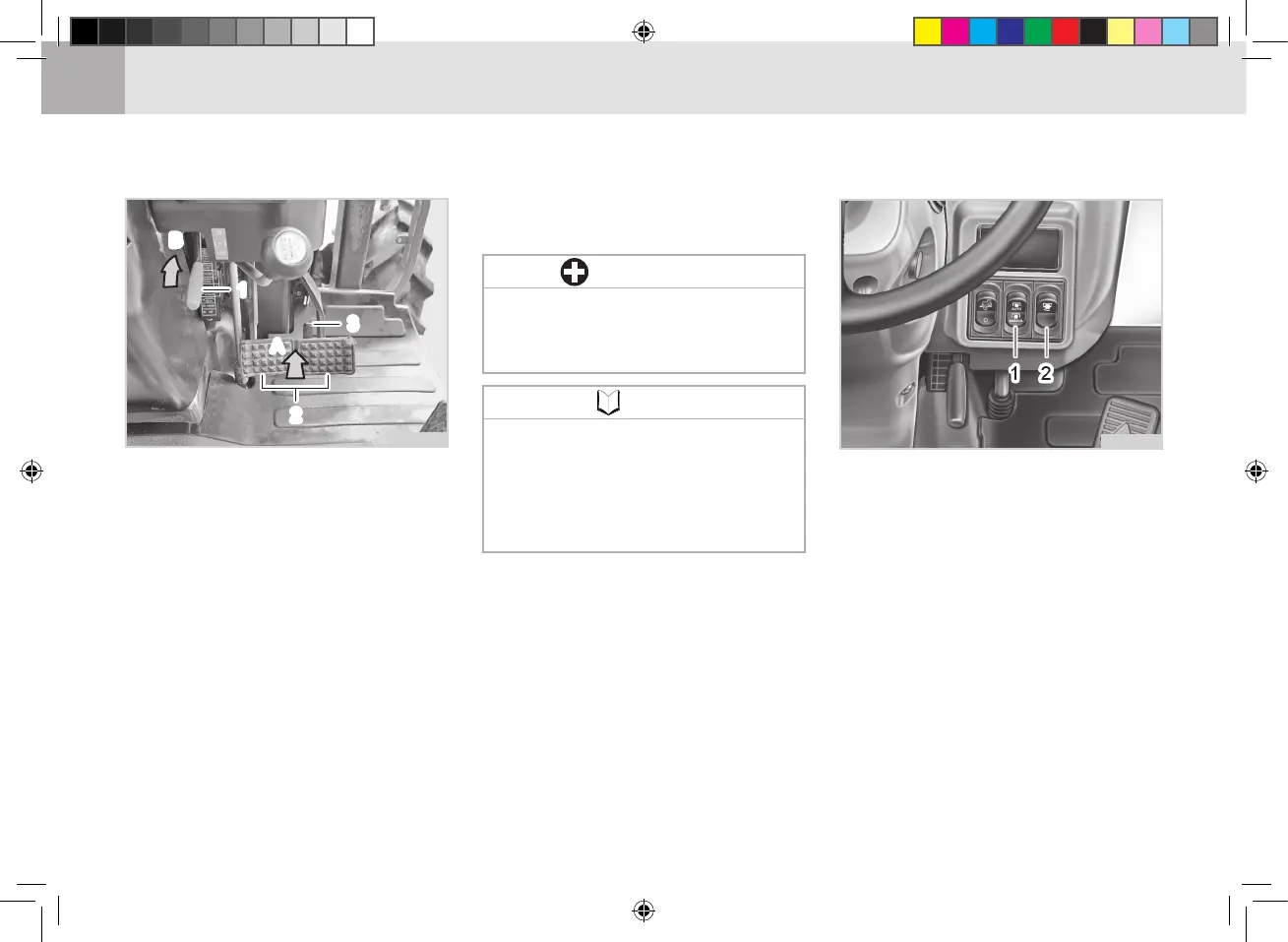

1. Make sure there is no obstacle
around the tractor.
2. Make sure the parking brake is set
(1) To set the parking brake;
1) Interlock the brake pedals
2) Depress the brake pedals
3) Latch the brake pedals with
the parking brake lever. (Check
that the parking brake lamp on
the gauge board illuminates)
3. Press the PTO switch to the “OFF”
position.
Make sure that the brake pedals
are fully depressed before pull-
ing the parking brake lever up.
IMPORTANT
When the parking brake is en-
gaged, the parking brake lamp
on the instrument cluster illu-
minates. When releasing it, the
parking brake lamp is turned off.
NOTE
(1) Parking Brake Lever (2) Brake Pedal
(3) Connecting Hook
(A) Depressing (B) Pressing Down
(1) Auto-Manual Switch
(2) PTO Switch
(2) To release the parking brake
press the brake pedals again.
22
111
33
A
B
A
B
TE5O418A
