Dahua DHI-NVR608R-64-4KS2 User Manual

142

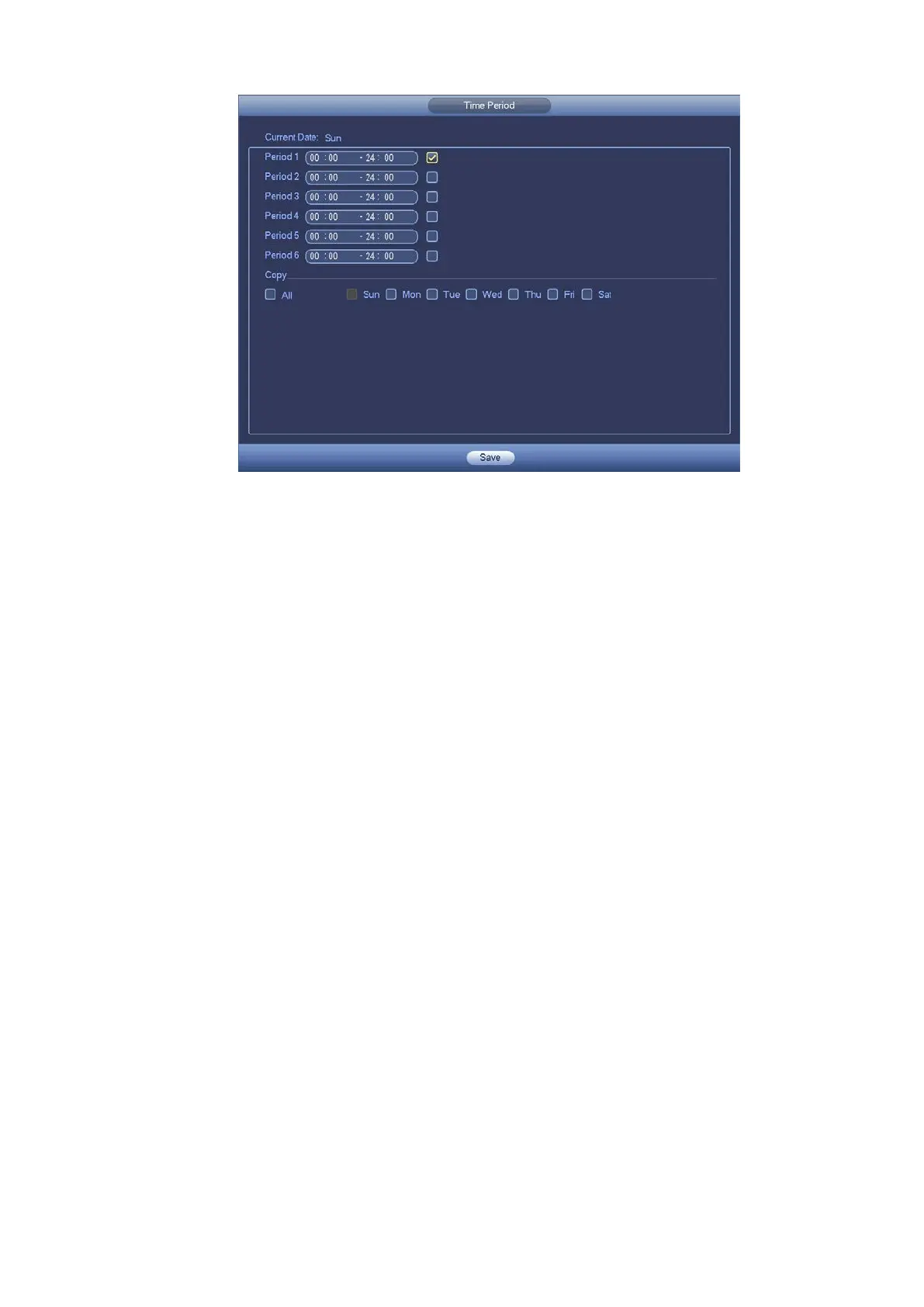

Figure 3-128
After you set the corresponding parameters, click OK button in Figure 3-125., and then click the Apply
button in Figure 3-123 to complete the setup.
3.10.3.2 Intrusion
System generates an alarm once there is any object entering or exiting the zone in the specified direction.
From main menu->Setting->Event->IVS, click Add button and then select type as intrusion, the interface
is shown as below. See Figure 3-129.
 System supports customized area shape and amount.
 Support enter/leave/both detection.
 Can detect the moving object operation in the specified zone, customized trigger amount and staying
time.
 Support objects filter function.

Dahua DHI-NVR608R-64-4KS2 Specifications

General

Brand	Dahua
Model	DHI-NVR608R-64-4KS2
Category	Network Hardware
Language	English
