369
Figure 4-166
You can see the corresponding prompt if you successfully enabled cluster service.
4.6.7.5.2 Arbitration IP
When there is only two NVRs in the cluster, you can set the arbitration IP to change the cluster
accordingly. The arbitration IP is the IP address of other device/PC/gateway that can connect to the NVR.

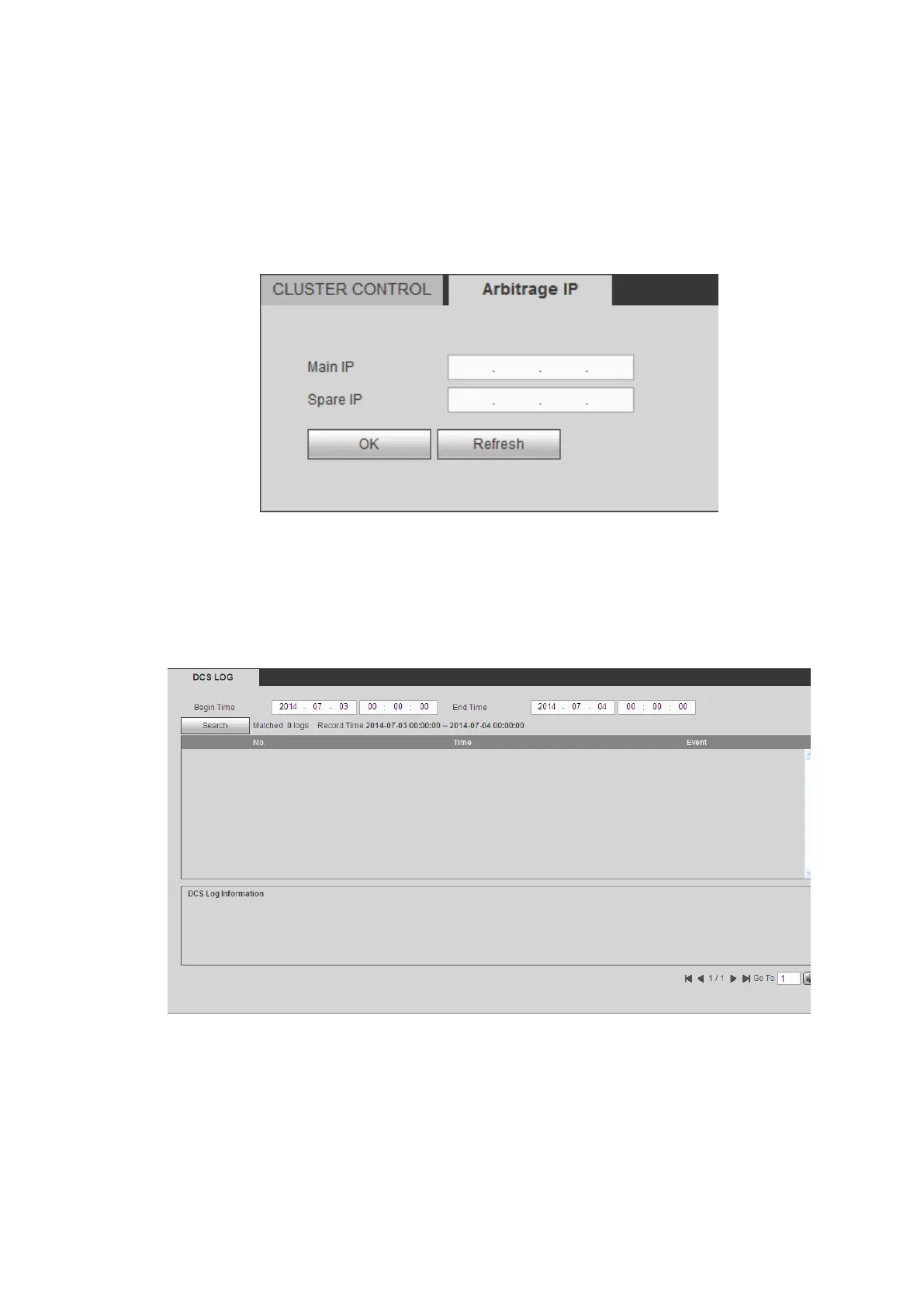

From main menu>Setup>Cluster service>Cluster control> Arbitration IP, you can see the following
interface. See Figure 4-167.
Figure 4-167
4.6.7.6 DCS Log
From main menu>Setup>Cluster service>DCS log, you can go to the DCS log interface.
The DCS log interface is shown as in Figure 4-168. Here you can search and view the DCS log.
Figure 4-168
4.7 Playback
Click Playback button, you can see an interface is shown as in Figure 4-169.
