342

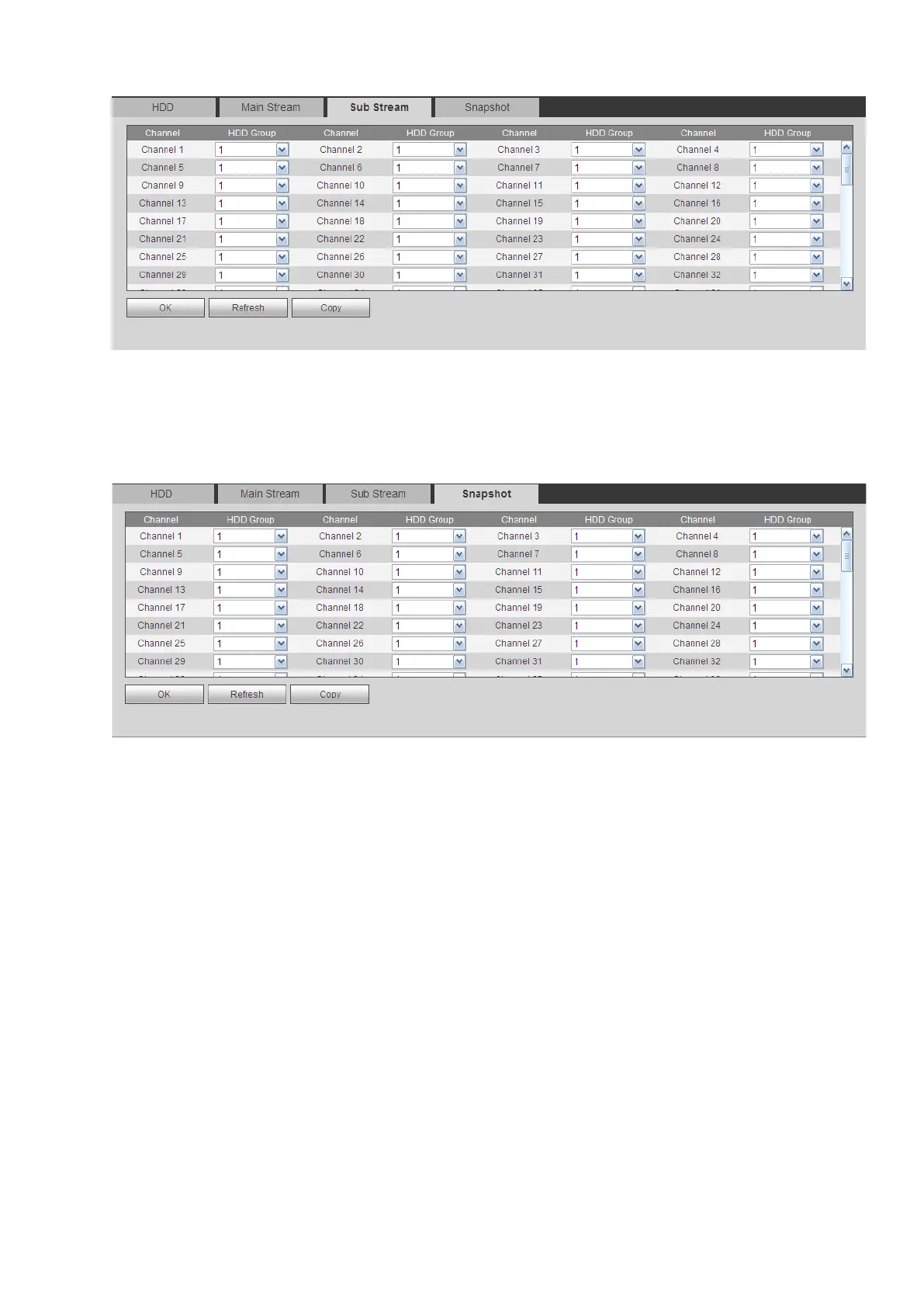

Figure 4-123
4.6.5.6.4 Snapshot
From main menu>Setup>Storage>Advanced>Snapshot, the snapshot interface is shown as in Figure
4-124 . Here you can set corresponding HDD group to save snapshot picture.
Figure 4-124
4.6.5.7 RAID Manager
Important
Please make sure your purchased product support the RAID function, otherwise you can not see
the following interface.
4.6.5.7.1 RAID Config
From main menu>Setup>Storage>RAID>RAID config, you can go to the following interface. See Figure
4-125.
It is for you to manage RAID HDD. It can display RAID name, type, free space, total space, status and etc.
Here you can add/delete RAID HDD.
Click Add button to select RAID type and then select HDDs, click OK button to add. See Figure 4-125.
