203
Figure 3-193
3.12.5 Record Control
After you set schedule record or schedule snapshot function, please set auto record/snapshot function so
that the NVR can automatically record or snapshot. For detailed information, please refer to chapter
3.4.6.3 record control.
3.12.6 HDD Information

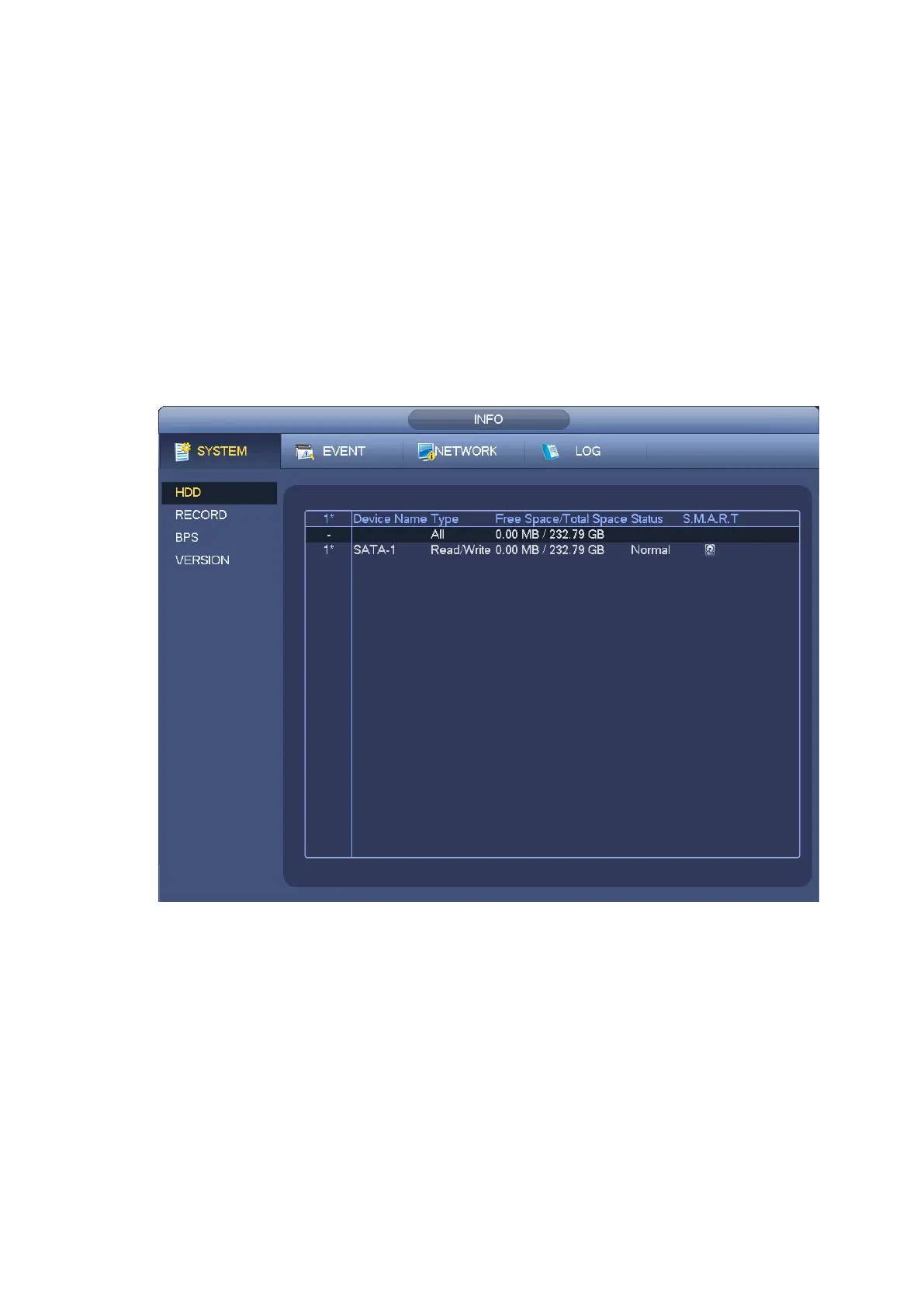

Here is to list hard disk type, total space, free space, and status. See Figure 3-194.
○ means current HDD is normal.. - means there is no HDD.
If disk is damaged, system shows as “?”. Please remove the broken hard disk before you add a new one.
Figure 3-194
In Figure 3-194, click one HDD item, the S.M.A.R.T interface is shown as in Figure 3-195.
