209

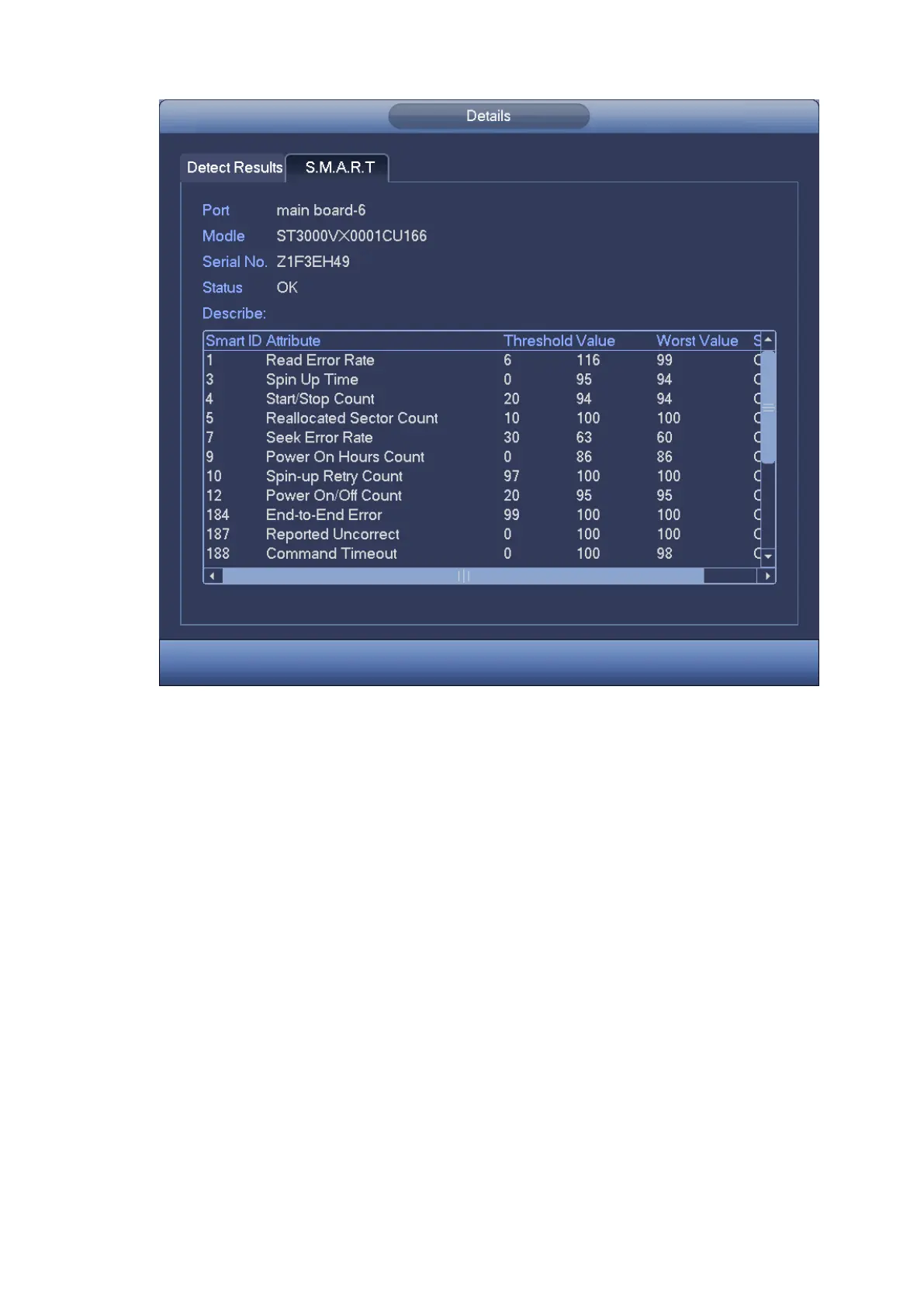

Figure 3-200
3.12.9 ISCSI
iSCSI function is for some series product only.
You can set the network mapping HDD so that device can storage audio/video on the network HDD.
From Main menu>Setting>Storage>ISCSI, you can go to the following interface. See Figure 3-201.
Server IP address: It is to input ISCSI server IP address.
Port: It is to input ISCSI server port value. The default setup is 3260.
User name/password: It is to input ISCSI server user name and password. Check the Anonymous
button if it supports anonymous login.
Set path: You can click the Set path button to select the remote storage path. Please note each path
here stands for one ISCSI share disk. The path has been generated when it is created at the server.
Add: After you input the above information, click add button to add the new information to the list.
