365
Figure 4-158
Note:
The first IP is for cluster internal control(For interactive communications between the master device and
slave device .), the virtual IP address is for cluster external control (For external network connection).
4.6.7.2 Master Device

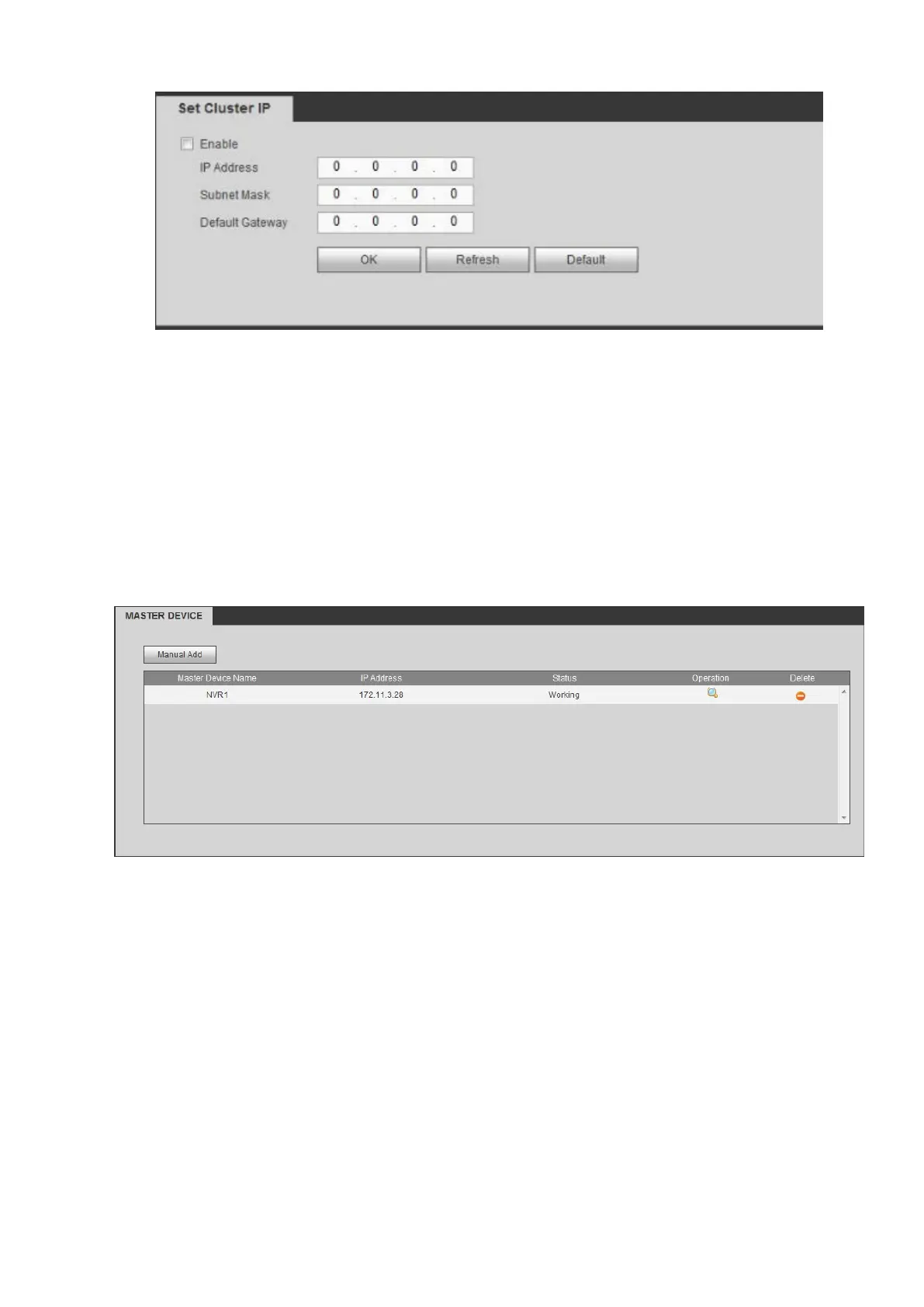

From main menu>Setup>Cluster service>Master device, you can go to the following interface. See
Figure 4-159.
In this interface, you can add several master devices manually. After you enable the cluster function, you
can view device IP, work status. Click operation button, you can view the connection log of the main
device. See Figure 4-159.
Figure 4-159
Click Manual add, the interface is shown as below. See Figure 4-160.
To Next Page
