Dahua XVR5104HS User Manual

446

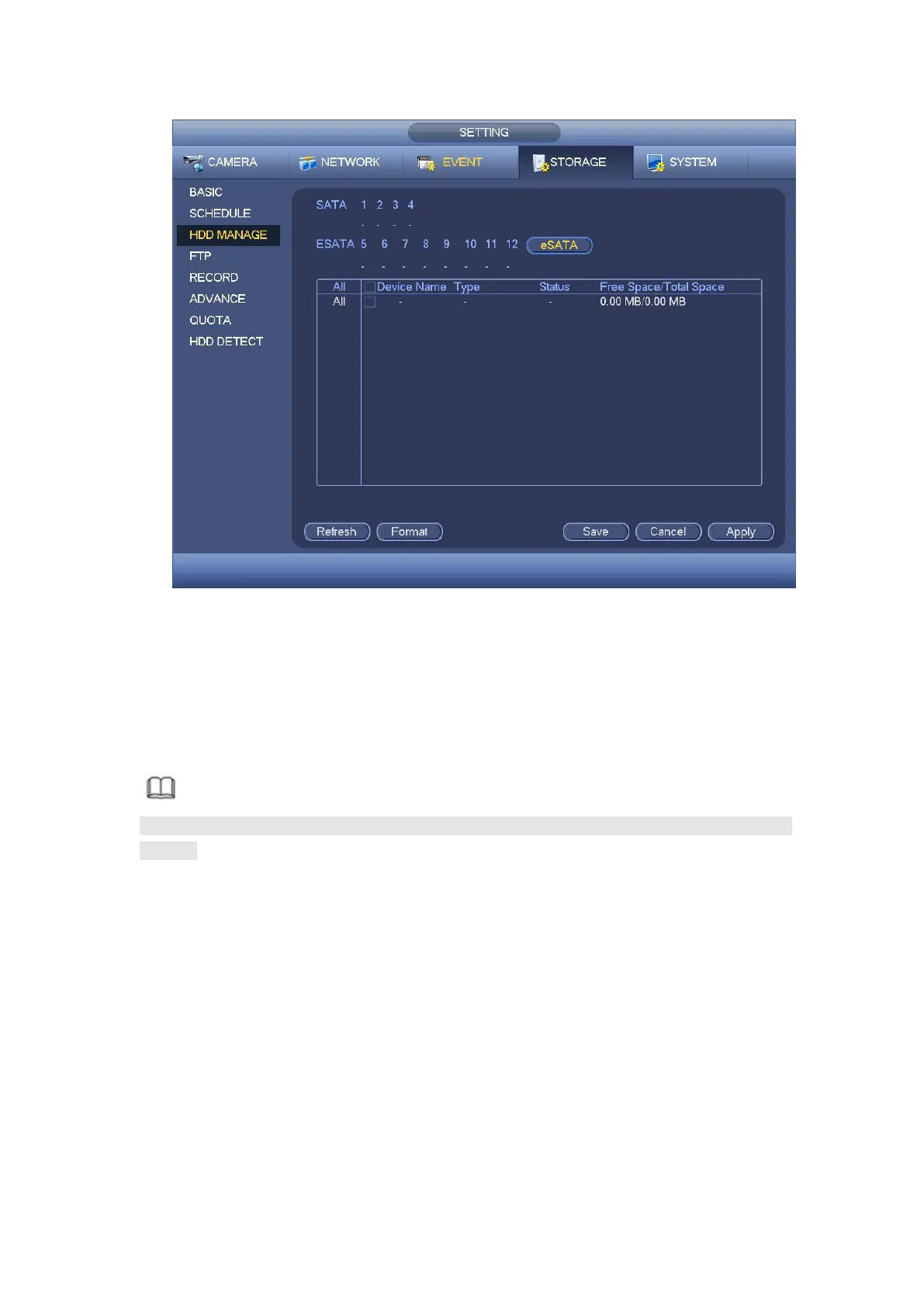

Figure 4- 183
4.9.4.3 FTP
It is to backup record file or image to the FTP to storage or view.
Before the operation, please download or purchase the FTP service tool and install on the
PC.
Note
For the FTP user, please set FTP folder write right, otherwise system cannot upload the
image.
Step 1 From main menu->Setting->Storage->FTP, enter FTP interface. See Figure
4-184.
Step 2 Set parameters.
Here you can input FTP server address, port and remote directory. When remote directory
is null, system automatically create folders according to the IP, time and channel.

Host IP: The host IP you have installed the FTP server.

Host port: The default setup is 21.

User name/Password: The account for you to access the FTP server.

Remote directory: The folder you created under the root path of the FTP according to
the corresponding rule.
 If there is no remote directory, system can auto create different directories
according to the IP, time and channel.
 If there is remote directory, system can create corresponding folder under the

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
