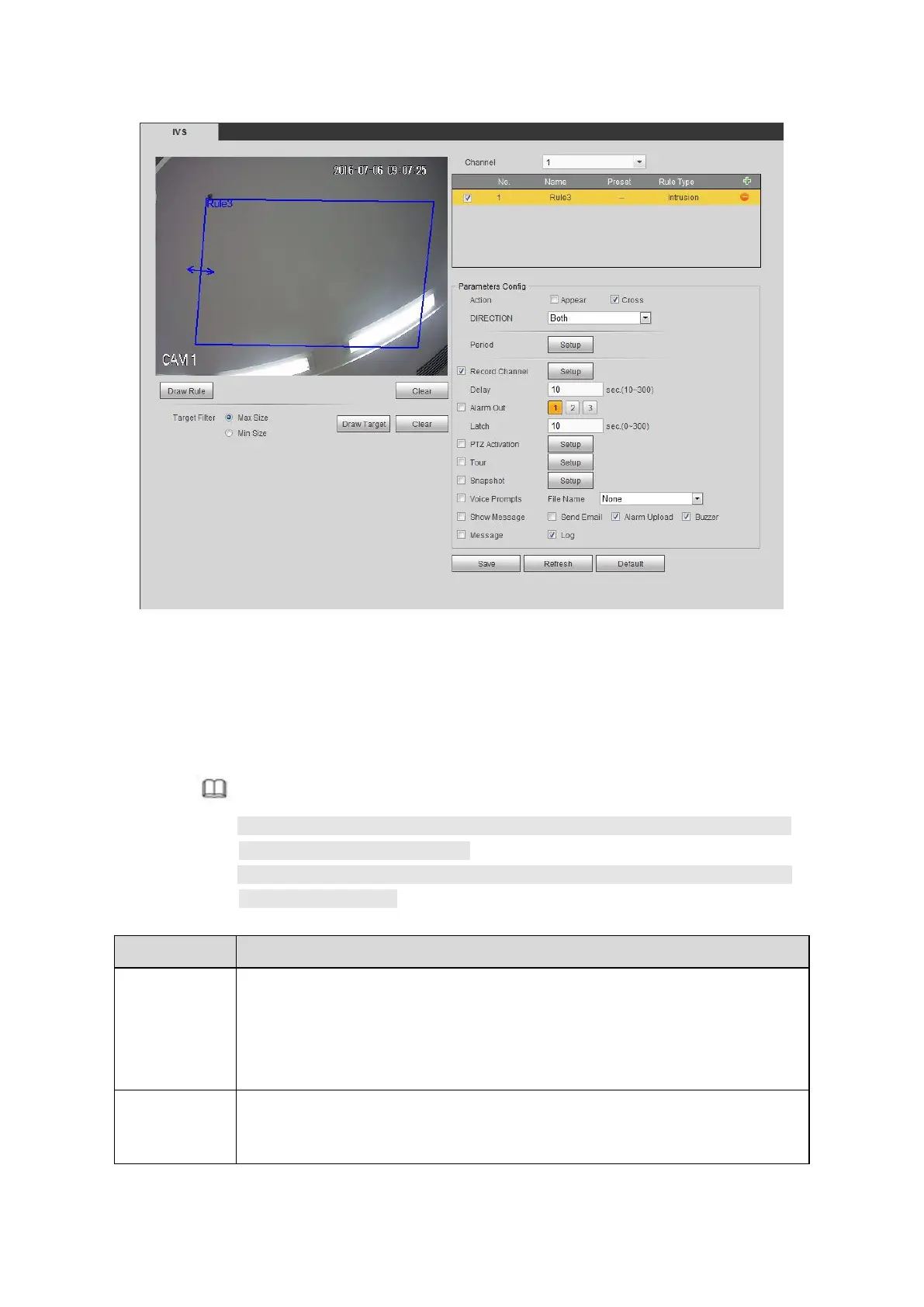

Figure 5- 81
Step 4 Set filter object. Once the object is smaller than the min size or larger than the
max size, there is no alarm.
1. After draw the rule, set max size and min size.
2. Click Draw target to draw the rectangle zone.
Note

Each rule can set two sizes (min size/max size). Please make sure the max
size is larger than the min size.

The default max size is the full screen, you can select the blue line and then
use mouse to adjust.
Step 5 Set parameters.
Parameter
Function
Action
It is to set intrusion mode.
 Cross: It includes enter the warning zone, leave the warning zone or
cross the warning zone.
 Appear: An object falling from nowhere (such as from the sky). It may not
fully enter the warning zone.
Direction
When the action mode is cross, there are three options: A->B, B->A, both.
System can generate an alarm once there is any object enter/exit (Or both)
the zone.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
