Please refer to the following sheet for detailed information.
Parameter
Function
Resolution
There are four options: 1920×1080,1280 × 1024(default),1280 ×
720,1024×768. Please note the system needs to reboot to activate
current setup.
Transparency
Here is for you to adjust transparency. The value ranges from 128
to 255.
Time
title/channel
title
Check the box here, you can view system time and channel
number on the monitor video.
enhance
Check the box; you can optimize the margin of the preview video.
IVS rule
preview
Check the box here, you can view IVS rule name on the preview
window.
Video matrix
 Check the box, select VGA or the HDMI as the video matrix
output. The selected screen(s) only display(s) the channel
video from the video matrix. Refer to chapter 5.10.5.3 Video
matrix for detailed information.
 Cancel the box, the VGA and HDMI output the same video.
5.10.5.2.2 TV Adjust
Note
This function is for some series product only.

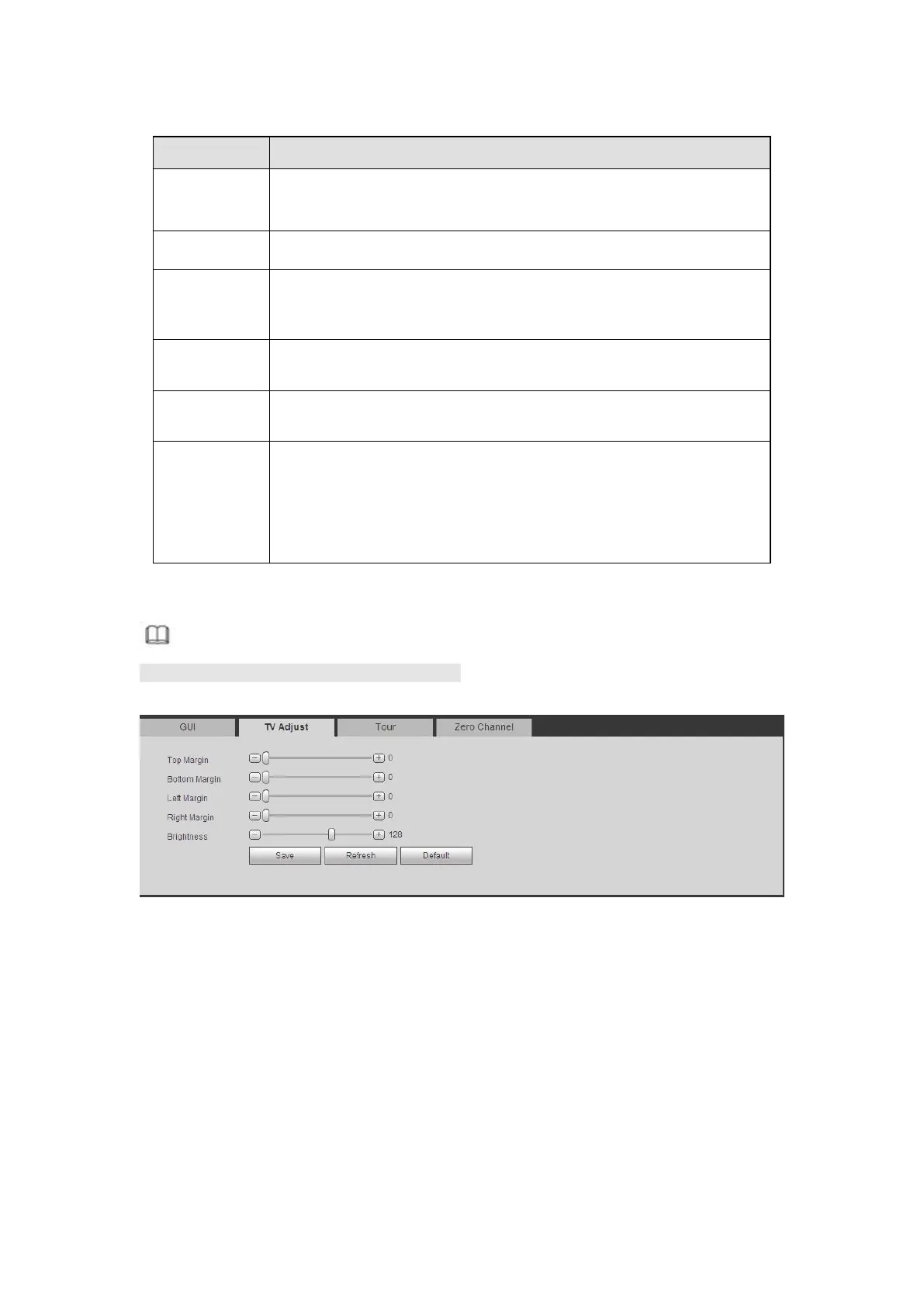

It is to set TV output region. See Figure 5- 117.
Figure 5- 117
5.10.5.2.3 Tour
The tour interface is shown as in Figure 5- 118. Here you can set tour interval, split mode,
motion detect tour and alarm tour mode.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
