Overview of Transfer Control (TransferControlMode)
Linea Lite GigE acquisition transfers operate either in the basic coupled mode or in an independent
decoupled user controlled mode, as described below.
TransferControlMode = Basic
Basic Transfer Mode provides maximum compatibility with any control application running on the
host computer. The host-based acquisition program commands the camera to do a frame grab and
send it through the camera’s frame buffer to the camera’s transfer module and the host. The
acquisition rate is limited by the host transfer rate.
FB 1
FB 2
FB 3
FB 4
FB 5
FB 6
FB n
Acquisition
:
Write
Index
Camera
Read
Index
Circular Frame Buffer
Transfer
Host
Computer
Transfer
Module
Camera Transfer
Module

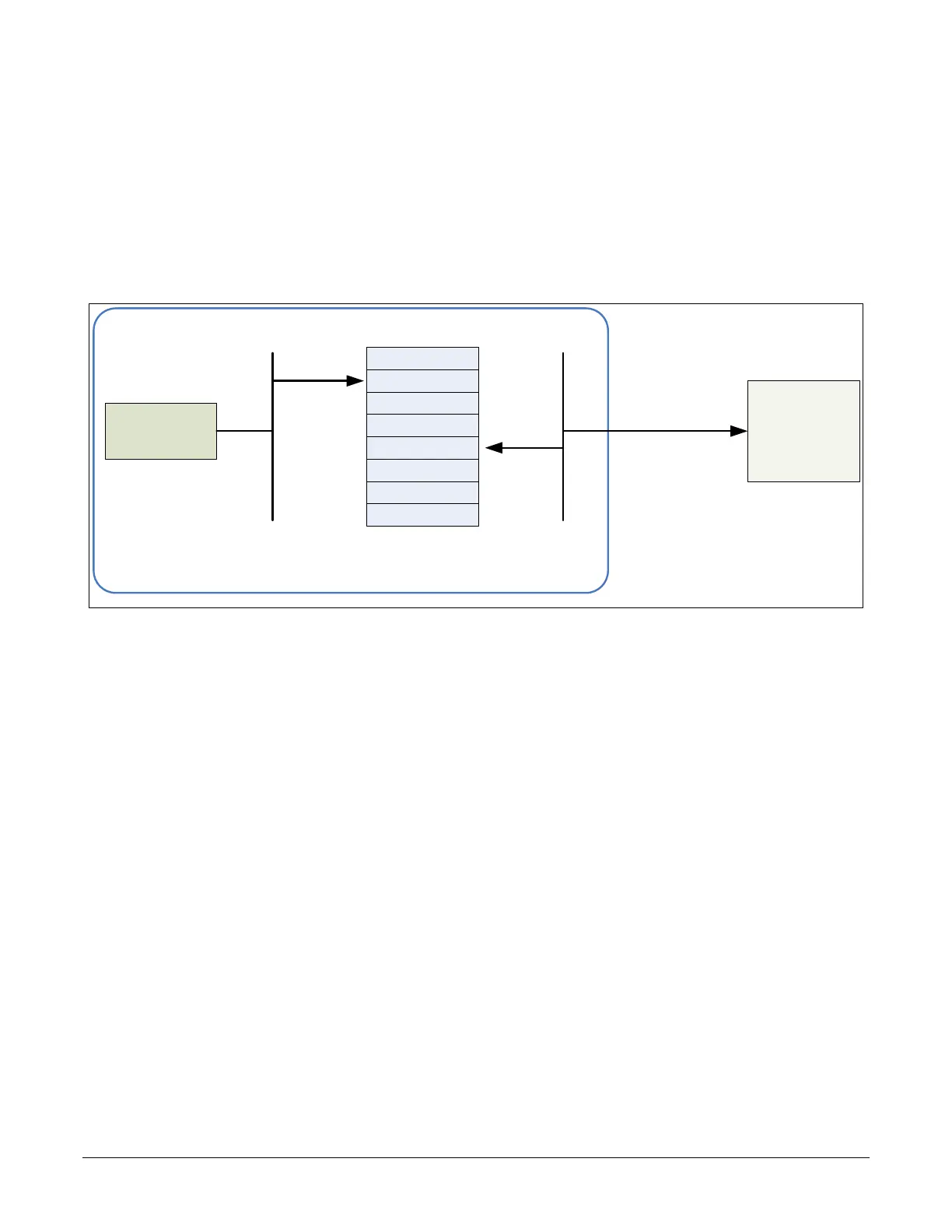

Figure 85: Transfer Control Mode
