24 • Linea Lite GigE Camera Quick Start Linea Lite GigE Series Camera
Connectors
The Linea Lite GigE has two connectors:
• RJ45 Ethernet connector for control and video data transmitted to / from the host computer
Gigabit NIC. The Linea Lite supports Power over Ethernet (PoE). Refer to
Ruggedized RJ45
Ethernet Cables section for information on secure cables.
• HD15 connector for camera power, trigger, strobe and general I/O signals. Teledyne DALSA
provides an optional breakout cable; see Mating GPIO Cable Assembly. Refer to
HD15
Connector Details section for pinout specifications.
The following figure of the Linea Lite GigE back end shows connector and LED locations. Refer to
Mechanical Specifications
section for details on the connectors and camera mounting dimensions.

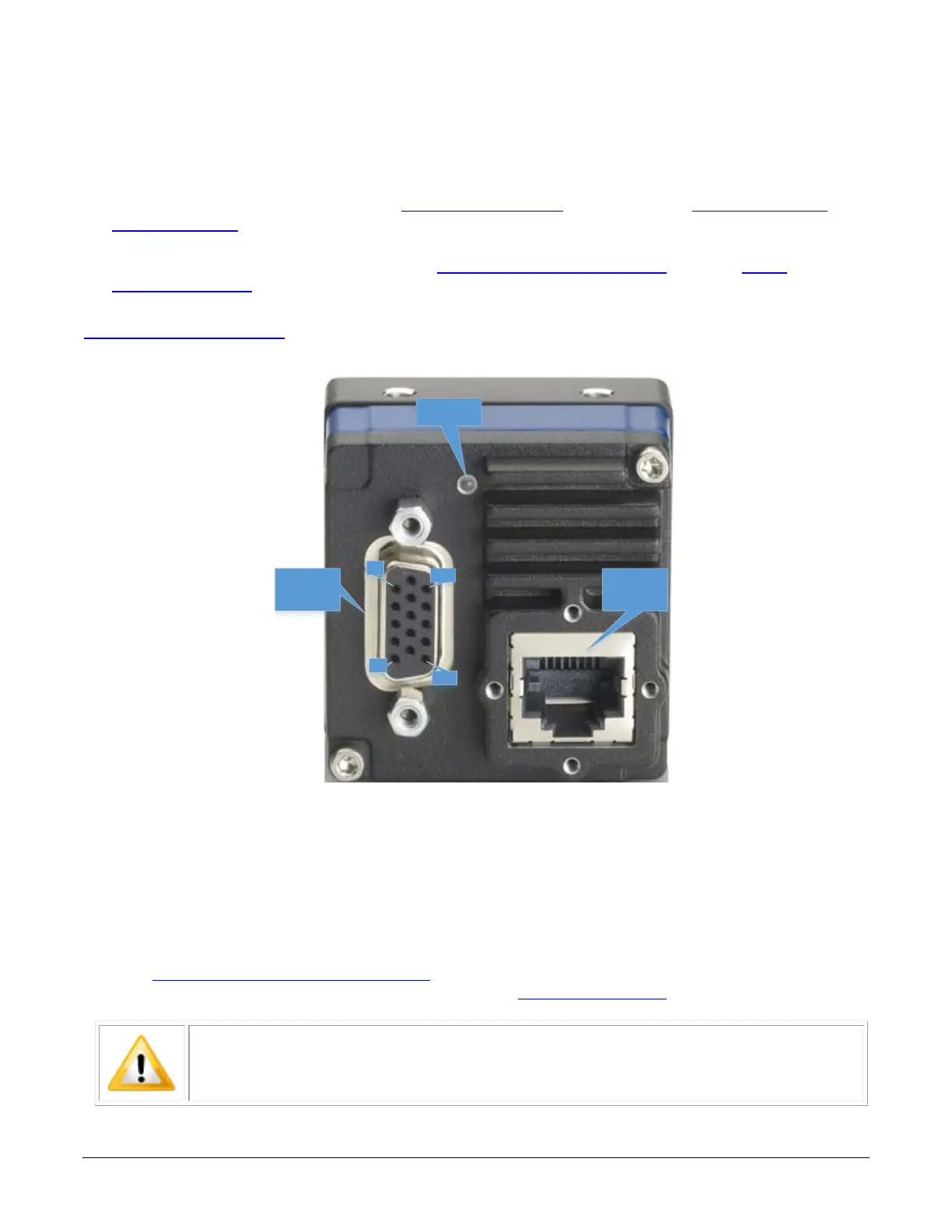

Figure 9: Linea Lite GigE Series – Rear View
Powering the Camera
Two options are available for powering the Linea Lite GigE camera:
1. Power-over-Ethernet (PoE)
2. Power supply connected to the HD15 connector.
Refer to Power over Ethernet (PoE) Support
section for more information.
Power supplies must meet the requirements defined in Electrical Interface section.
Important: Connect power via the HD15 connector or PoE, not both. Although
Linea Lite has protection, differences in ground levels may cause operational issues
or electrical faults. If both supplies are connected and active, the Linea Lite will use
the I/O power supply connector.
