144 • Technical Specifications Linea Lite GigE Series Camera
Sensor Alignment Specification
The following figure specifies sensor alignment for Linea Lite GigE where all specifications define
the absolute maximum tolerance allowed for production cameras. Dimensions "x, y, z", are in
microns and referenced to the Linea Lite GigE mechanical body or the optical focal plane (for the z-
axis dimension). Theta specifies the sensor rotation relative to the sensor's center and camera
mechanical.
(+/-) Y variance
(+/-)
X variance
Sensor Alignment Reference
Z variance not shown
(+/-)
theta variance

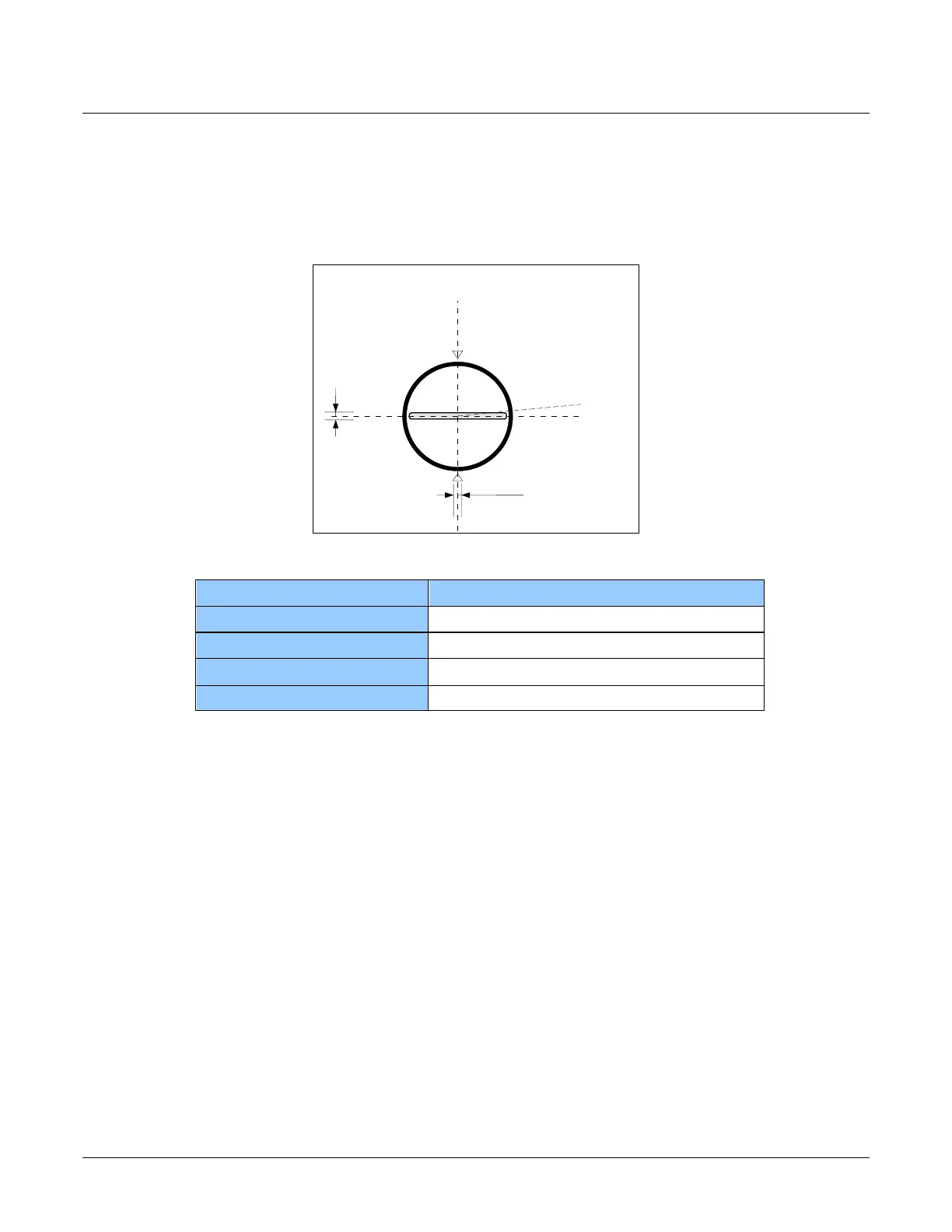

Figure 101: Sensor Alignment Reference
Linea Lite GigE
X variance
± 300 µm
Y variance
± 300 µm
Z variance
± 300 µm
Theta variance
± 0.4°
