Dalsa Linea Lite GigE Series - Related Gige Vision Features

Linea Lite GigE Series Camera Camera Performance and Features • 47
In practice, dividers and multipliers can be used to shift the line trigger backward or forwards to
adjust the rotary encoder distance per tick.

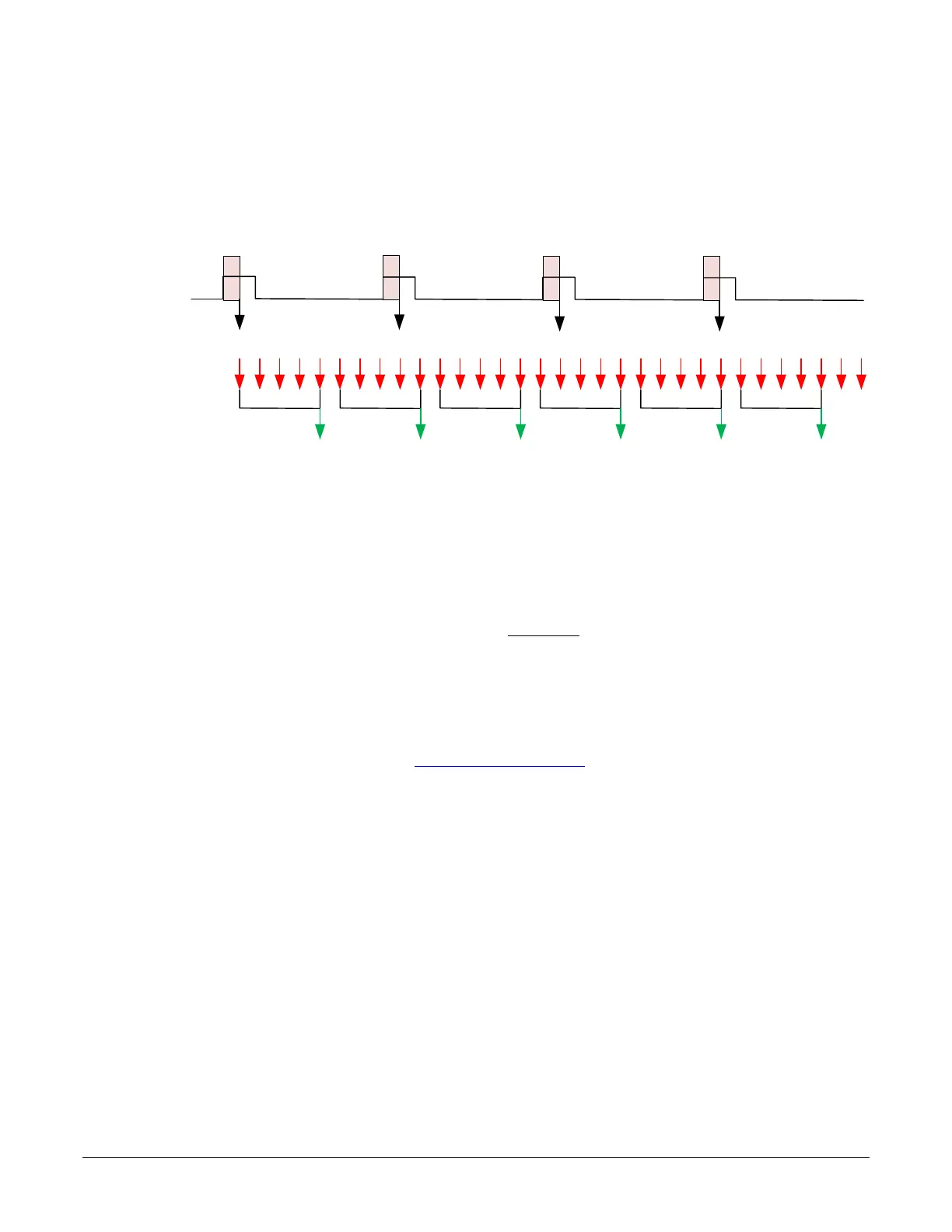

Debou ncing Perio d
(o pt io na l)
Rotary
Encoder
Input Signal
Line Tri gger
generated to
acqu ire li ne
Multiplier (x 8)
generates
additional triggers
Valid Line T rigger Accepted
(rising edge)
Divider (5)
specifi es
how many
triggers to
drop
With Rotary Encoder Rescal er Order = Mulitplier Divider
1 2
3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3
4 5 6 7 8 1 2 3 4 5
6 7 8
For example, if each rotary encoder tick represents 10 mm of movement, a multiplier of 8 results
in each tick equaling 1.125 mm (1/8); if a divider of 5 is then applied, then each tick is 6.25 mm
(1.125 x 5). Therefore to calculate the value of each tick:
   ×


This allows using a simple fraction to adjust the encoder
Related GigE Vision Features
Feature related to triggers are part of the I/O Controls category.
