Danfoss VLT AutomationDrive FC 300 Design Guide

202
8[ ]
0
0[ ]
84.5
3[ ]
0
0[ ]
154.5
6[ ]
224.5
9[ ]
605
23.8[ ]
0
0[ ]
R
S
T
130BC546.11
1
2
3
4

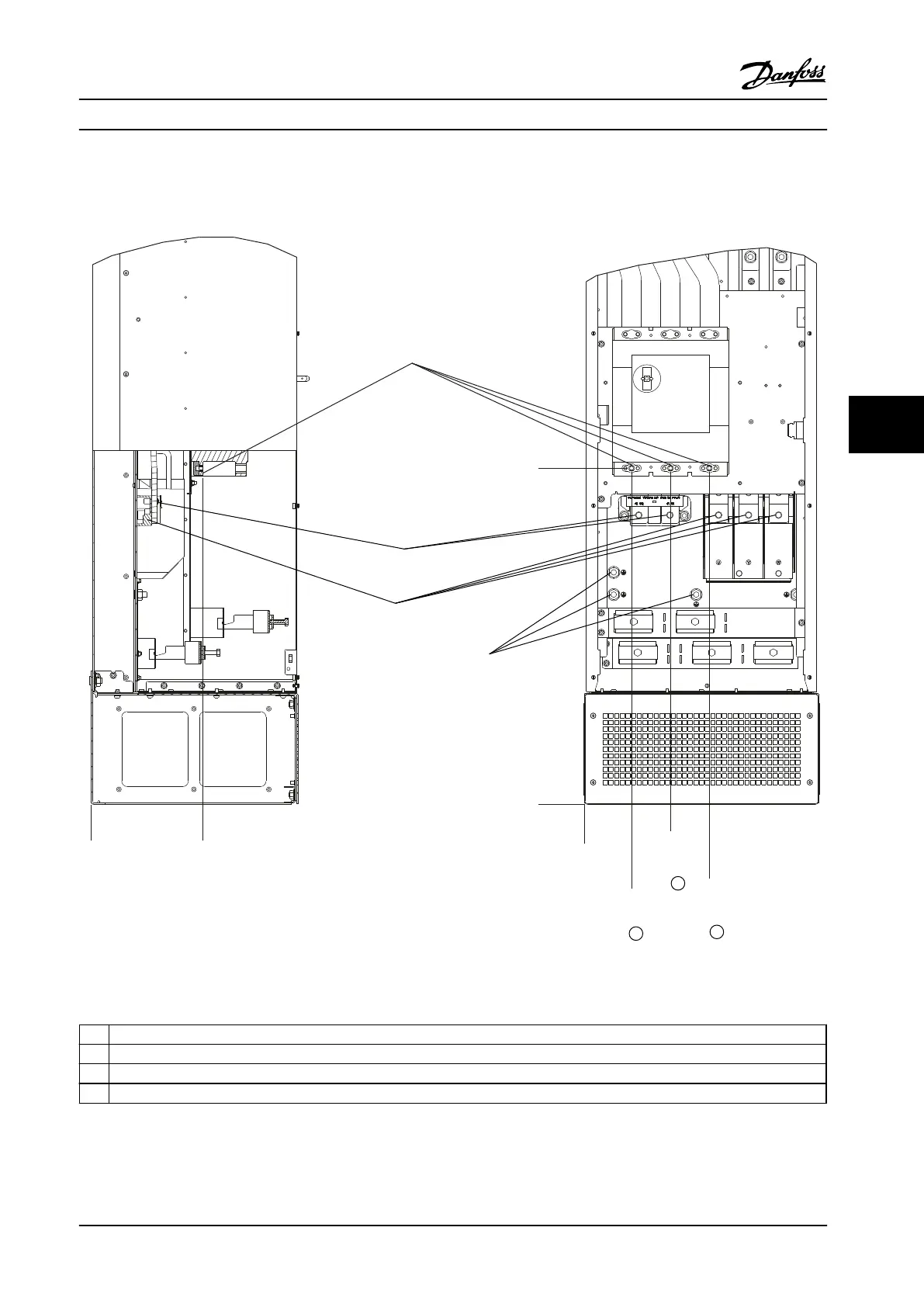

Figure 6.59 Terminal Locations, D8h with Circuit Breaker Option
1
Line Power Terminals
2 Brake Terminals
3 Motor Terminals
4 Ground Terminals
Table 6.32 Legend to Figure 6.59
Mechanical Installation
Design Guide
MG34S222 Danfoss A/S © Rev. 2014-02-10 All rights reserved. 145
6 6
