E
F
B C D
0 0.0[ ]
51 2.0[ ]
226 8.9[ ]
266 10.5[ ] 441 17.4[ ]
0 0.0[ ]
28 1.1[ ]
167 6.6[ ]
195 7.7[ ]
A
0 0.0[ ]
176FA279.11

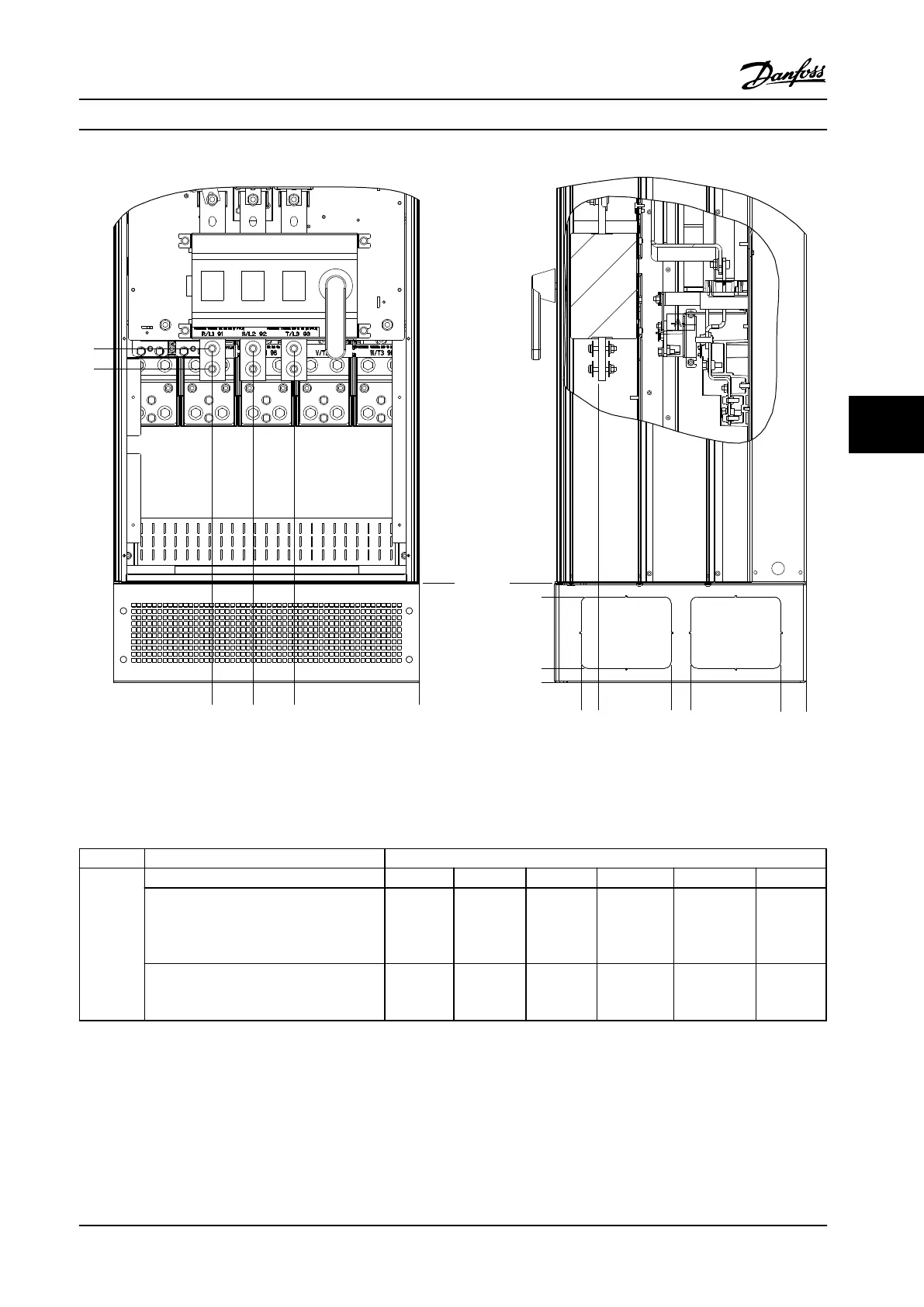

Figure 6.63 IP21 (NEMA type 1) and IP54 (NEMA type 12) Enclosure Power Connection Position of Disconnect Switch
Frame size Unit type Dimension for disconnect terminal, mm (in)
E1
IP54/IP21 UL and NEMA1/NEMA12 A B C D E F
350/450 hp [250/315 kW] (400 V) and
475/600–650/850 hp
[355/450–500/630 KW]
(690 V)
381 (15.0) 253 (9.9) 342 (13.5) 431 (17.0) 562 (22.1) N/A
450/475–550/600 hp
[315/355-400/450 kW]
(400 V)
371 (14.6) 251 (9.9) 341 (13.4) 431 (17.0) 416 (16.4) 455 (17.9)
Table 6.33 Legend to Figure 6.63
Mechanical Installation
Design Guide
