Danfoss VLT AutomationDrive FC 300 - Page 164

Terminal Locations - Options Cabinet Frame Size F9
336.4 291.2 142.0
92.0
.0
.0
73.0
128.5 129.3 184.0 218.3 249.0 314.0 307.3 369.5 448.0 493.0 425.0
244.4
151.3
386.7
443.8
628.8
830.3
887.4
.0
130BB756.11
1
2
3

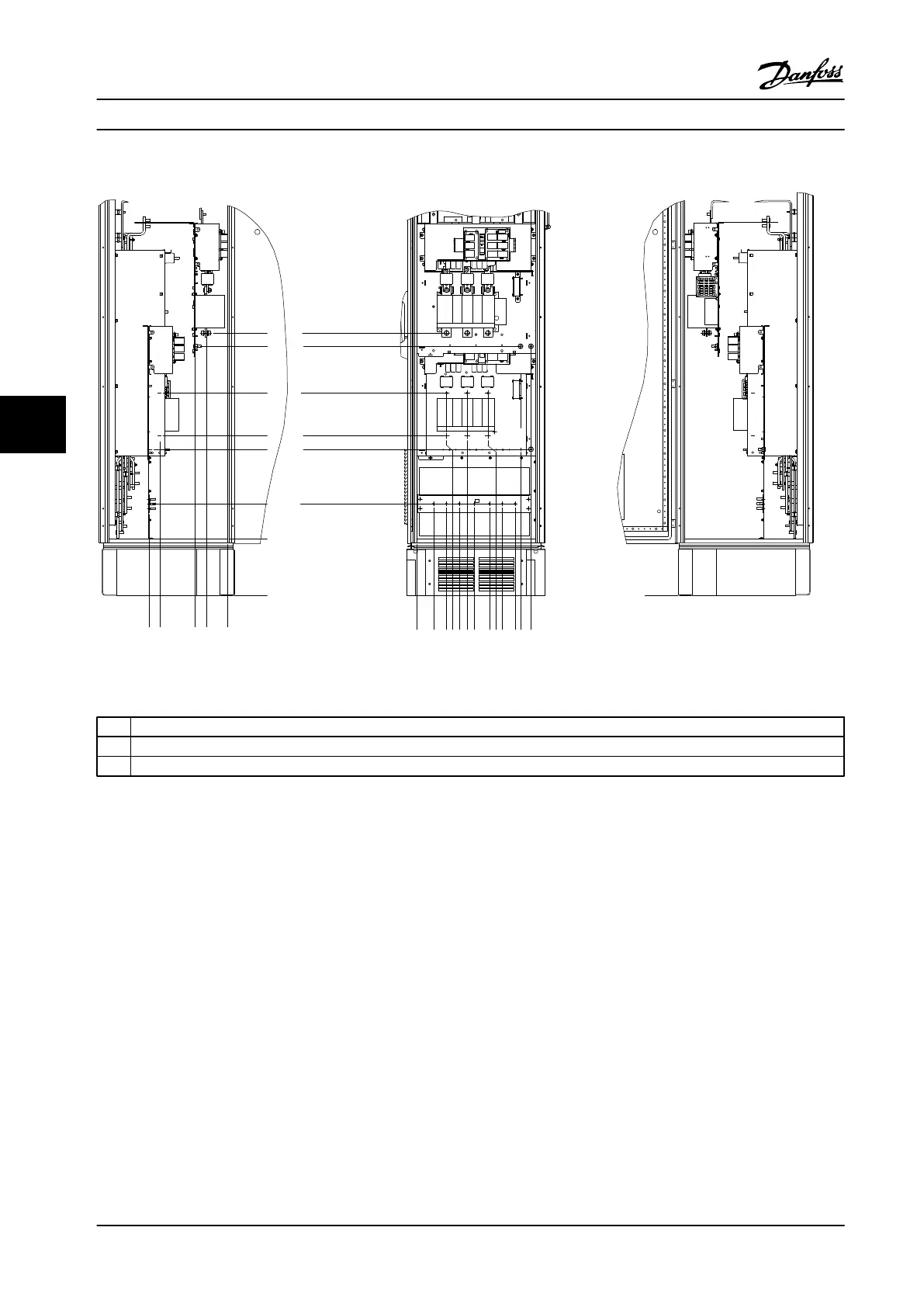

Figure 6.78 Terminal Locations - Options Cabinet.
1
Left Side View
2 Front View
3 Right Side View
Table 6.45 Legend to Figure 6.78
