Danfoss VLT AutomationDrive FC 360 Design Guide

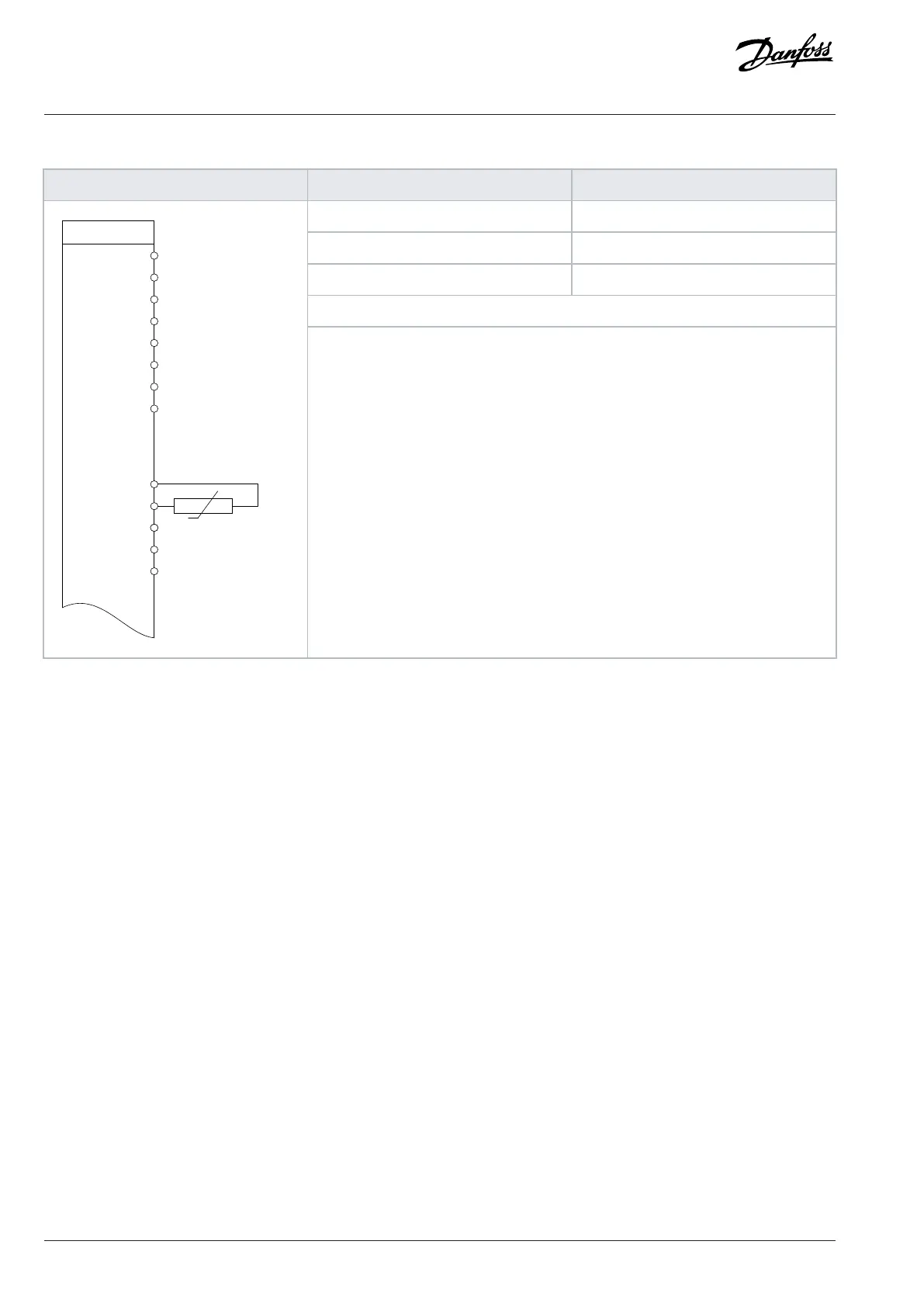

Table 73: Motor Thermistor
Parameter function Parameter setting
Parameter 1-90 Motor Thermal Protection [2] Thermistor trip
Parameter 1-93 Motor Thermal Source [1] Analog input 53
Parameter 6-19 Terminal 53 mode *[1] Voltage
*=Default value
e30bf824.10
+ 24 V
D IN
D IN
D IN
D IN
D IN
+ 10
V
A IN
A IN
COM
A OUT
12
31
18
19
27
29
32
33
50
53
54
55
42
FC
D IN
D IN
Notes/comments: If only a warning is needed, set parameter 1-90 Motor Thermal
Protection to [1] Thermistor warning.
126 | Danfoss A/S © 2024.01 AJ435824192086en-000101 / 130R1295
Design Guide | VLT® AutomationDrive FC 360
