10.4 Start/Stop

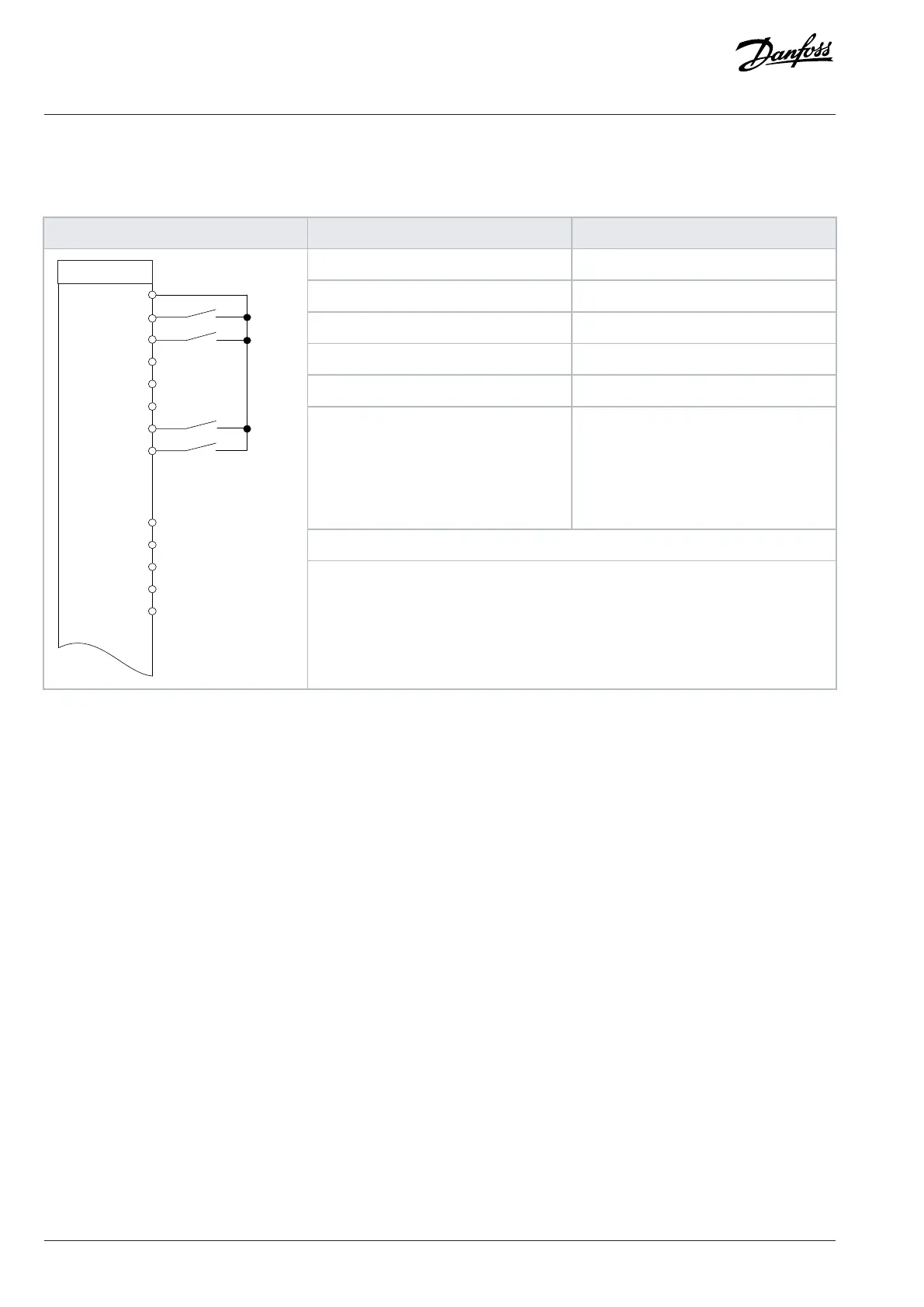

Table 71: Start/Stop with Reversing and 4 Preset Speeds
Parameter function Parameter setting
Parameter 5-10 Terminal 18 Digital Input *[8] Start
Parameter 5-11 Terminal 19 Digital Input *[10] Reversing
Parameter 5-12 Terminal 27 Digital Input [0] No operation
Parameter 5-14 Terminal 32 Digital Input [16] Preset ref bit 0
Parameter 5-15 Terminal 33 Digital Input [17] Preset ref bit 1
Parameter 3-10 Preset Reference
Preset ref. 0
Preset ref. 1
Preset ref. 2
Preset ref. 3
25%
50%
75%
100%
*=Default value
e30bf822.10
FC
+ 24 V
D IN
D IN
D IN
D IN
D IN
D IN
+ 10
V
A IN
A IN
COM
A OUT
12
19
18
27
29
32
33
50
53
54
55
42
31
D IN
Notes/comments:
