Design Guide | VLT® AutomationDrive FC 360
Table 70: Speed Up/Speed Down
Parameter function Parameter setting
Parameter 5-10 Terminal 18 Digital Input *[8] Start
Parameter 5-12 Terminal 27 Digital Input [19] Freeze Reference
Parameter 5-13 Terminal 29 Digital Input [21] Speed Up
Parameter 5-14 Terminal 32 Digital Input [21] Speed Down
*=Default value
FC
+ 24 V
D IN
D IN
D IN
D IN
D IN
D IN
+ 10
V
A IN
A IN
COM
A OUT
12
31
18
19
27
29
32
33
50
53
54
55
42
e30bf821.10
D IN
Notes/comments:
e30bb840.12
Speed
Reference
Start (18)
Freeze ref (27)
Speed up (29)
Speed down (32)

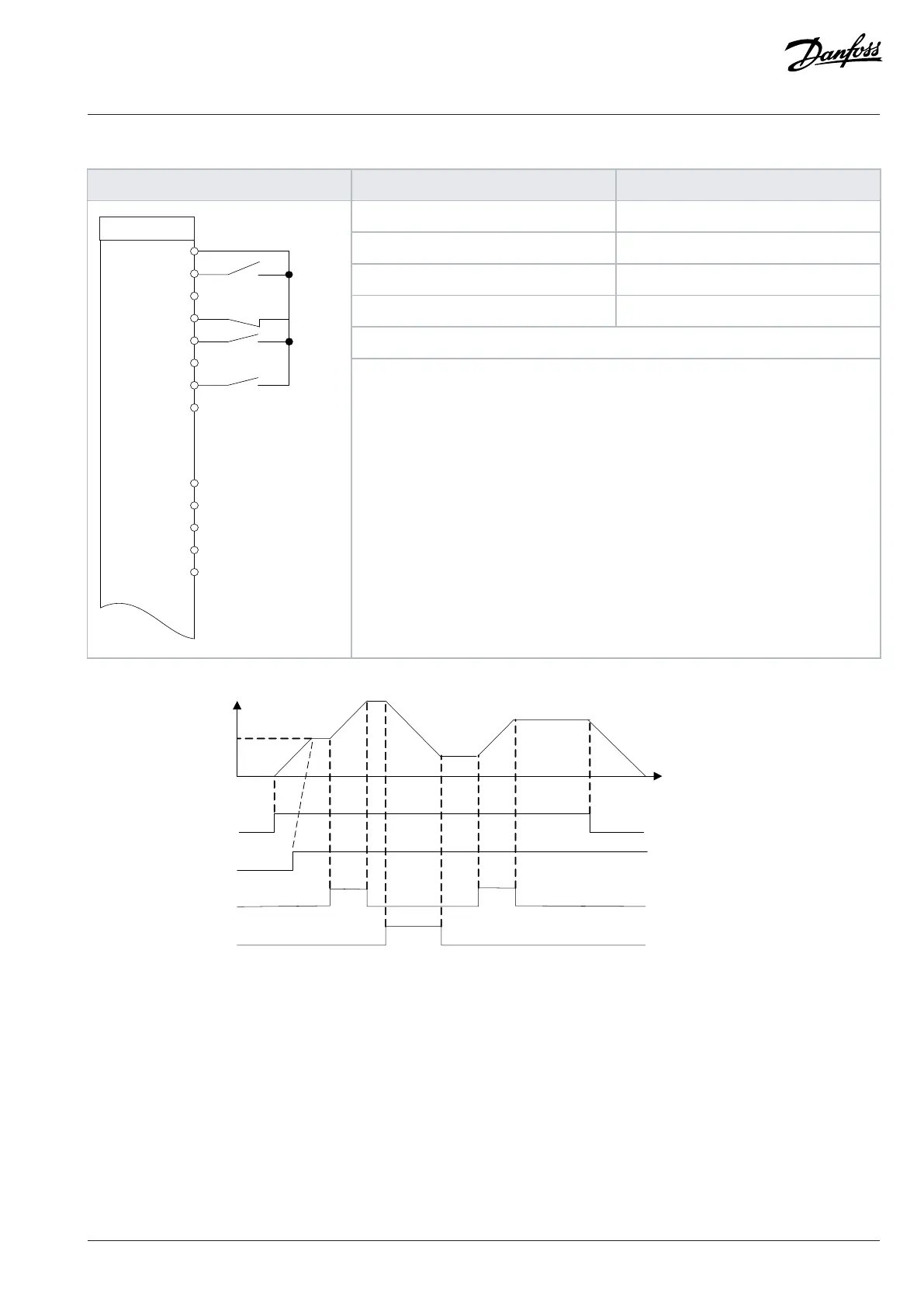

Figure 65: Speed Up/Speed Down
