Danfoss VLT AutomationDrive FC 360 Design Guide

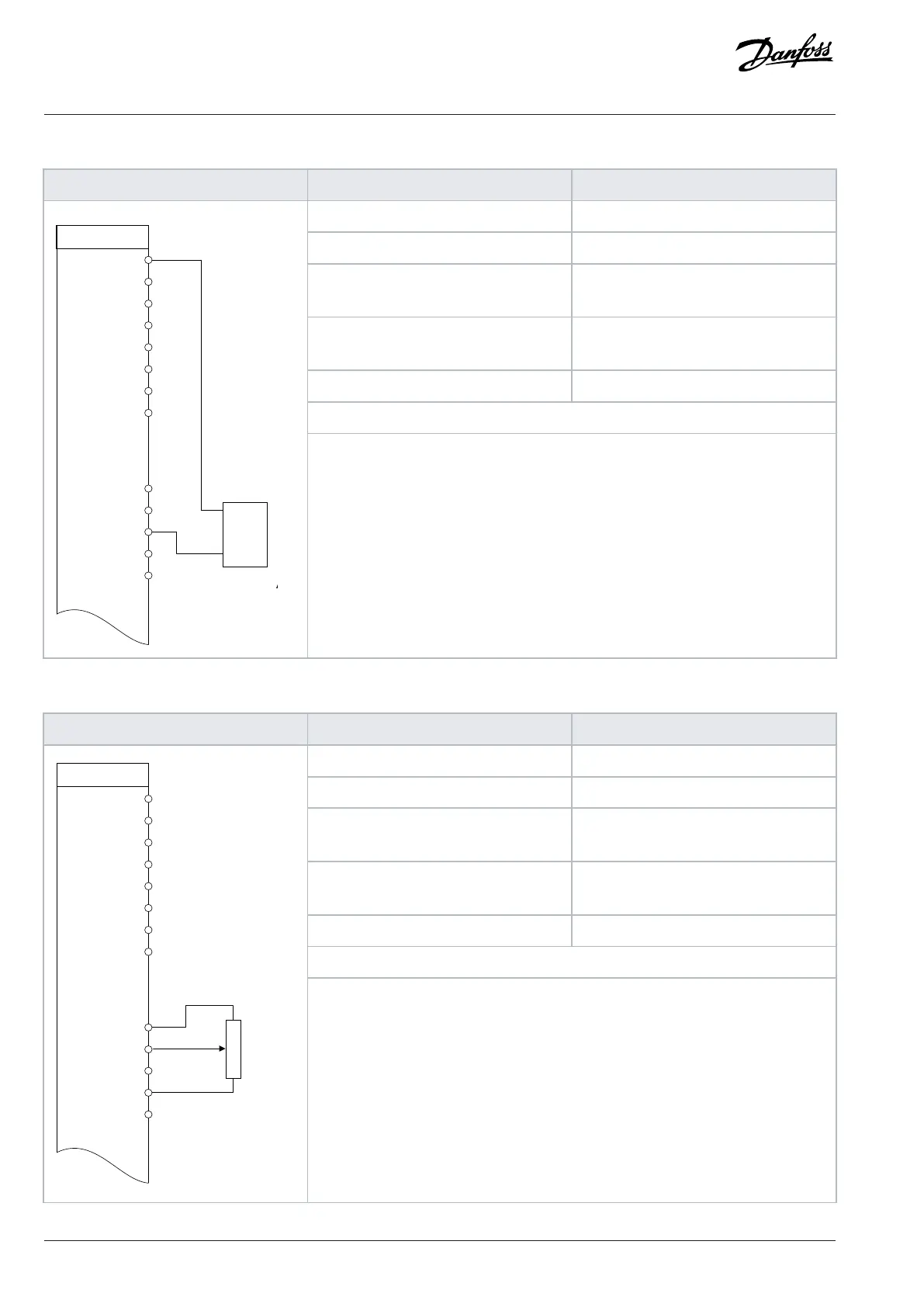

Table 68: Analog Speed Reference (Current)
Parameter function Parameter setting
Parameter 6-22 Terminal 54 Low Current *4 mA
Parameter 6-23 Terminal 54 High Current *20 mA
Parameter 6-24 Terminal 54 Low Ref./
Feedb. Value
*0
Parameter 6-25 Terminal 54 High Ref./
Feedb. Value
50 Hz
Parameter 6-29 Terminal 54 mode [0] Current
*=Default value
e30bf819.10
+ 24 V
D IN
D IN
D IN
D IN
D IN
D IN
+ 10
V
A IN
A IN
COM
A OUT
12
31
18
19
27
29
32
33
50
53
54
55
42
4 - 20mA
+
-
FC
D IN
Notes/comments:
Table 69: Speed Reference (Using a Manual Potentiometer)
Parameter function Parameter setting
Parameter 6-10 Terminal 53 Low Voltage *0.07 V
Parameter 6-11 Terminal 53 High Voltage *10 V
Parameter 6-14 Terminal 53 Low Ref./
Feedb. Value
*0
Parameter 6-15 Terminal 53 High Ref./
Feedb. Value
50 Hz
Parameter 6-19 Terminal 53 mode *[1] Voltage
*=Default value
e30bf820.10
+ 24 V
D IN
D IN
D IN
D IN
D IN
D IN
+ 10
V
A IN
A IN
COM
A OUT
12
31
18
19
27
29
32
33
50
53
54
55
42
≈ 5kΩ
FC
D IN
Notes/comments:
122 | Danfoss A/S © 2024.01 AJ435824192086en-000101 / 130R1295
Design Guide | VLT® AutomationDrive FC 360
