5.18.2 J8 Terminal Dimensions
e30bg615.10
83 (3.3)
0.0
188 (7.4)
22 (0.9) 62 (2.4)
101 (4.0) 145 (5.7) 184 (7.2) 223 (8.8)
0.0
1
2
3

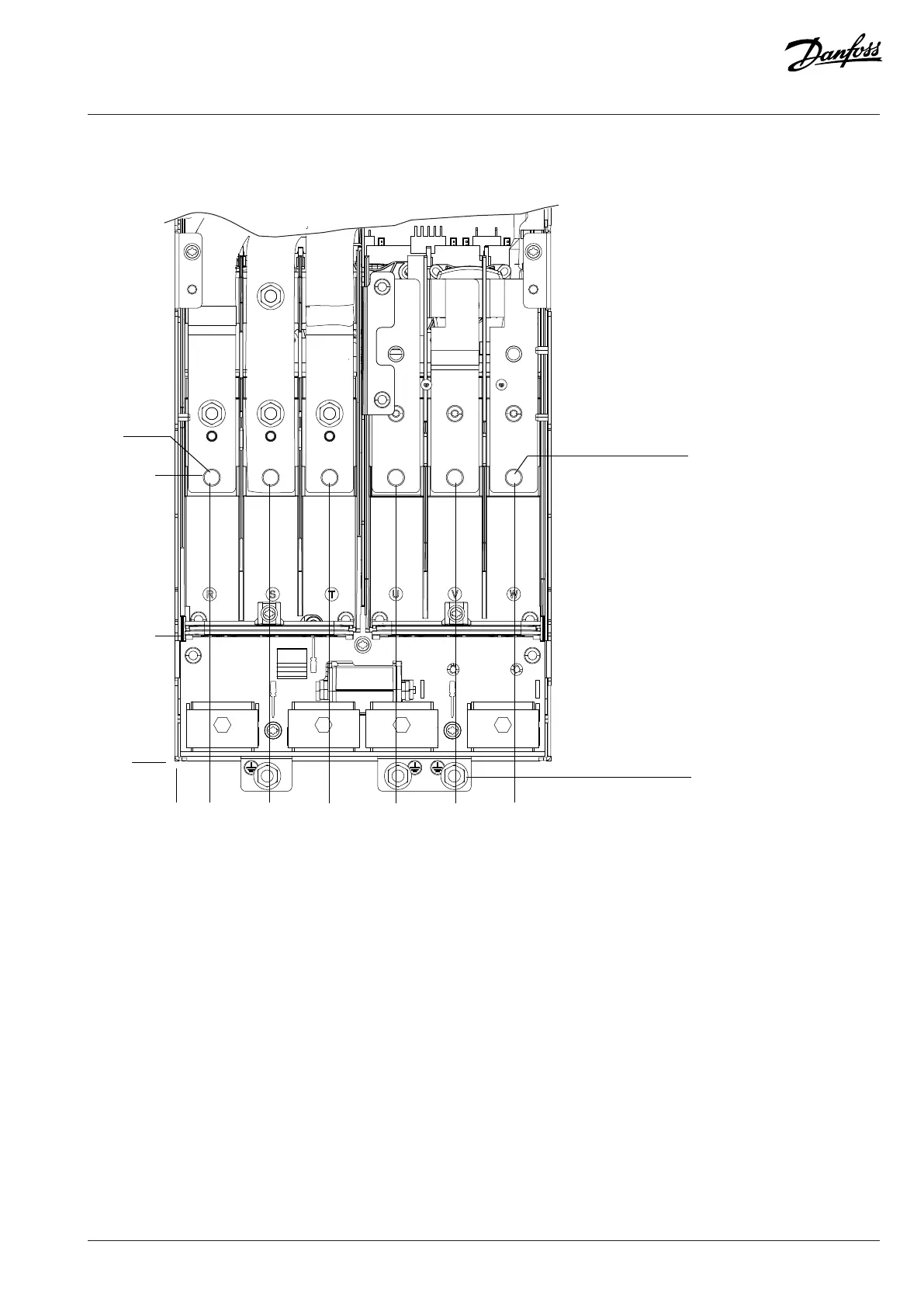

Figure 11: J8 Terminal Dimensions (Front View)
