e30bd366.12
+ 24 V DC
A
B
GND
12
18 3227
19 29 33 20

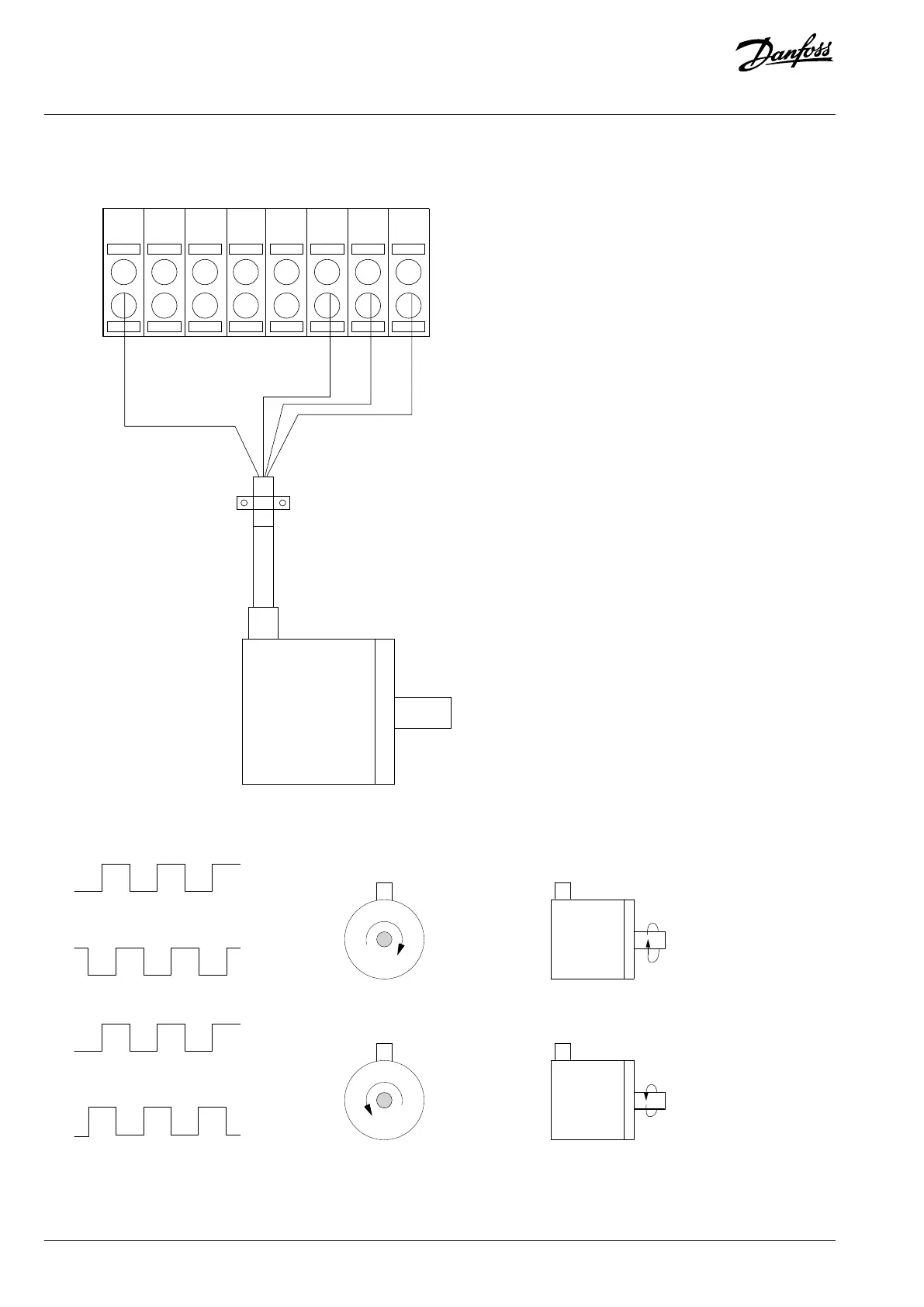

Figure 66: 24 V or 10–30 V Encoder
B
A
B
A
1
e30ba646.10
2
Figure 67: 24 V Incremental Encoder, Maximum Cable Length 5 m (16.4 ft)
128 | Danfoss A/S © 2024.01 AJ435824192086en-000101 / 130R1295
Design Guide | VLAutomationDrive FC 360
