Design Guide | VLT® AutomationDrive FC 360
1 Control Terminals 2 Relays
e30bv185.10
RELAY 1 RELAY 2
01 02 03 04 05 06
COMMON NO NC COMMON NO NC
VDD1
DI18 DI19
DIO27
DI31 DI32 DI33 GND
DIO29
12
18
19 27
29 31
32
33 20
10 V
AI53 AI54 AO42
AO45 GND
50 53
54 42 45
55
COM RS 485 P RS 485 N RS 485
61 68 69

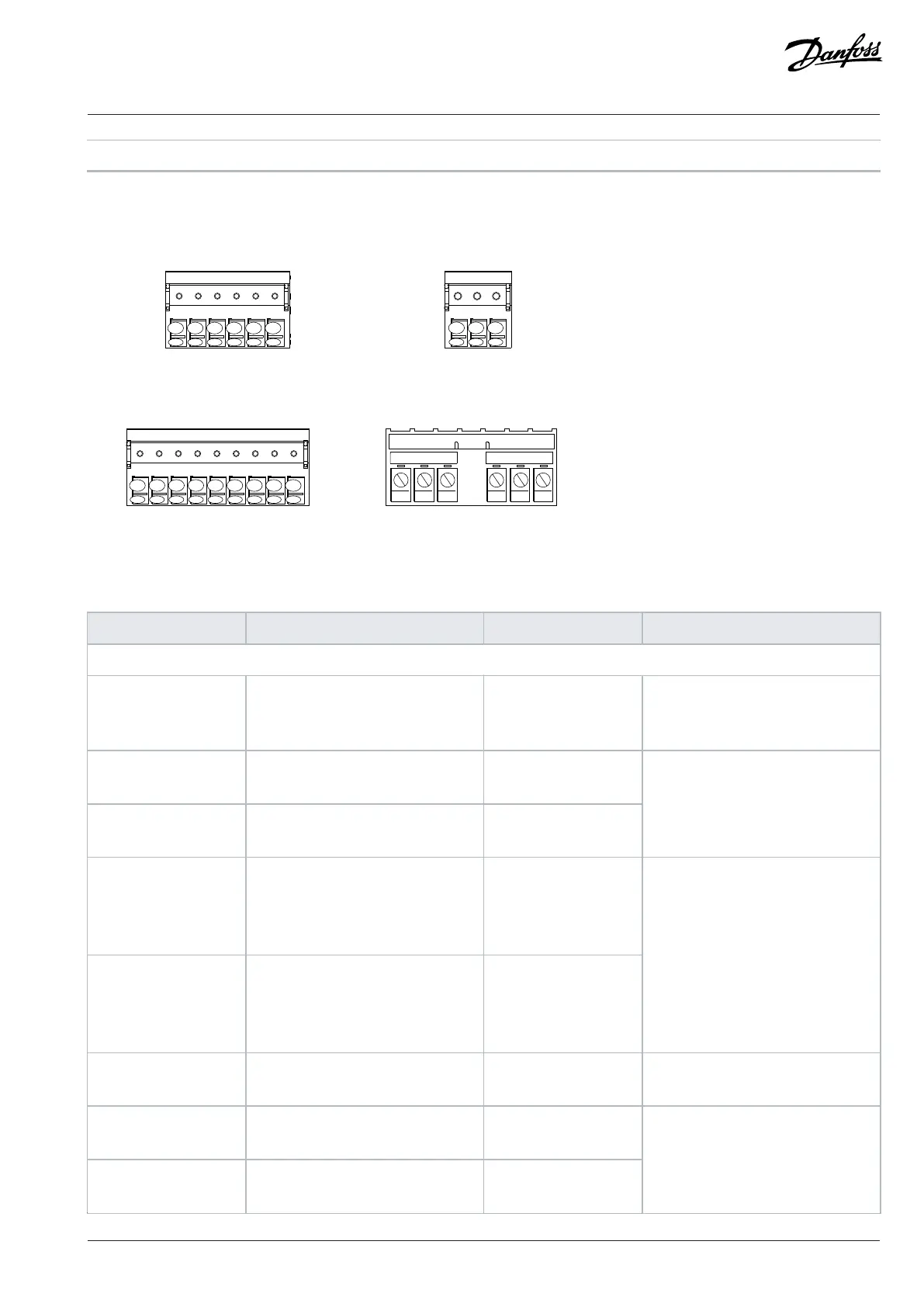

Figure 25: Terminal Numbers Located on the Connectors
Table 9: Terminal Descriptions
Terminal Parameter Default setting Description
Digital I/O, Pulse I/O, Encoder
12 – +24 V DC 24 V DC supply voltage. Maximum
output current is 100 mA for all 24 V
loads.
18 Parameter 5-10 Terminal 18 Digital
Input
[8] Start
19 Parameter 5-11 Terminal 19 Digital
Input
[10] Reversing
Digital inputs.
27 Parameter 5-12 Terminal 27 Digital
Input
Parameter 5-30 Terminal 27 Digital
Output
DI [2] Coast inverse
DO [0] No operation
29 Parameter 5-13 Terminal 29 Digital
Input
Parameter 5-31 Terminal 29 Digital
Output
DI [14] Jog
DO [0] No operation
Selectable for either digital input, dig-
ital output, or pulse output. Default
setting is digital input.
Terminal 29 can be used for pulse in-
put.
31 Parameter 5-16 Terminal 31 Digital
Input
[0] No operation Digital input.
32 Parameter 5-14 Terminal 32 Digital
Input
[0] No operation
33 Parameter 5-15 Terminal 33 Digital
Input
[0] No operation
Digital input, 24 V encoder. Terminal
33 can be used for pulse input.
Danfoss A/S © 2024.01 AJ435824192086en-000101 / 130R1295 | 55
