READING FEATURES
4
4 READING FEATURES
4.1 ADVANCED CODE BUILDER (ACB)
In addition to linear reading, the
Advanced Code Builder (ACB) allows code reading
by “stitching” together two partial reads of it. ACB is not as powerful as Advanced
Code Reconstruction due to limits on tilt angle, speed and Multi-label function; but it
is effective in the case of close-to-linear, small height codes, damaged codes, or poor
print quality codes.
ACB is used to read a code label when the scan line does not cross the label along
its entire length (excessive tilt angle).

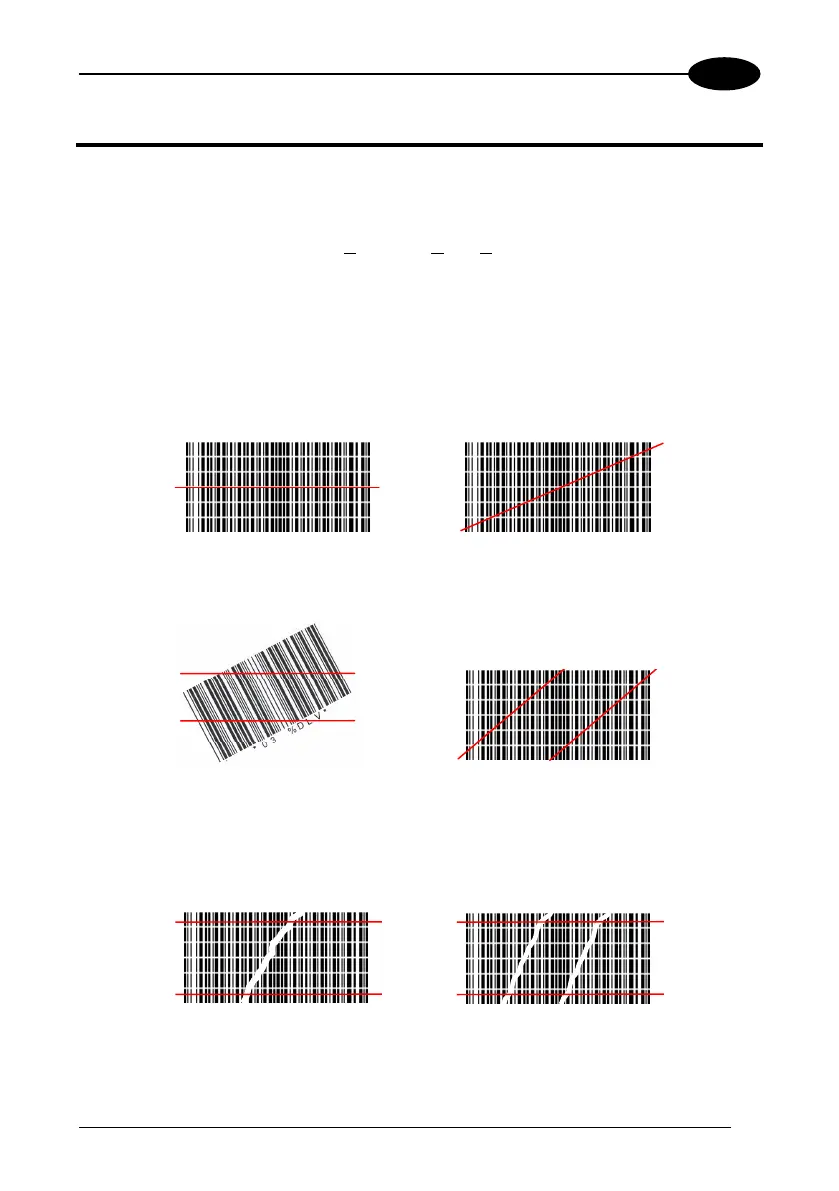

Linear Reading
Linear Reading
ACB Reading
ACB Reading
ACB reads two fragments of a label containing a start or a stop character and a
number of digits, and puts them together to build the complete label.
ACB also has an intrinsic ability to increase the reading percentage of damaged
codes as in the examples below:
ACB Readable
Not ACB Readable
55

Datalogic DS2400N Specifications

General

Type	-
Sensor type	Laser
Read rate (max)	1000 reads/s
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Pharmacode, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232, RS-485
Connectivity technology	Wired
Input voltage	10 - 30 V
Power source type	DC
Power consumption (typical)	5 W
Certification	IEC
Product color	Blue, Yellow
Housing material	Aluminum
International Protection (IP) code	IP65
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	34 mm
Width	84 mm
Height	68 mm
Weight	330 g
