Datalogic DS2400N User Manual

DS2400N
3
3.2.2 Mounting Scanner Accessories
GFC-2X00s are deflection mirrors available on request for DS2400N.
• The GFC-2000 is a 75° deflection mirror
• The GFC-2100 is a 90° deflection mirror
The reading position with respect to the scanner is shown below for each mirror.
75° ± 2°
90° ± 2°
GFC-2000
Laser Beam
GFC-2100

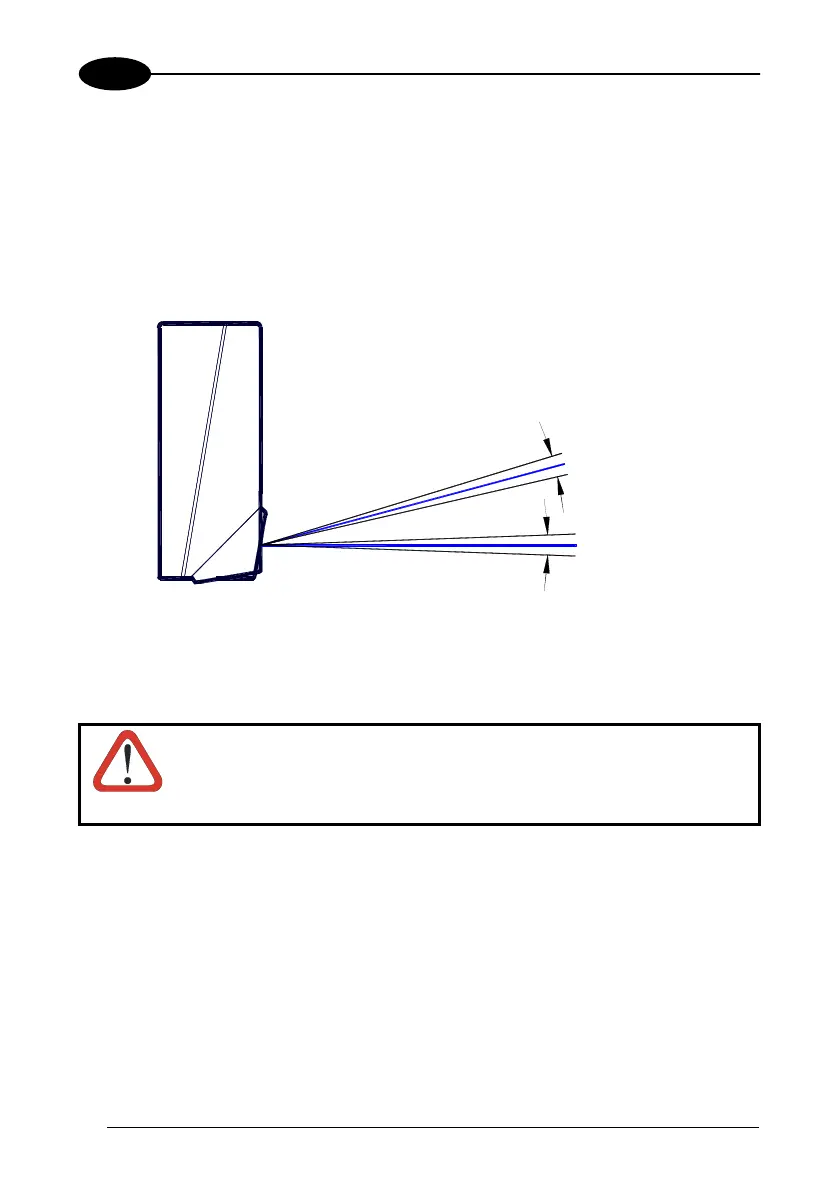

Figure 14 - GFC-2X00 Laser Beam Output Position
The installation of the deflection mirror is very easy (Figure 15).
CAUTION
Avoid any contact with the deflection mirror, mirrored rotor, the
lenses or other optical components, otherwise the performance of
the reader will be reduced.
1. Turn off the device.
2. Remove the DS2400N scanning window unscrewing the two cover screws.
3. Fix the mirror to the device by means of the two fixing screws.
4. Remount the scanning window so that the opening face is now at 90° with respect
to the DS2400N body.
28

Datalogic DS2400N Specifications

General

Type	-
Sensor type	Laser
Read rate (max)	1000 reads/s
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Pharmacode, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232, RS-485
Connectivity technology	Wired
Input voltage	10 - 30 V
Power source type	DC
Power consumption (typical)	5 W
Certification	IEC
Product color	Blue, Yellow
Housing material	Aluminum
International Protection (IP) code	IP65
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	34 mm
Width	84 mm
Height	68 mm
Weight	330 g
