INTRODUCTION
2
2.3.2 X-PRESS™ Functions
Quick access to the following functions is
provided by an easy procedure using the push
button:
1 – Press the button (the F0 LED will give a
visual feedback).
2 – Hold the button until the specific function
LED is on (F1, F2 or F3).
3 – Release the button to enter the specific
function.
F4
F3
F2
F1
F0
READY
GOOD
T
RIGGER
COM
STATUS
AutoSetup
AutoLearn
Test Mode
Exit

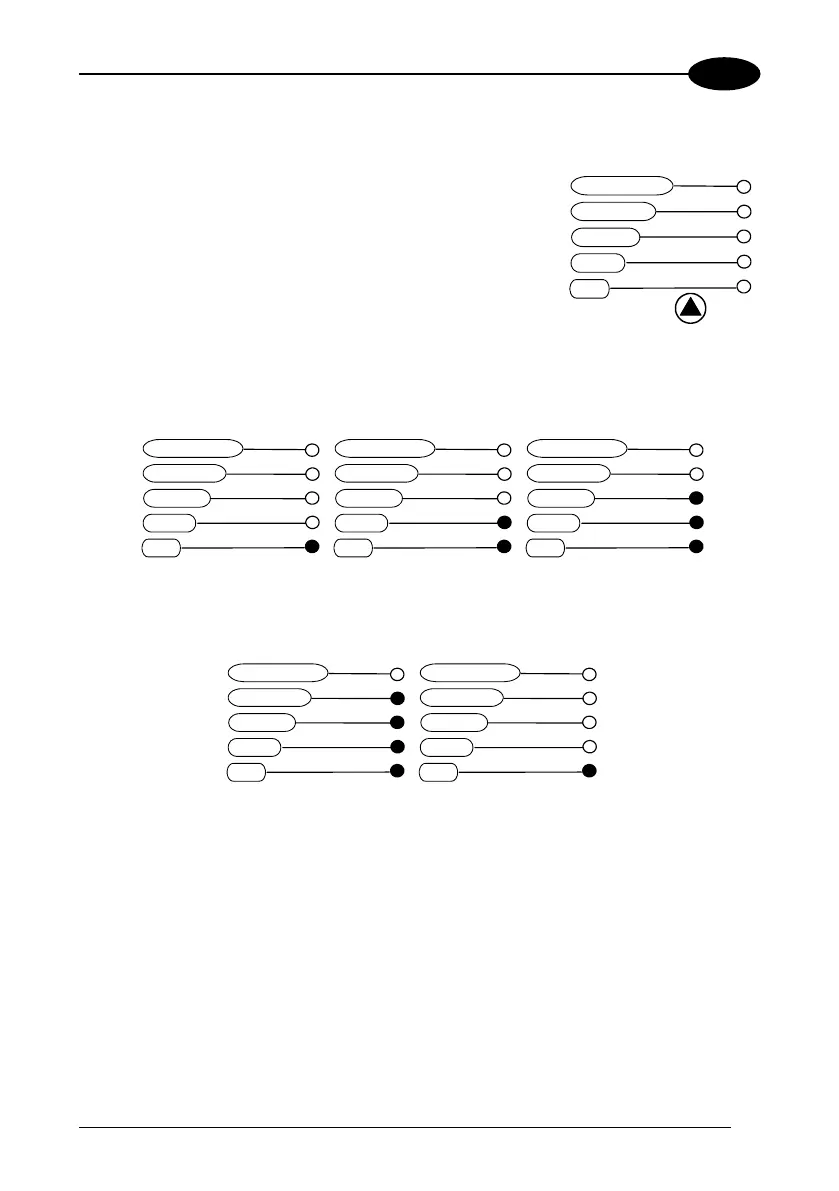

Once button is pressed, the cycle of LEDs activation is as follows:
F4
F3
F2
F1
F0
READY
GOOD
T
RIGGER
COM
STATUS
F4
F3
F2
F1
F0
READY
GOOD
T
RIGGER
COM
STATUS
F4
F3
F2
F1
F0
READY
GOOD
T
RIGGER
COM
STATUS

Release button to
Exit

Release button to
enter Test Mode

Release button to
enter AutoLearn
F4
F3
F2
F1
F0
READY
GOOD
T
RIGGER
COM
STATUS
F4
F3
F2
F1
F0
READY
GOOD
T
RIGGER
COM
STATUS

Release button to
enter AutoSetup
 (cycle)
Release button to
Exit
Test Mode (F1) Function
Once entered, the Bar Graph on the five LEDs is activated and if the scanner starts
reading barcodes the Bar-Graph shows the Good Read Rate. In case of no read
condition, only the STATUS LED is on and blinks.
To exit the Test Mode, press the X-PRESS™ push button once.
21

Datalogic DS2400N Specifications

General

Type	-
Sensor type	Laser
Read rate (max)	1000 reads/s
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Pharmacode, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232, RS-485
Connectivity technology	Wired
Input voltage	10 - 30 V
Power source type	DC
Power consumption (typical)	5 W
Certification	IEC
Product color	Blue, Yellow
Housing material	Aluminum
International Protection (IP) code	IP65
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	34 mm
Width	84 mm
Height	68 mm
Weight	330 g
