RAPID CONFIGURATION
1
1 RAPID CONFIGURATION
STEP 1 – CONNECT THE SYSTEM
To connect the system in a Stand Alone configuration, you need the hardware
indicated in Figure 1.
In this layout the data is transmitted to the Host on the main serial interface.
In Local Echo communication mode, data is transmitted on the RS232 auxiliary
interface independently from the main interface selection.
When On-Line Operating mode is used, the scanner is activated by an External
Trigger (photoelectric sensor) when the object enters its reading zone.
DS2400N
CBOX-100/150
Host
P.S.*
PG 6000
* Presence Sensor (for On-Line mode)

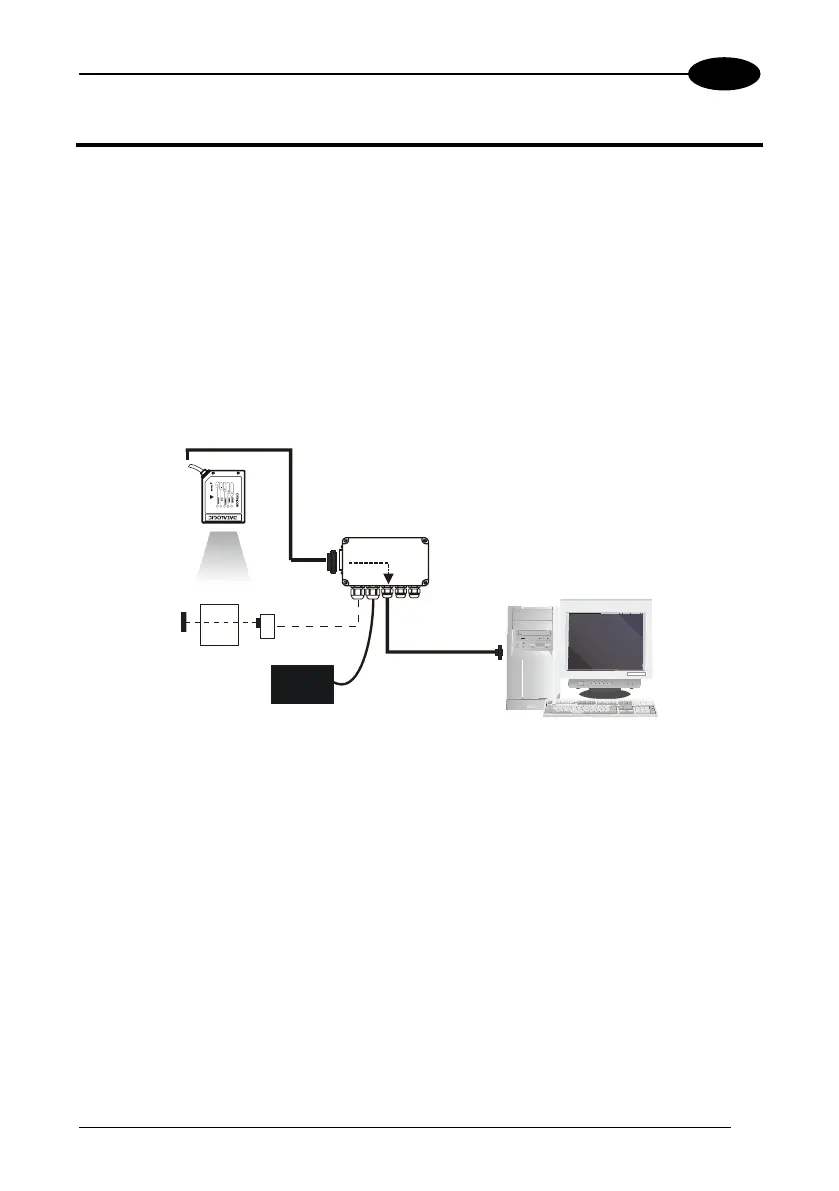

Figure 1 – DS2400N in Stand Alone Layout
