Datalogic DS2400N User Manual

RAPID CONFIGURATION
1
STEP 2 – MOUNTING AND POSITIONING THE SYSTEM
1. To mount the DS2100N, use the mounting bracket to obtain the most suitable
position for the reader as shown in the figures below.
Pitch
Skew
Tilt
Skew

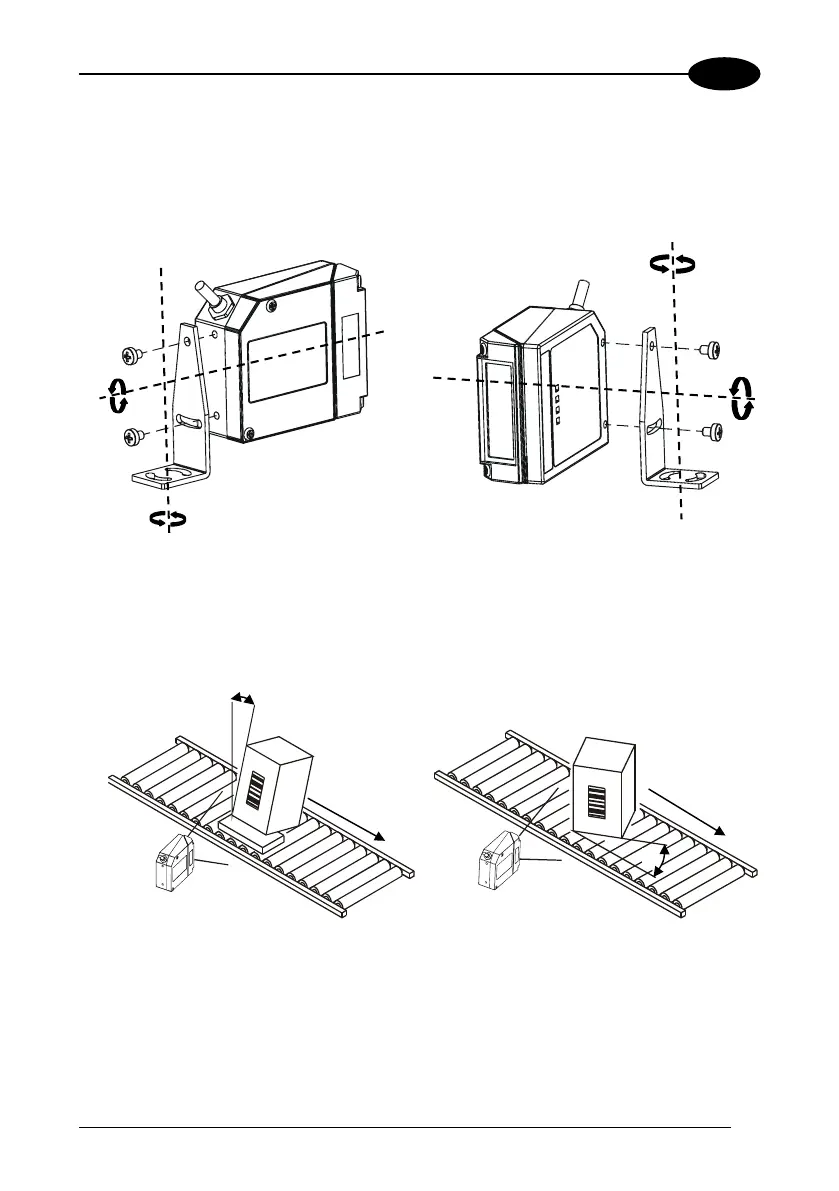

Figure 2 - Positioning with Mounting Bracket
2. When mounting the DS2100N take into consideration these three ideal label position
angles: Pitch 0°, Skew 10° to 30° and Tilt 0°.
Minimize Assure at least 10°
P
S
Figure 3 – Pitch and Skew Angles
3

Datalogic DS2400N Specifications

General

Type	-
Sensor type	Laser
Read rate (max)	1000 reads/s
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Pharmacode, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232, RS-485
Connectivity technology	Wired
Input voltage	10 - 30 V
Power source type	DC
Power consumption (typical)	5 W
Certification	IEC
Product color	Blue, Yellow
Housing material	Aluminum
International Protection (IP) code	IP65
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	34 mm
Width	84 mm
Height	68 mm
Weight	330 g
