DS2400N
4
4.2.1 Step-Ladder Mode
If scanning is perpendicular to the code motion direction (Figure 41), the number of
effective scans performed by the reader is given by the following formula:
SN = [(LH/LS)
*
SS] – 2 Where: SN = number of effective scans
LH = label height (in mm)
LS = label movement speed
in (mm/s)
SS = number of scans per second
Direction of code
movement at LS speed
LH
DS2400N
Laser beam

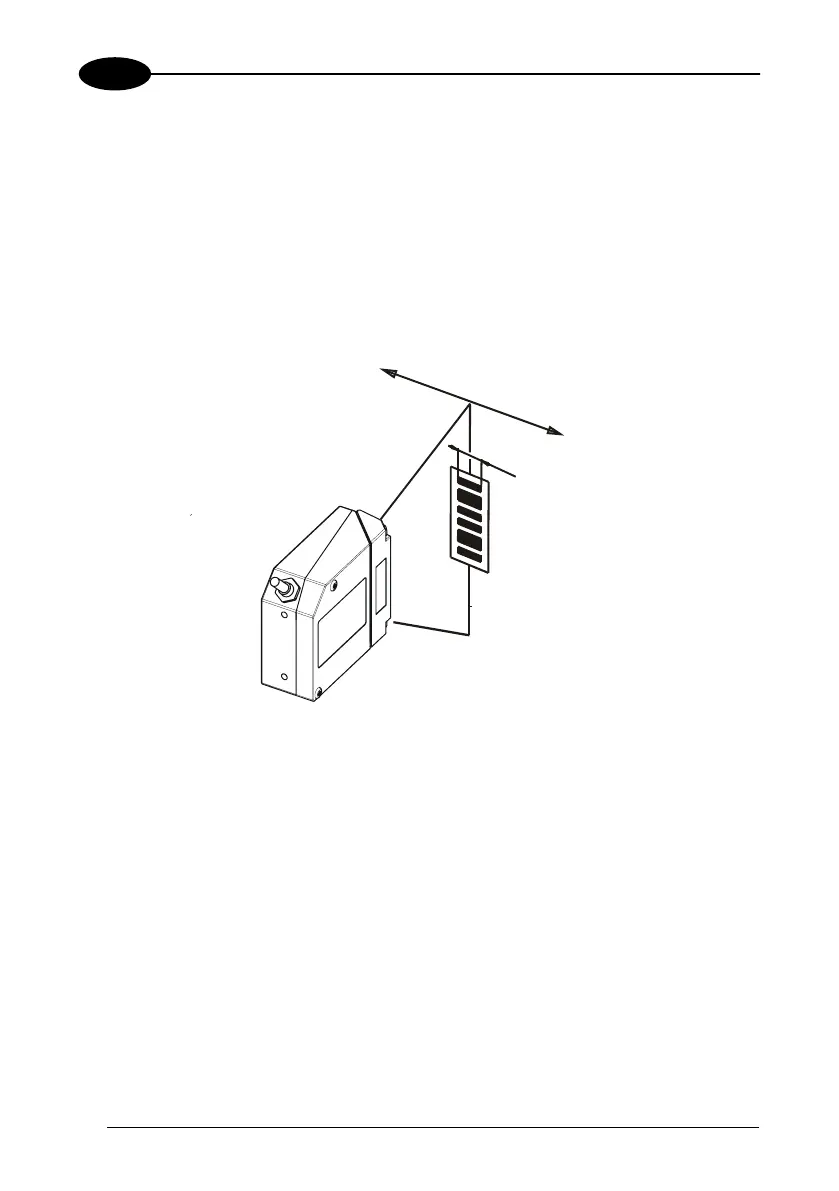

Figure 41 - "Step-Ladder" Scanning Mode
For example, the DS2400N (800 scans/sec.) for a 25 mm high code moving at 1250
mm/s performs:
[(25/1250)
*
800] - 2 = 14 effective scans
58
