3.6 TYPICAL LAYOUTS
The following typical layouts refer to system
hardware configurations. Dotted lines in
the figures refer to optional hardware configurations within the particular layout.
These layouts also require the correct setup of the software configuration
parameters. Complete software configuration procedures can be found in the Guide
To Rapid Configuration in the Genius™ Help On Line.
3.6.1 Point-to-Point
In this layout the data is transmitted to the Host on the main serial interface. A
Genius™ based Host Mode programming can be accomplished either through the
main interface or the auxiliary interface.
In Local Echo communication mode, data is transmitted on the RS232 auxiliary
interface independently from the main interface selection.
When On-Line Operating mode is used, the scanner is activated by an External
Trigger (photoelectric sensor) when the object enters its reading zone.
Terminal
Host
DS2400N
1
2
3
Main Serial Interface (RS232 or RS485 Full Duplex)
uxiliary Serial Interface (Local Echo) (RS232)
External Trigger (for On-Line mode)

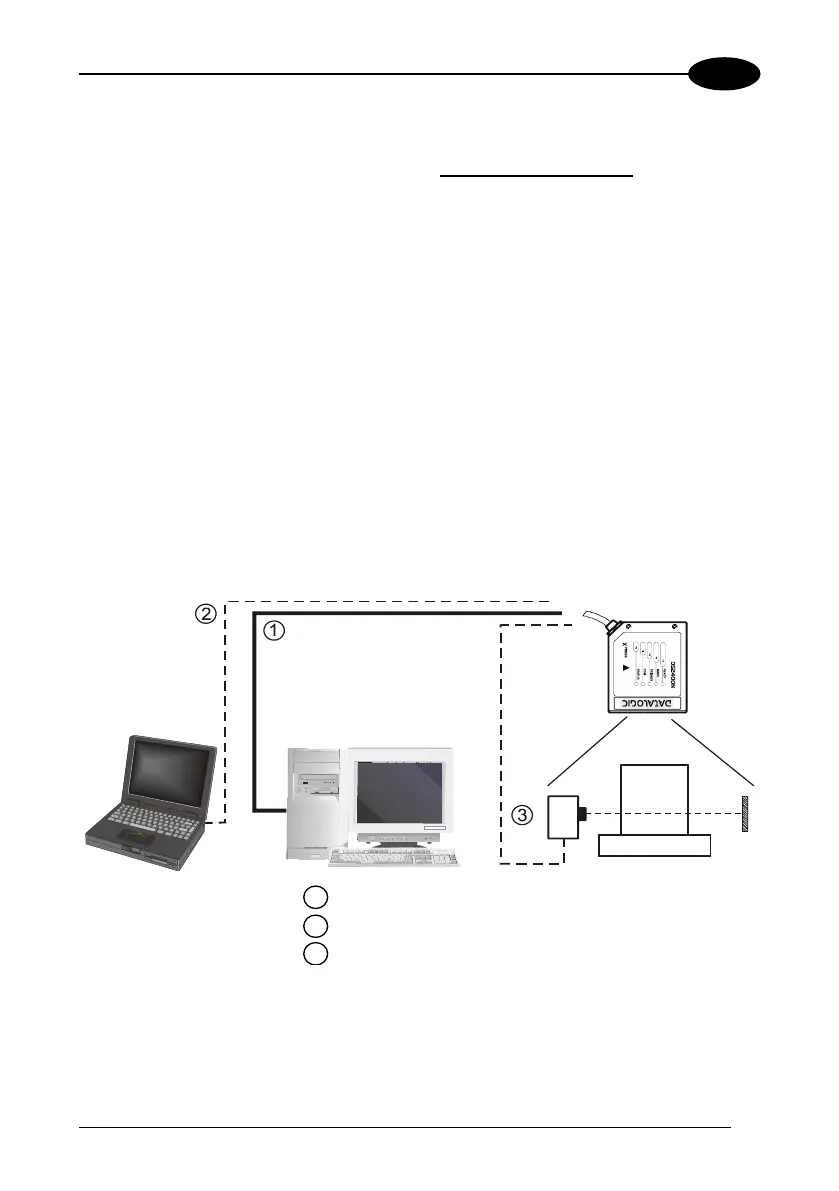

Figure 35 - Point-to-Point Layout
