INSTALLATION
3
RS232 Interface
The serial interface is used in this case for point-to-point connections; it handles
communication with the host computer and allows both transmission of code data
and the programming of the scanner. This is the default setting.
The following pins are used for RS232 interface connection:
Pin Name Function
2 TX232 transmit data
3 RX232 receive data
4 RTS232 request to send
5 CTS232 clear to send
7 SGND signal ground
It is always advisable to use shielded cables. The overall maximum cable length
must be less than 15 m (49.2 ft).

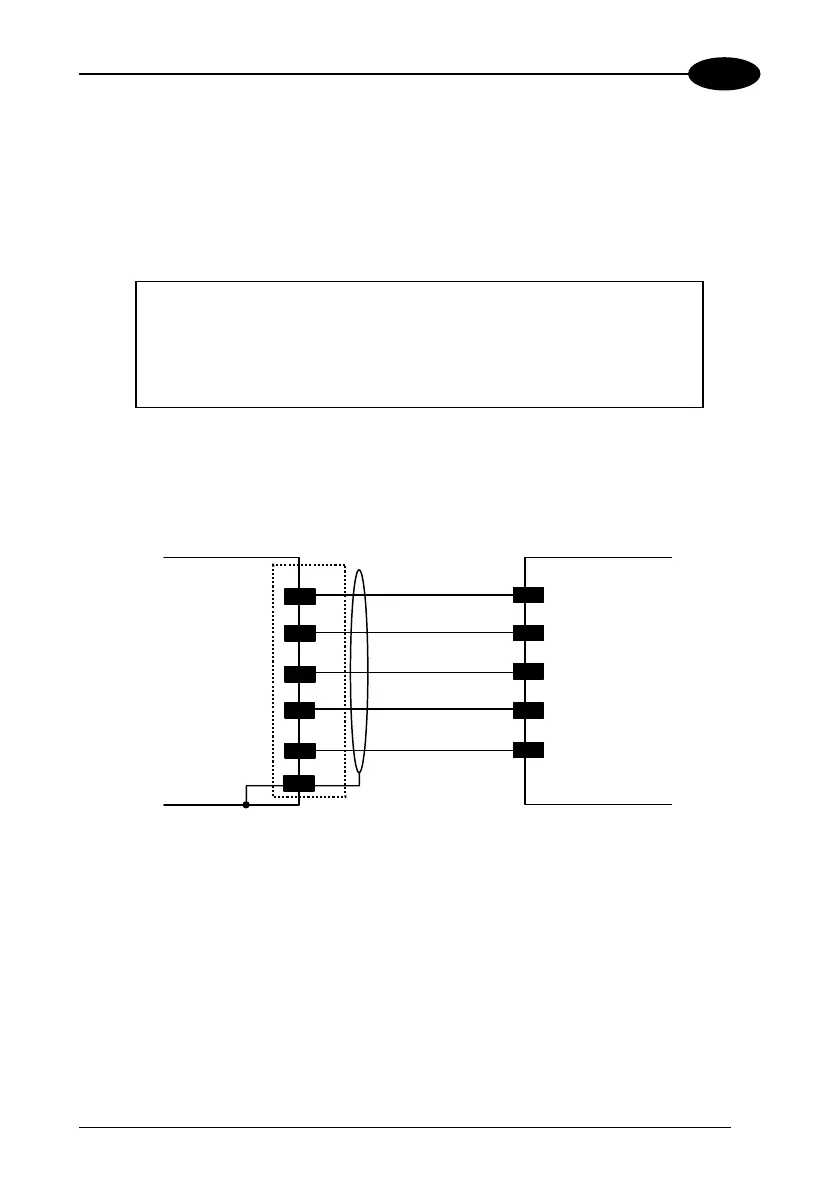

DS2400N
7
4
5
3
SGND
RTS232
CTS232
RX232
TX232
2
USER INTERFACE
SGND
DCD
DTR
TXD
RXD
1
Chassis
Figure 18 – RS232 Main Interface Connections using Hardware Handshaking
The RTS232 and CTS232 signals control data transmission and synchronize the
connected devices.
33

Datalogic DS2400N Specifications

General

Type	-
Sensor type	Laser
Read rate (max)	1000 reads/s
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Pharmacode, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232, RS-485
Connectivity technology	Wired
Input voltage	10 - 30 V
Power source type	DC
Power consumption (typical)	5 W
Certification	IEC
Product color	Blue, Yellow
Housing material	Aluminum
International Protection (IP) code	IP65
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	34 mm
Width	84 mm
Height	68 mm
Weight	330 g
