STEP 4 – INSTALLING GENIUS™ CONFIGURATION PROGRAM
Genius
™
is a Datalogic scanner configuration tool providing several important
advantages:
• Wizard approach for low skilled users;
• Multi-language version;
• Defined configuration directly stored in the reader;
• Communication protocol independent from the physical interface allowing to
consider the reader as a remote object to be configured and monitored.
To install Genius™, turn on the PC that will be used for the configuration, running
Windows 98, 2000/NT or XP, then insert the Genius™ CD-ROM, wait for the CD to
autorun and follow the installation procedure.
This configuration procedure assumes scanner connection to a C-BOX 100/150.
Genius™, running on a laptop computer, is connected to the scanner auxiliary port
through the C-BOX 100/150 9-pin connector.
Wizard for Quick Reader Setup
After installing the Genius™ software program the following window appears asking
the user to choose the desired configuration level.

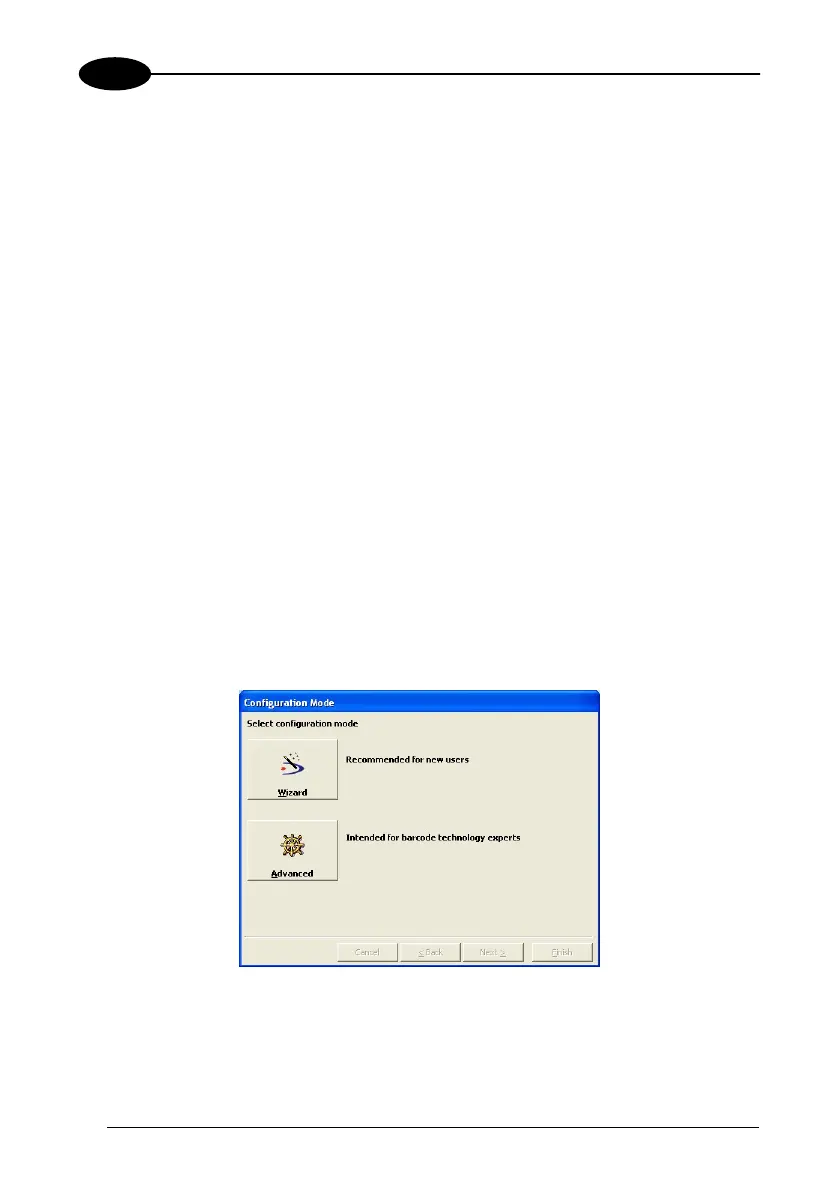

Figure 7 - Genius™ Wizard Opening Window
The Wizard option is advised to low skilled users, since it shows a step-by-step
scanner configuration.
8

Datalogic DS2400N Specifications

General

Type	-
Sensor type	Laser
Read rate (max)	1000 reads/s
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Pharmacode, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232, RS-485
Connectivity technology	Wired
Input voltage	10 - 30 V
Power source type	DC
Power consumption (typical)	5 W
Certification	IEC
Product color	Blue, Yellow
Housing material	Aluminum
International Protection (IP) code	IP65
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	34 mm
Width	84 mm
Height	68 mm
Weight	330 g
