DS2400N
3
RS485 Half-Duplex Interface
The RS485 half-duplex interface (3 wires + shield) is used for polled communication
protocols.
It can be used in a master/slave layout or for Multidrop connections with a Datalogic
Multiplexer, (see par. 3.6.4 and 3.6.5).
The connector pinout follows:
Pin Name Function
2 RTX485+ RS485 transmit/receive data +
4 RTX485- RS485 transmit/receive data -
7 SGND signal ground
RTX485 +
2
RTX485 -
4
RTX485 +
RTX485 -
7
SGND
MULTIPLEXER
RS485REF
DS2400N
1
Chassis

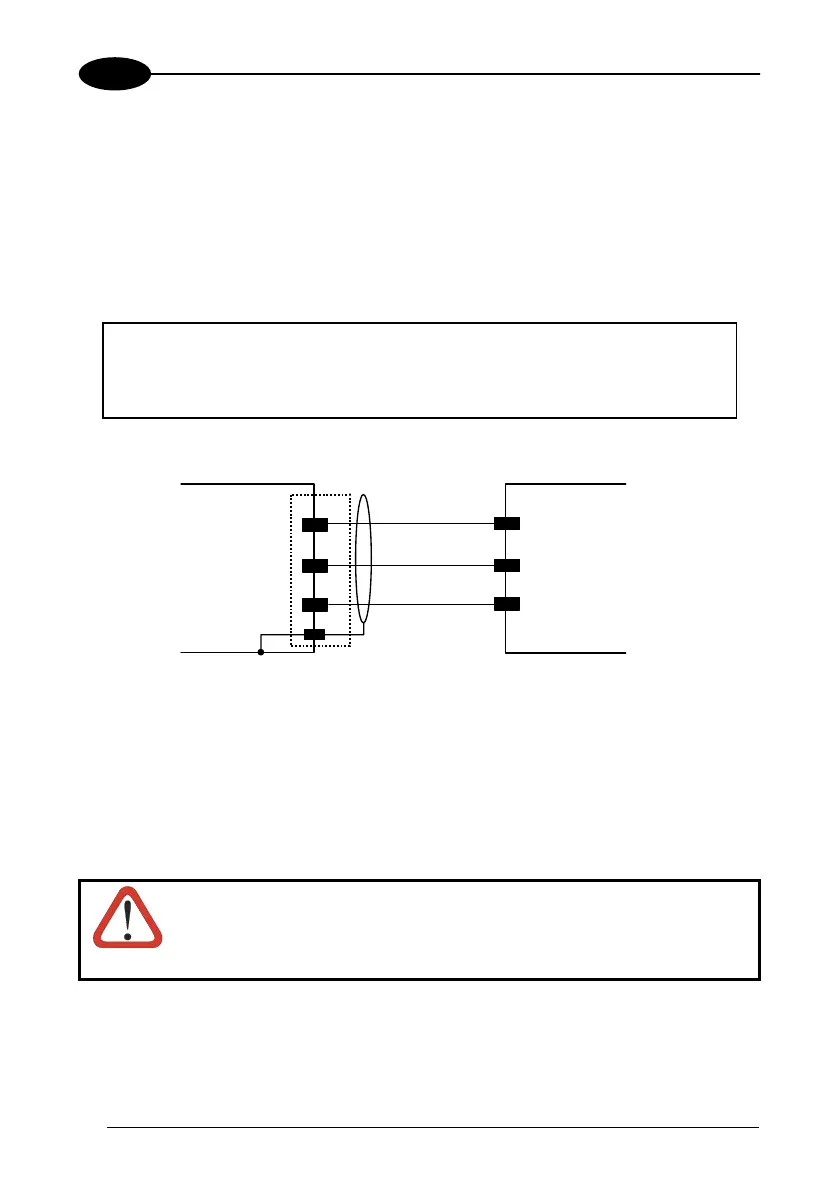

Figure 21 - RS485 Half-duplex Connections
This interface is forced by software when the protocol selected is MUX32 protocol.
In a Multiplexer layout or for slaves, the Multidrop address must also be set via serial
channel by the Genius™ utility or by the Host Programming Mode.
Errore. L'origine riferimento non è stata trovata. shows a multidrop configuration
with DS2400N scanners connected to a Multiplexer.
CAUTION
This is an example of multidrop wiring. Consult the multiplexer
manual for complete wiring instructions.
36

Datalogic DS2400N Specifications

General

Type	-
Sensor type	Laser
Read rate (max)	1000 reads/s
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Pharmacode, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232, RS-485
Connectivity technology	Wired
Input voltage	10 - 30 V
Power source type	DC
Power consumption (typical)	5 W
Certification	IEC
Product color	Blue, Yellow
Housing material	Aluminum
International Protection (IP) code	IP65
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	34 mm
Width	84 mm
Height	68 mm
Weight	330 g
