Datalogic DS2400N User Manual

DS2400N
3

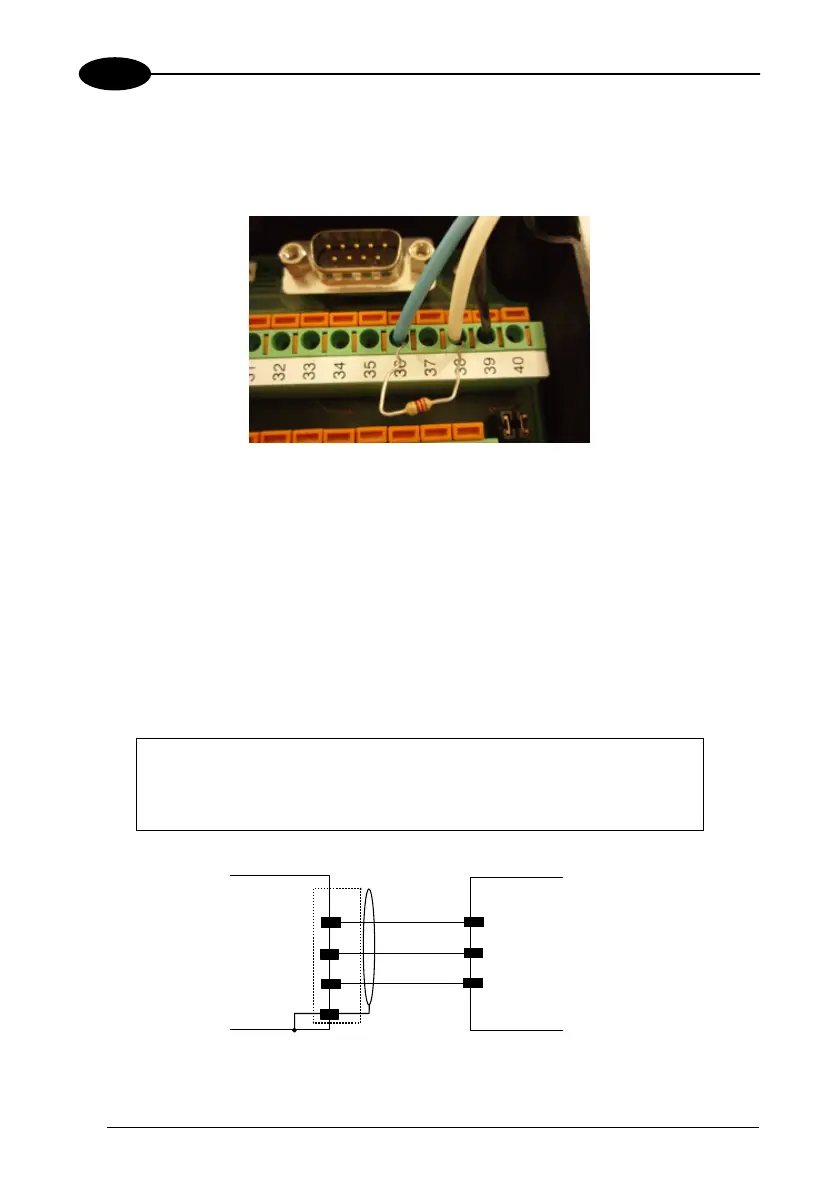

ID-NET™ Network Termination
The network must be properly terminated by a 120 Ohm resistor in the C-BOX 100 of
the first and last scanner of the network.
3.3.4 Auxiliary RS232 Interface
The auxiliary serial interface is used exclusively for RS232 point-to-point
connections.
The parameters relative to the aux interface (baud rate, data bits, etc.) as well as
particular operating modes such as LOCAL ECHO can be defined using the
Genius™ utility program or Genius™ based Host Mode Programming installed from
the CD-ROM.
The following pins of the 25-pin connector are used to connect the RS232 auxiliary
interface:
Pin Name Function
20 RXAUX receive data
21 TXAUX transmit data
7 SGND signal ground
7
SGND
SGND
TXD
RXAUX
20
RXD
TXAUX
21
USER INTERFACEDS2400N
1
Chassis
Figure 26 - RS232 Auxiliary Interface Connections using Hardware Handshaking
42

Datalogic DS2400N Specifications

General

Type	-
Sensor type	Laser
Read rate (max)	1000 reads/s
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Pharmacode, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232, RS-485
Connectivity technology	Wired
Input voltage	10 - 30 V
Power source type	DC
Power consumption (typical)	5 W
Certification	IEC
Product color	Blue, Yellow
Housing material	Aluminum
International Protection (IP) code	IP65
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	34 mm
Width	84 mm
Height	68 mm
Weight	330 g
