Datalogic DS2400N User Manual

INSTALLATION
3
3.6.3 RS232 Master/Slave
The RS232 master/slave connection is used to collect data from several scanners to
build either an multi-point or a multi-sided reading system; there can be one master
and up to 9 slaves connected together.
The Slave scanners use RS232 only on the main and auxiliary serial interfaces. Each
slave DS2400N transmits the messages received by the auxiliary interface onto the
main interface. All messages will be passed through this chain to the master.
The master scanner is connected to the Host on the main serial interface. The
possible main interface types for the Master scanner are RS232 or RS485. (20 mA
C.L. can also be used if the INT-22 accessory is installed).
Either
On-Line or Serial On-Line Operating modes can be used in this layout.
When On-Line Operating mode is used, the external trigger signal is unique to
the system, however it is not necessary to bring the external trigger signal to
the Slave scanners.

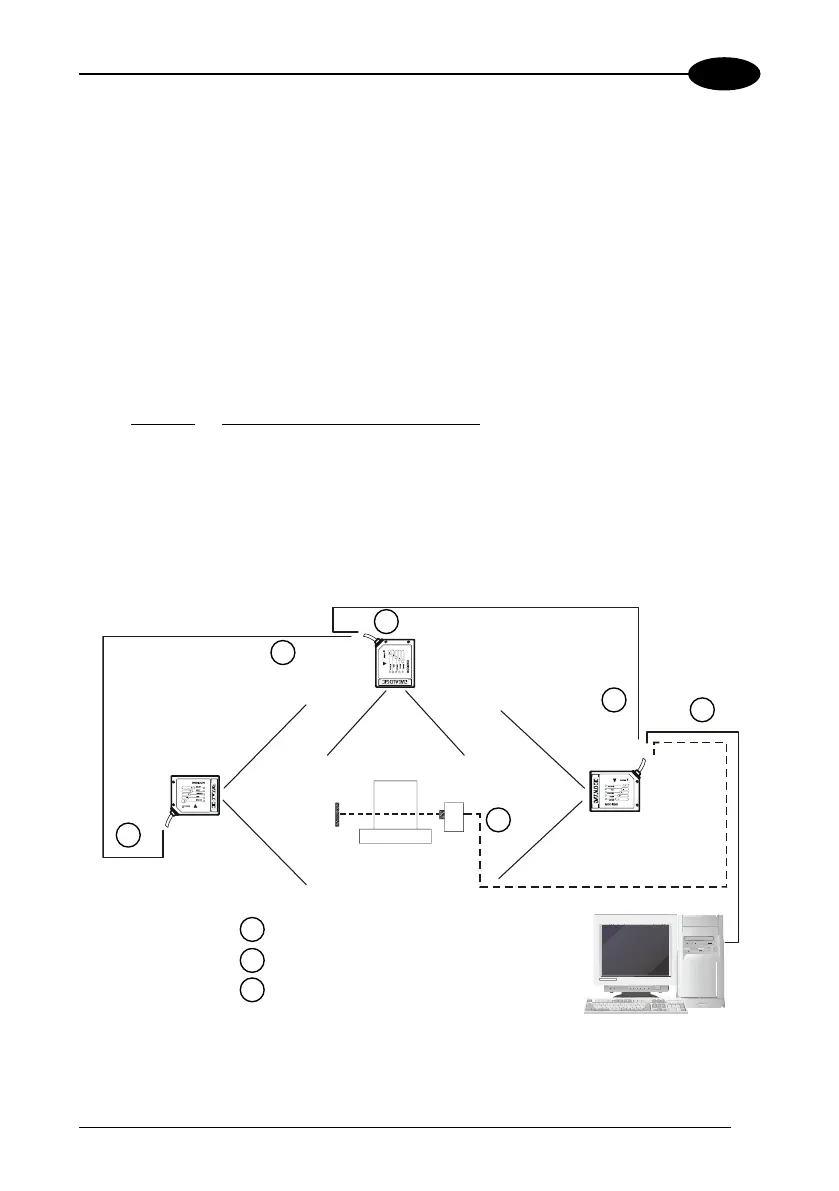

The main and auxiliary ports are connected as shown in the figure below.
Host
1
2
3
1
2
3
Main Serial Interface
A
uxiliary Serial Interface
External Trigger (for On-Line mode)
2
DS2400N
Slave
1
1
DS2400N
Slave
DS2400N
Master
Figure 37 - RS232 Master/Slave Layout
51

Datalogic DS2400N Specifications

General

Type	-
Sensor type	Laser
Read rate (max)	1000 reads/s
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Pharmacode, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232, RS-485
Connectivity technology	Wired
Input voltage	10 - 30 V
Power source type	DC
Power consumption (typical)	5 W
Certification	IEC
Product color	Blue, Yellow
Housing material	Aluminum
International Protection (IP) code	IP65
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	34 mm
Width	84 mm
Height	68 mm
Weight	330 g
