INSTALLATION
3
3.2.1 Mounting DS2400N
Using the DS2400N mounting bracket you can obtain the most suitable position for
the reader as shown in the figure below:

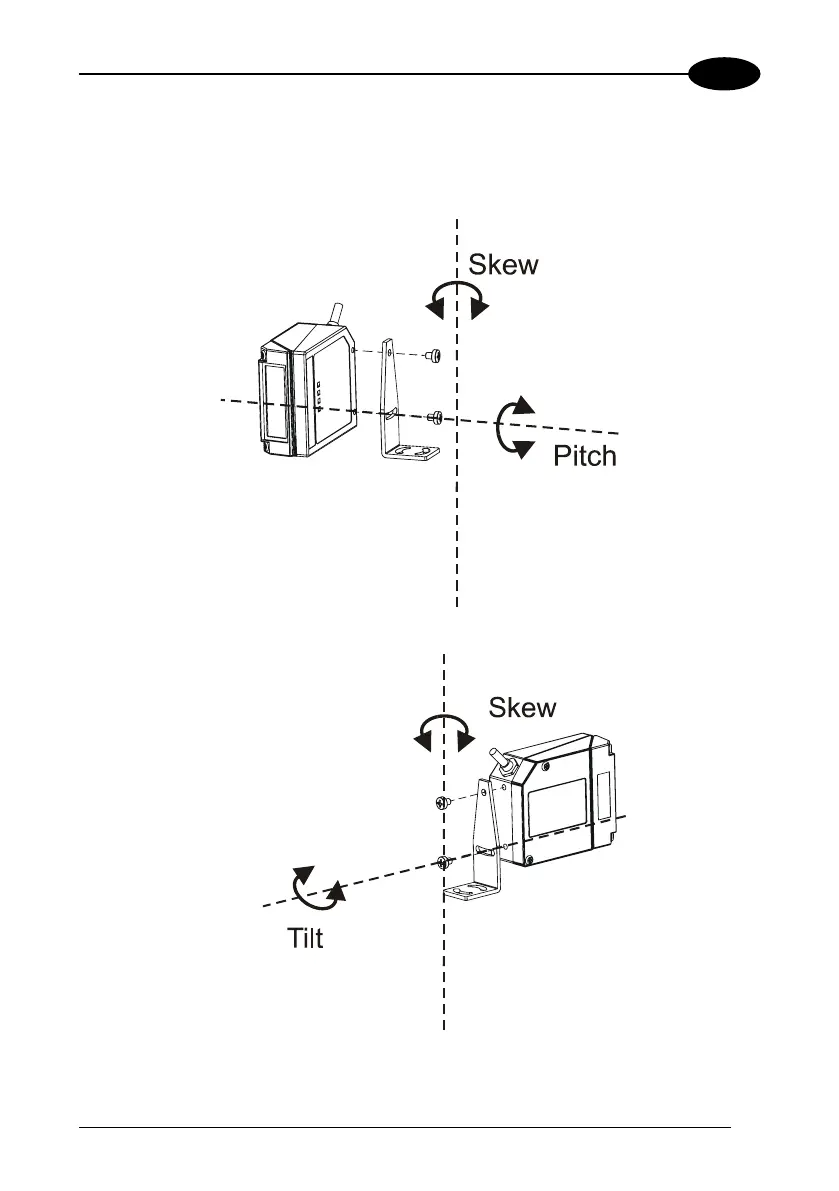

Figure 13 – Positioning with Mounting Bracket
27
