Datalogic DS2400N User Manual

INSTALLATION
3
max 2 m
DS2400N
# x
(up to 31)
DS2400N
# 1
DS2400N
# 0
RTX485 +
RTX485 -
RTX485 -
RTX485 +
Three wires +
shield
120 Ohm
120 Ohm
CHASSIS
SGND
max 1200 m
RS485 REF
SHIELD
MULTIPLEXER

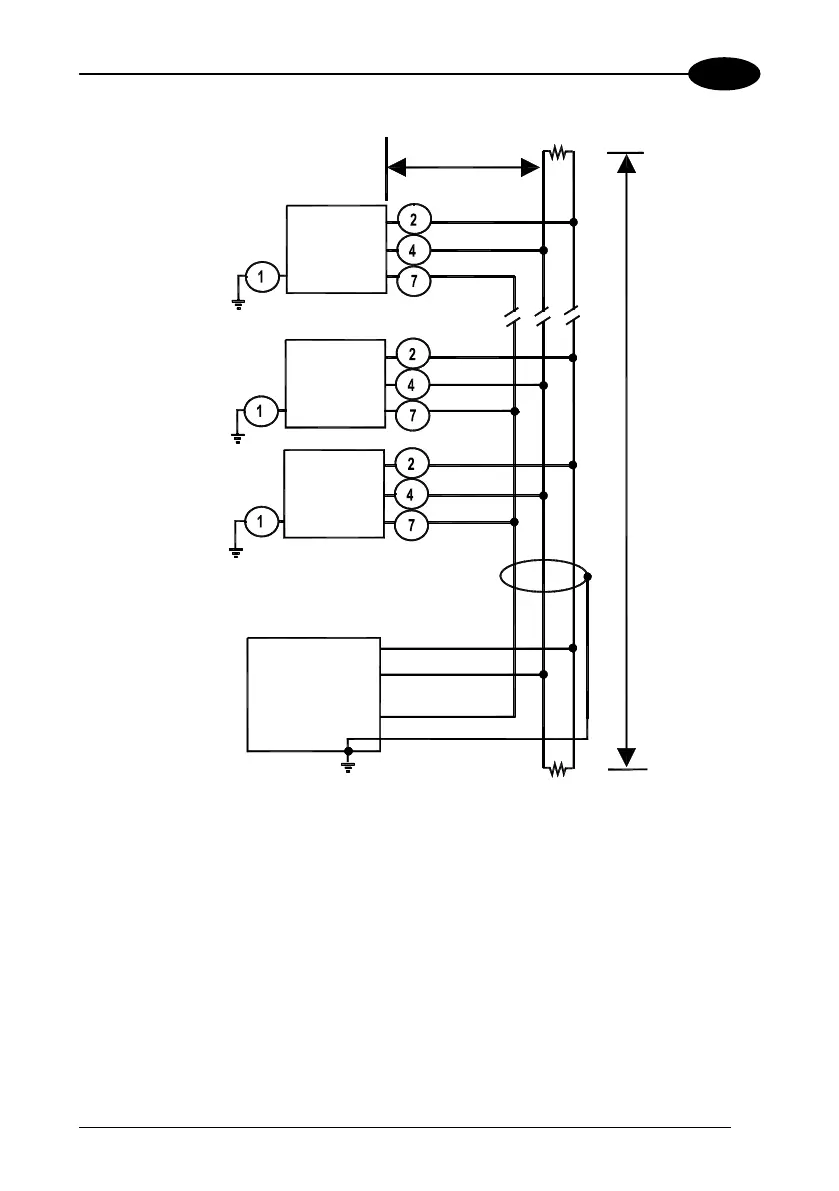

Figure 22 - DS2400N Multidrop Connection to a Multiplexer
20 mA Current Loop Interface (C-Box 100 w/INT-30 Accessory Only)
To adapt DS2400N to 20 mA current loop interfaces, it must be connected to a
C-Box 100, which is equipped with an INT-30 (20 mA current loop adapter accessory
board).
The INT-30 converts 20 mA current loop signals into RS232 signals to the scanner.
See the C-Box 100 Installation Manual and the INT-30 instructions.
37

Datalogic DS2400N Specifications

General

Type	-
Sensor type	Laser
Read rate (max)	1000 reads/s
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Pharmacode, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232, RS-485
Connectivity technology	Wired
Input voltage	10 - 30 V
Power source type	DC
Power consumption (typical)	5 W
Certification	IEC
Product color	Blue, Yellow
Housing material	Aluminum
International Protection (IP) code	IP65
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	34 mm
Width	84 mm
Height	68 mm
Weight	330 g
