Datalogic DS2400N User Manual

RAPID CONFIGURATION
1
STEP 3 – X-PRESS™ CONFIGURATION

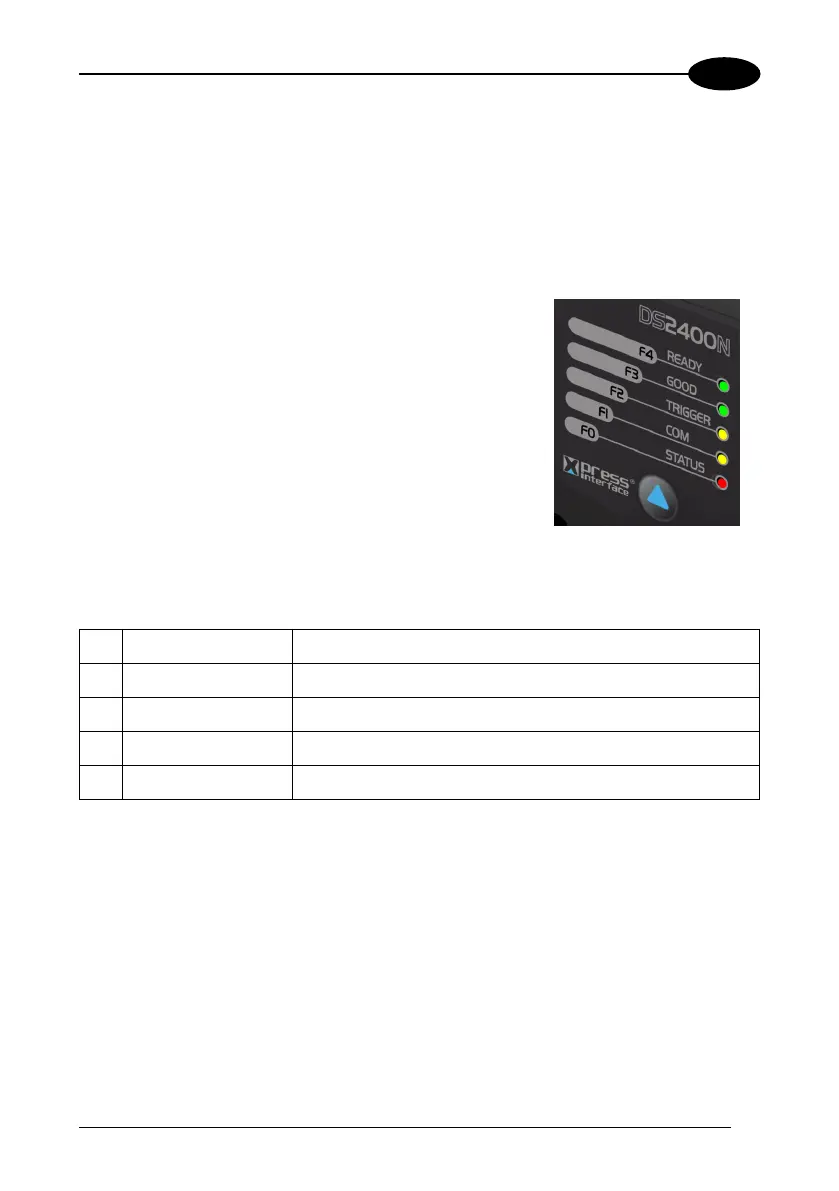

X-PRESS™ is the intuitive Human Machine Interface designed to improve ease of
installation and maintenance.
Status and diagnostic information are clearly presented by means of the five colored
LEDs, whereas the single push button gives immediate access to the following
relevant functions:
• Test Mode (F1) with bar graph visualization to
check static reading performance
• AutoLearn (F2) to self-detect and auto-configure
for reading unknown barcodes (by type and
length)
• AutoSetup (F3) to self-optimize and auto-
configure reading performance in demanding
applications
The colors and meaning of the five LEDs are illustrated in the following table:
F4 READY (green) This LED indicates the device is ready to operate.
F3 GOOD (green) This LED confirms successful reading.
F2 TRIGGER (yellow) This LED indicates the status of the reading phase.
F1 COM (yellow) This LED indicates active communication on main serial port.
F0 STATUS (red) This LED indicates a NO READ result.
During the reader startup (reset or restart phase), all the LEDs blink for one second.
On the back of the reader near the cable, the “POWER ON” LED indicates the laser
scanner is correctly powered.
5

Datalogic DS2400N Specifications

General

Type	-
Sensor type	Laser
Read rate (max)	1000 reads/s
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Pharmacode, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232, RS-485
Connectivity technology	Wired
Input voltage	10 - 30 V
Power source type	DC
Power consumption (typical)	5 W
Certification	IEC
Product color	Blue, Yellow
Housing material	Aluminum
International Protection (IP) code	IP65
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	34 mm
Width	84 mm
Height	68 mm
Weight	330 g
