Datalogic DS2400N User Manual

DS2400N
2

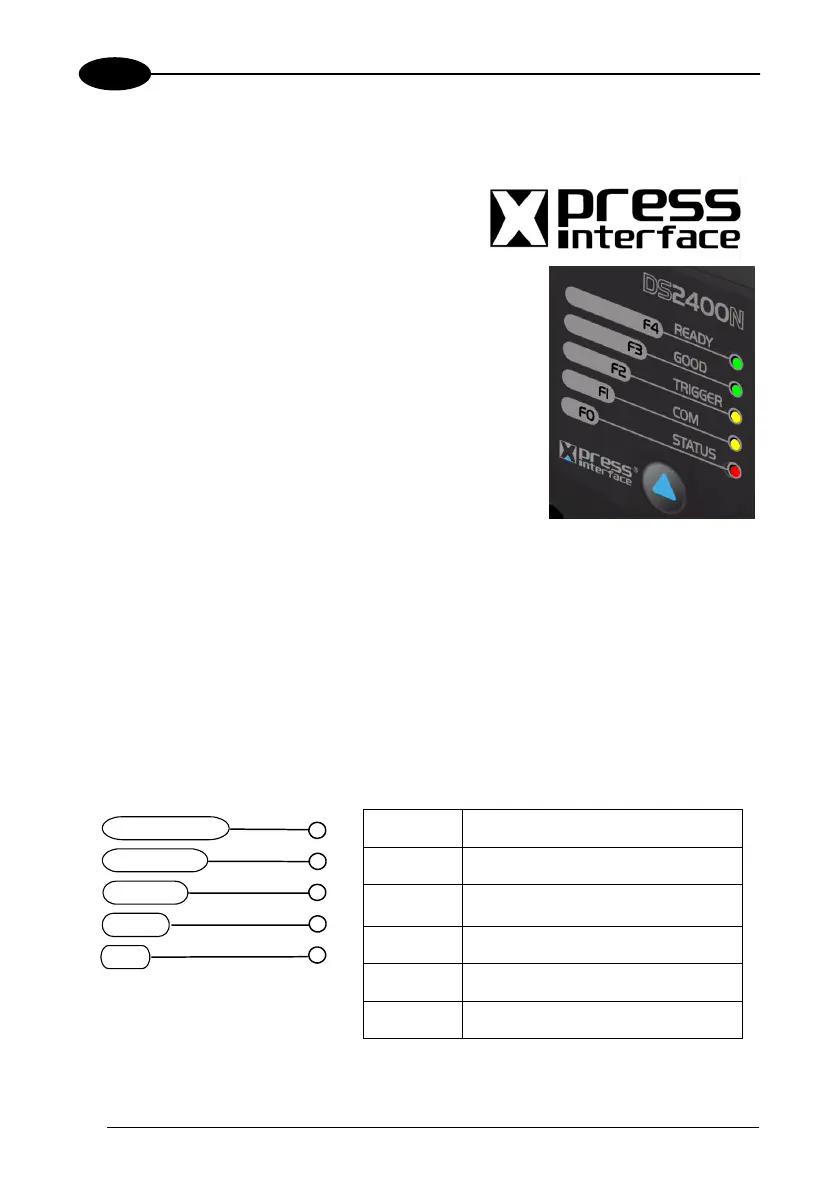

2.3 X-PRESS™ HUMAN MACHINE INTERFACE
X-PRESS™ is the intuitive Human Machine
Interface designed with the precise goal of
improving ease of installation and
maintenance.
Status and diagnostic information are clearly
presented by means of five-colored LEDs, whereas the
single multi-function key gives immediate access to
relevant functions:
• Test Mode (F1) with Bar-graph visualization to
check static reading performances
• Autolearn (F2) to self-detect unknown
barcodes
• Autosetup (F3) to self-optimize reading
performance in demanding application
X-PRESS™ is the common interface adopted in all new products: “You learn one,
you can use them all”.
The colors and meaning of the five LEDs are illustrated at par 2.1.1.
2.3.1 Diagnostic Indication
The “STATUS” and “READY” LEDs blink simultaneously to signal the presence of a
failure.
Diagnostic message transmission on interfaces can be enabled to provide details
about specific failure conditions.
At the same time one or more LEDs light up according to the following scheme:
F4
F3
F2
F1
F0
READY
GOOD
T
RIGGER
COM
STATUS
LED Status
READY BLINK
GOOD
ON to indicate any Failure different
than Motor or Laser failures.
TRIGGER ON to indicate a Motor Failure.
COM ON to indicate a Laser Failure.
STATUS BLINK
20

Datalogic DS2400N Specifications

General

Type	-
Sensor type	Laser
Read rate (max)	1000 reads/s
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Pharmacode, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232, RS-485
Connectivity technology	Wired
Input voltage	10 - 30 V
Power source type	DC
Power consumption (typical)	5 W
Certification	IEC
Product color	Blue, Yellow
Housing material	Aluminum
International Protection (IP) code	IP65
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	34 mm
Width	84 mm
Height	68 mm
Weight	330 g
