Datalogic DS2400N User Manual

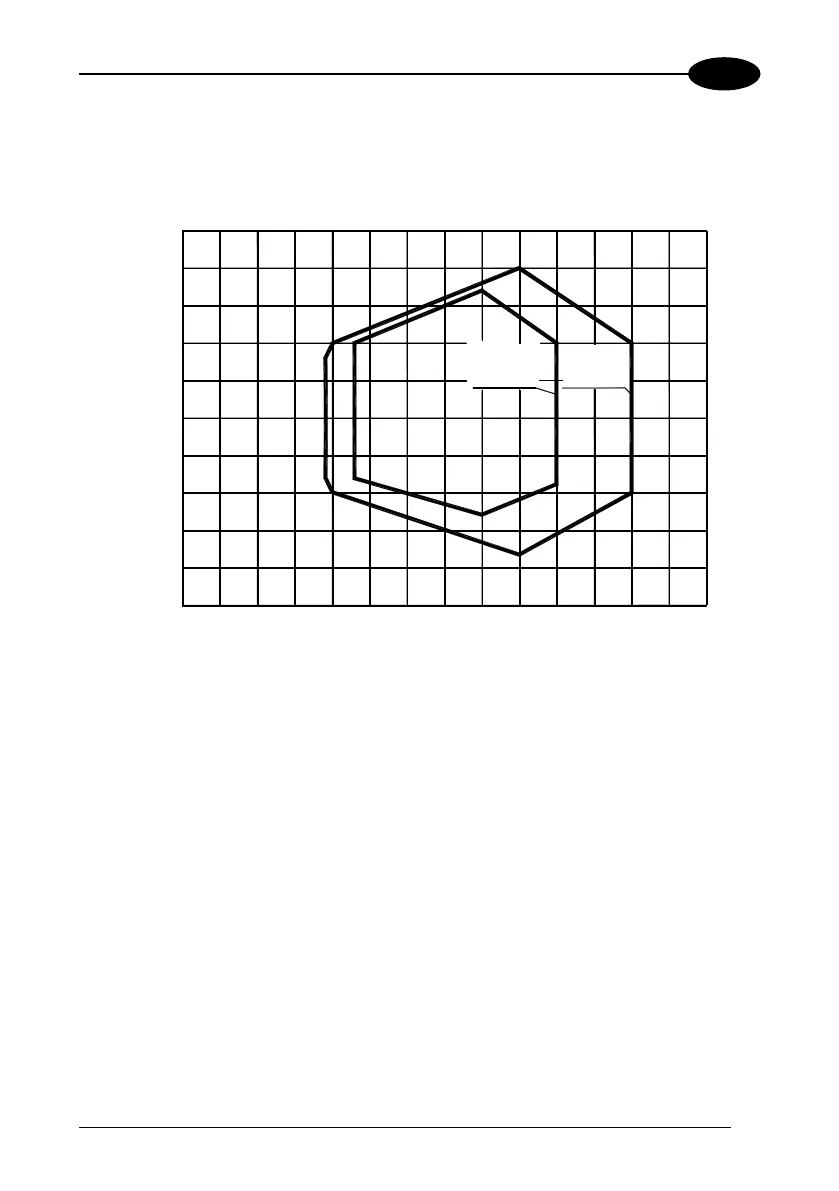

READING FEATURES
4
DS2400N-2200 (Long Reading Range)
0
5
10
15
20
5
10
15
20
cm
10 20 30 40 50 60 70 cm
0
8
in
6
4
2
6
2
4
8
4
8
12
16 20
24
28 in
≥ 0.50 mm
0.35 mm
(20 mils)
(14 mils)
Note: (0,0) is the center of the laser beam output window.
CONDITIONS
Optic Version = Linear
Code = Interleaved 2/5 or Code 39
PCS = 0.90
"Pitch" angle =
0
°
"Skew" angle =
10
°
"Tilt" angle =
0
°
*Code Resolution = High for 0.35 mm (14 mils) codes
= Standard for 0.50 mm (20 mils) codes and greater
*Code Reading Condition = Standard
*Scanning Speed = Speed_3 (800 scans/sec)
* Parameters selectable in Genius™.
63

Datalogic DS2400N Specifications

General

Type	-
Sensor type	Laser
Read rate (max)	1000 reads/s
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Pharmacode, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232, RS-485
Connectivity technology	Wired
Input voltage	10 - 30 V
Power source type	DC
Power consumption (typical)	5 W
Certification	IEC
Product color	Blue, Yellow
Housing material	Aluminum
International Protection (IP) code	IP65
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	34 mm
Width	84 mm
Height	68 mm
Weight	330 g
