SAFERY LASER SCANNER
M12 17+8 pole Master model: 70 Zone Sets
The M12 17+8 pole Master model can monitor up to 70 different areas. To do that:
1. Set the Zone Set No. to “70”. 70 Zone Sets will appear with their relative Area
S
witch combinations.
2. Assign a univocal combination to the Area Switches. The easiest way is to use the
binar
y coding icon to automatically set the input combinations.
NOTE

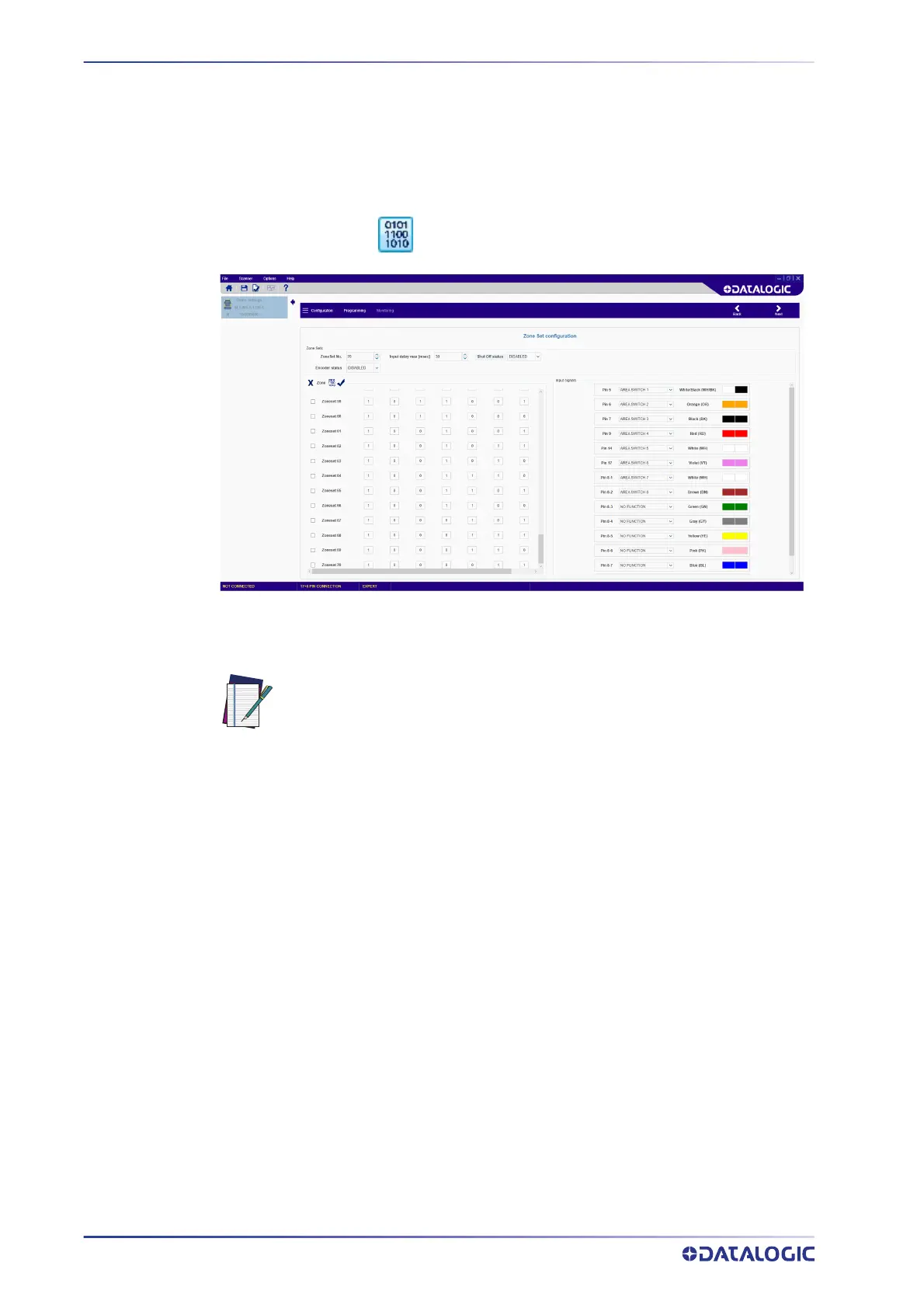

Figure 5 - 70 Zone Sets (Master model)
3. Assign each of the eight Area Switches to an available Input Signal Pin.
The combinations 000 and 111 are not allowed.
