ZONE SETTING CONFIGURATION AND SELECTION
INSTRUCTION MANUAL 57

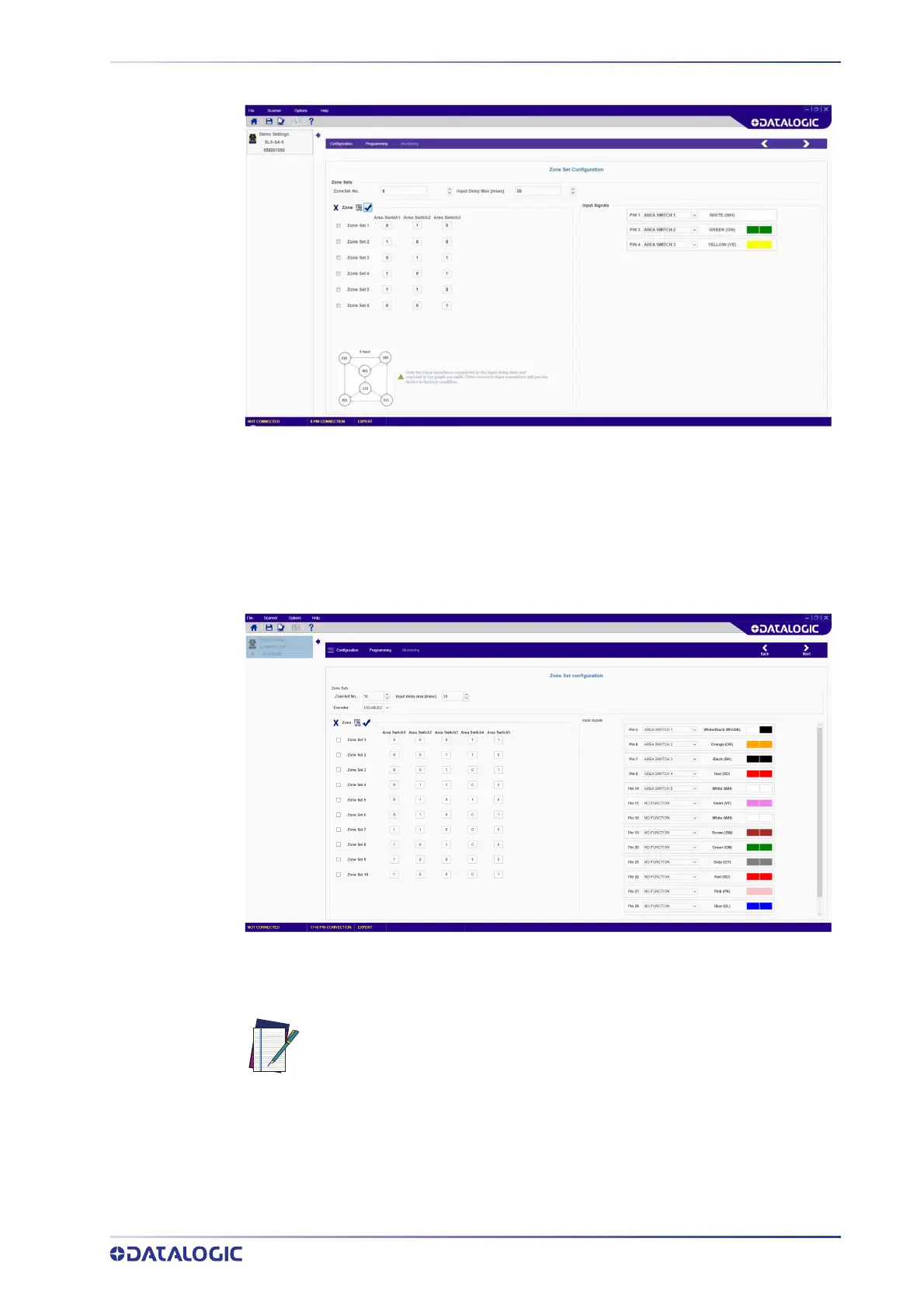

The following figure shows the possible input combinations in case of six Zone Sets.
Figure 3 - Six Zone Sets (Stand Alone model)
M12 12-pole Master model: 10 Zone Sets
The M12 12-pole Master model can monitor up to 10 different areas. To do that, the
user must configure the input combination by selecting the signal “Area Switch”, set five
inputs as Area Switch and then create a sequence of univocal combinations as described
above.
NOTE
Figure 4 - 10 Zone Sets (Master model)
The 8-pole Master model provides for up to three Zone Sets and three con-
figurable inputs.
