Datalogic Magellan 83 Product Reference Guide

6-264 Magellan
®
8300/8400
DataBar Omnidirectional Label ID
This feature specifies an DataBar Omnidirectional label ID to be added to
bar code data.
To set this feature:
To set this feature:
1. Scan the SWITCH bar code.
2. Scan the bar code,
SET DataBar Omnidirectional LABEL ID below.
You’ll need to cover any unused bar codes on this and the facing
page to ensure the scanner reads only the bar code you intend to
scan.
3. Scan the appropriate digits from the keypad in
Appendix C that rep-
resent the desired Label ID characters; entered as two hex pairs. A
table containing the
ASCII Character Set and their corresponding
Hex Values is available in the inside back cover of this manual.
ASCII parameters must be input by scanning a pair of hexadecimal
digits for each character. Thus, to set a two-character value of AB,
bar codes containing the digits ‘4’, ‘1’, ‘4’, and ‘2’ must be scanned.
The selectable range for this option is any hex value from 00 to FF.
4. Complete the programming sequence by scanning the SWITCH
bar code.

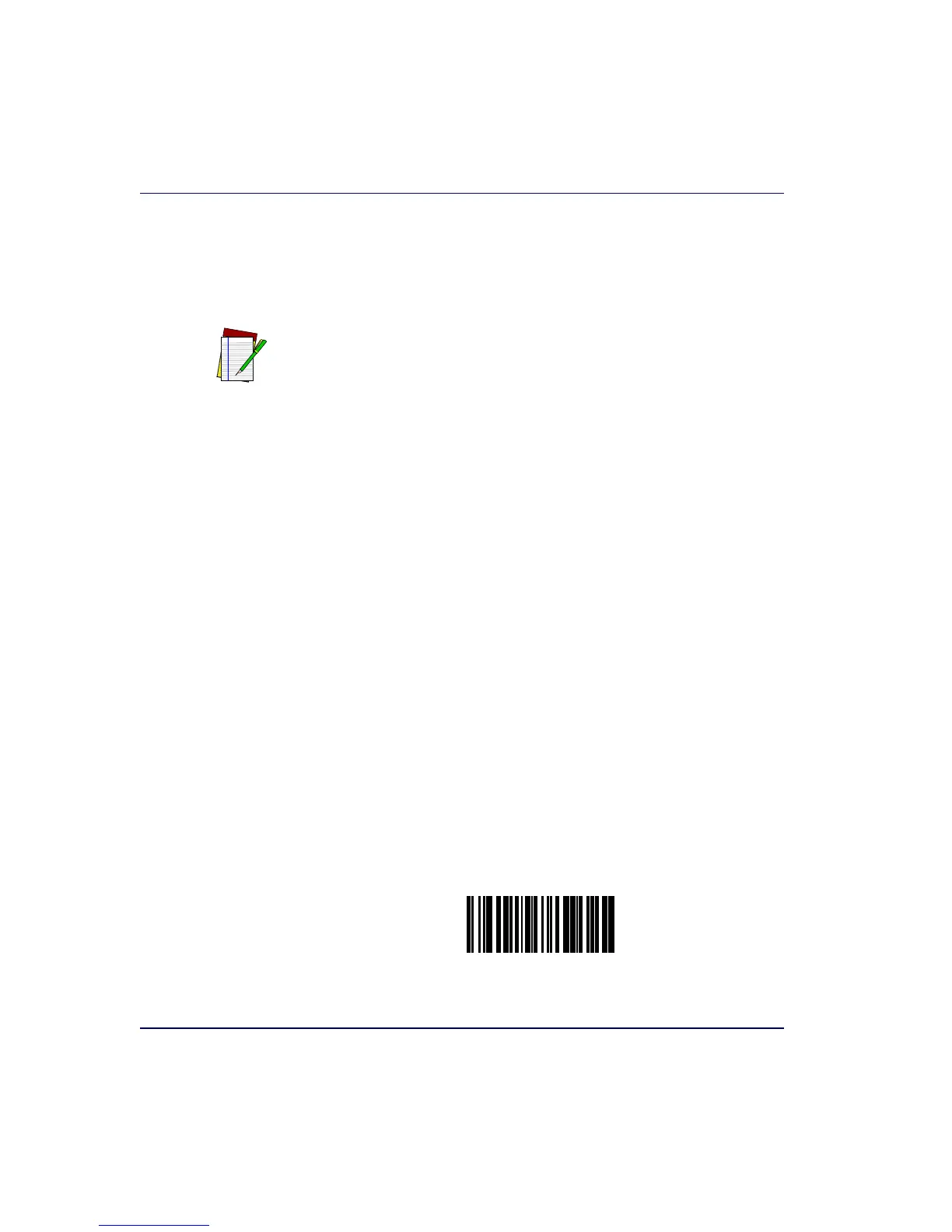

SET DataBar Omnidirectional LABEL ID
NOTE
The programming feature, Label ID Control, designates whether the Label ID
is transmitted as a prefix or suffix or if Label ID is disabled.
